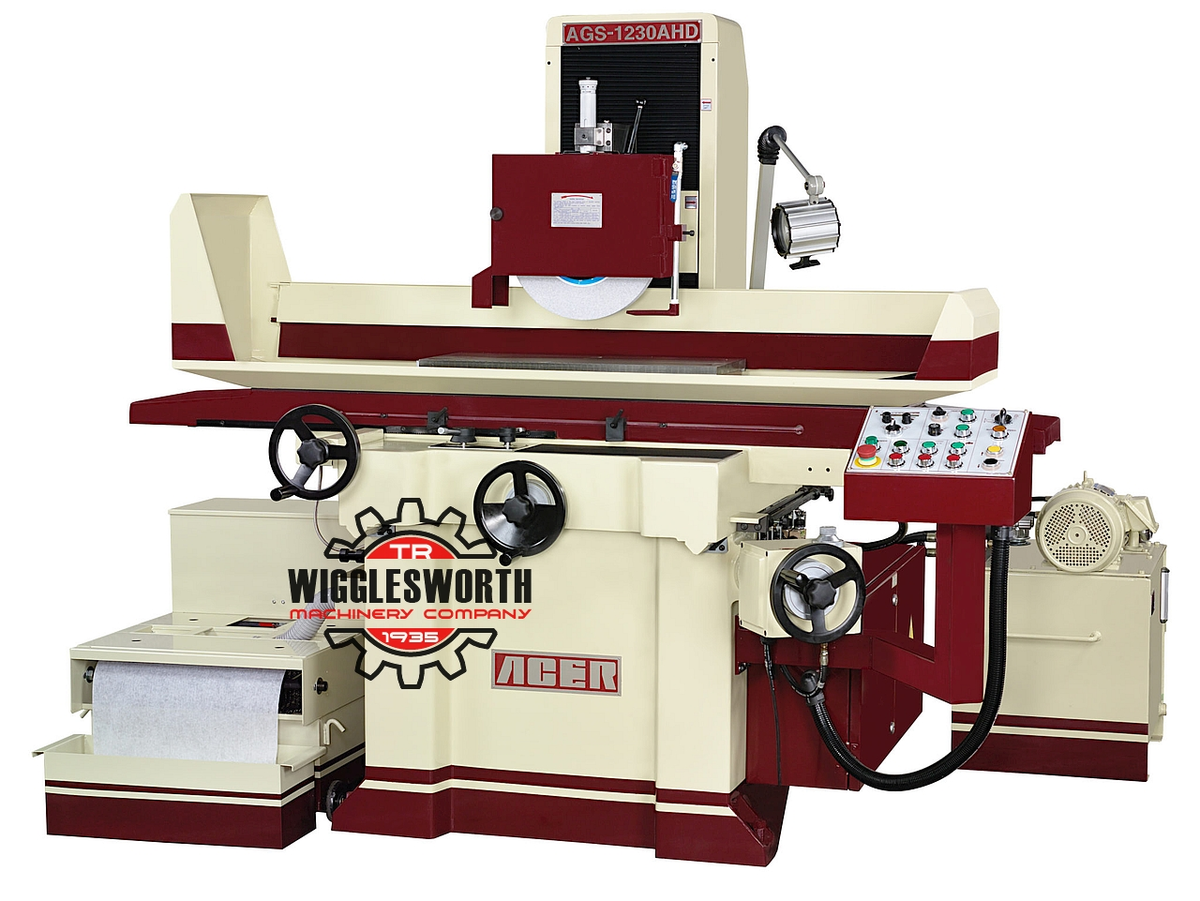

12" x 30", ACER AGS-1230AHD, "NEW" ~In Stock Now~
Coolant W Paper Filter, Electro Mag Chuck W/ Controls, Dresser
FEATURES:
3-AXIS AUTO MOVEMENT
PRECISION "TURCITE-B" WAYS
HYDRAULIC TABLE & ELECTRONIC CROSS-FEED
AUTO INCREMENTAL DOWNFEED
AUTO LUBRICATOR, RAPID ELEVATION
WORKING CAPACITY: 12" X 30"
SPECIFICATIONS:
TABLE WORKING SURFACE............................... 10.2" X 29.5"
TABLE T-SLOT........................................ 1" X 9/16"
MAX. GRINDING SURFACE............................... 12" X 30"
MAX. TABLE TRAVEL................................... 33.1"
MAX. CROSS TRAVEL................................... 13.1"
DISTANCE BETWEEN TABLE SURFACE AND SPINDLE CENTER... 23.6"
VARIABLE TABLE SPEED (CONTROLLED BY HYD. CYLINDER).. 19 - 82 FPM
AUTOMATIC CROSSFEED CARRIAGE MOVEMENT............... 0 - 0.35"
DOWNFEED HANDWHEEL DIAL:
PER GRADUATION...................................... 0.0005"
PER REVOLUTION...................................... 0.1"
CROSSFEED HANDWHEEL DIAL:
PER GRADUATION...................................... 0.005"
PER REVOLUTION...................................... 0.2"
AUTO DOWNFEED MICRO ADJUSTMENT DIAL:
PER GRADUATION...................................... 0.0001"
PER REVOLUTION...................................... 0.01"
LONGITUDINAL TRAVEL FROM-TO......................... 2" - 30"
CROSSFEED TRAVEL FROM-TO............................ 0" - 16"
SPINDLE MOTOR....................................... 5HP
HYDRAULIC PUMP MOTOR................................ 2HP
AUTO CROSSFEED MOTOR................................ 40 W X 6P
AUTO DOWNFEED MOTOR................................. 1/4 HP
GRINDING WHEEL (OD x T x ID)........................ 14" X 1 1/4" X 5"
SPINDLE RPM (HORIZONTAL)............................ 1750 RPM
COOLANT PUMP MOTOR.................................. 1/8 HP
MAX. LOAD CAPACITY IN ADDITION TO MAGNETIC CHUCK.... 836 LBS
MACHINE NET WEIGHT.................................. 4290 LBS
MACHINE GROSS WEIGHT................................ 4950 LBS
PACKING DIMENSIONS (L x W x H)...................... 88.9" X 68.5" X 87"
STANDARD ACCESSORIES: (INCLUDED)
COOLANT SYSTEM WITH PAPER FILTER
MANUAL OVERHEAD PARALLEL DRESSER
12" X 28" ACER ELECTRO-MAGNETIC CHUCK
VARIABLE CHUCK CONTROL MASTER
WHEEL BALANCING BASE
GRINDING WHEEL
MANUAL DIAMOND DRESSER
TOOLBOX W/ TOOLS
WHEEL BALANCING ARBOR
WHEEL FLANGE
HALOGEN WORK LIGHT
SPLASH GUARD
OPTIONAL ACCESSORIES:
"WALKER" 12" X 24" ELECTRO FINE POLE CHUCH W/ CONTROL
COOLANT SYSTEM W/ MAGNETIC SEPARATOR & PAPER FILTER
EXTRA WHEEL FLANGE
"NEWALL" 2-AXIS DRO (16" X 24" TRAVEL, 0.0001" RESOLUTION)
"MAGNESCALE" 2-AXIS DRO (16" X 24" TRAVEL, 0.00002" RES.)
BRACKET & INSTALLATION FEE FOR DRO
***ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
***PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
***MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
