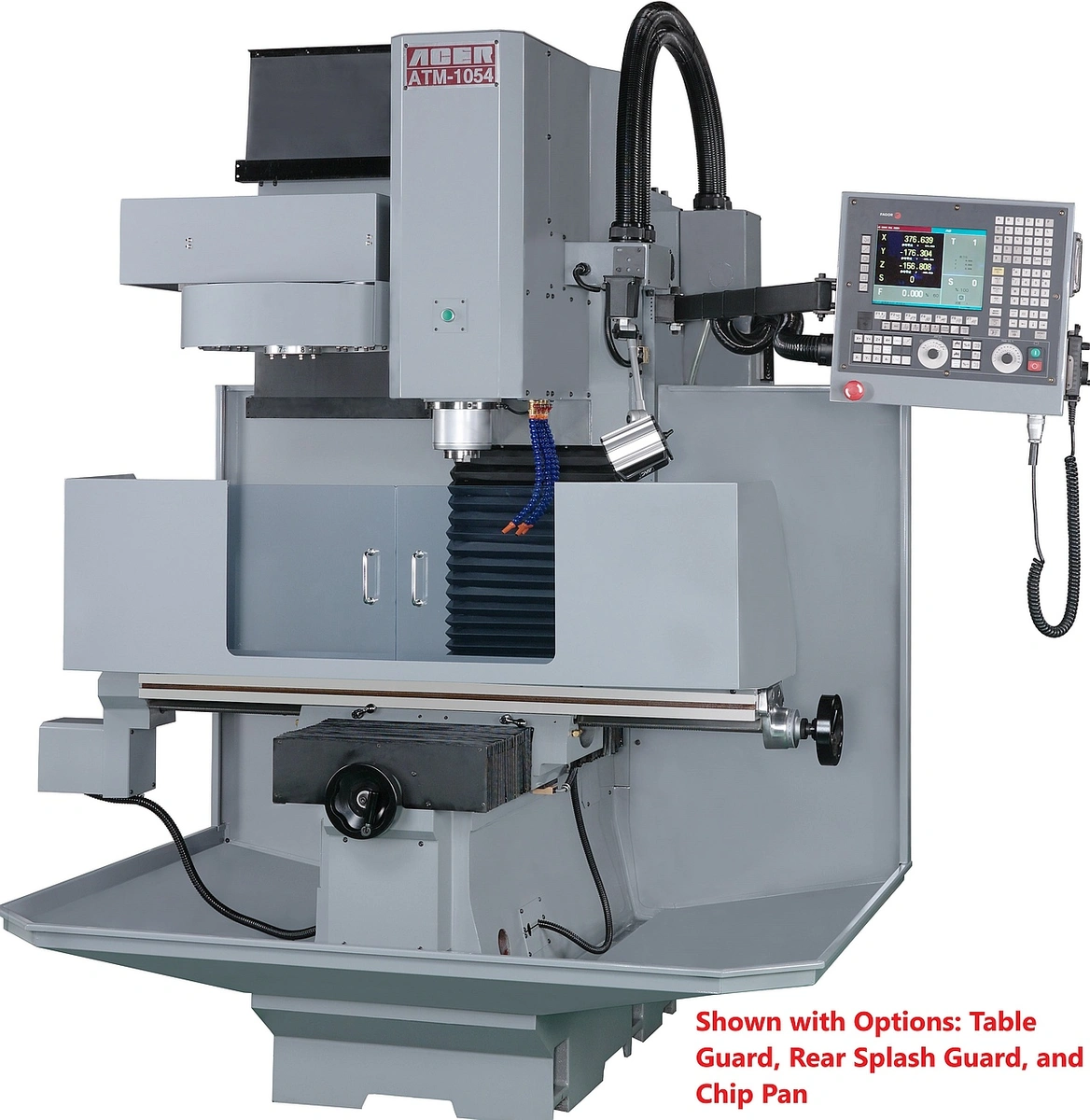

ACER 1054II & 1454II, FANUC 0I-D MATE,
THE PACKAGE INCLUDES:
ACER 1054-II & 1454-II "RIGID HEAD BED-MILL
FANUC 0i-D MATE 3 OR 4 AXIS CNC COTNROL
AUTO LUBE SYSTEM
C5 BALL SCREWS AND DOUBLE END THRUST BALL SCREW BEARING SET
SPECIAL FEATURES:
7.5 HP SPINDLE INVERTER MOTOR
INFINITE 0-6000 RPM SPEED AC FREQUENCY DRIVE
PRECISION 4.72" DIAMETER HARD CHROMED QUILL
SPECIFICATIONS:
HRC 52 DEGREES HARDENED AND GROUND TABLE
TURCITE-B COATED SLIDEWAY AND GIBS TO RECUCE SLIDE-WAY WEAR
PRECISION SPINDLE W/ ABEC-7 HEARINGS
MEEHANITE CASTING
AUTOMOTIVE PAINT
RUGGED 10" X 54" / 14" X 54"
1" DIAMETER BALL SCREWS WITH CASTED MOUNTING BRACKETS
HARDENED & GROUND X,Y, & Z, WAY TO HRC 52 DEGREES W/ TURCITE B WAY
X, Y, Z TRAVEL:
BEDMILL 1054II: 31.5" X 20" X 20.87"
BEDMILL 1454II: 40" X 22.4" X 26.8"
CAT #40 TAPER SPINDLE
MAX. LOAD ON TABLE:
BEDMILL 1054II: 1320 LBS
BEDMILL 1545II: 1960 LBS
MACHINE WEIGHT:
BEDMILL 1054II: 5001 LBS
BEDMILL 1454II: 6327 LBS
CONTROL SOFTWARE FEATURES:
ENHANCED DIAGNOSIS FUNCTIONS TO IDENTIFY CAUSE OF TROUBLE QUICKLY
OPTIMUM FEEDRATE ANCE ACCELERATION CONTROL BY READING BLOCKS IN ADVANCE
OPTICAL FIBER CABLE IS USED ON FANUC SERIAL SERVO BUS (PATENT) FOR
FASTER DATA TRANSMISSION
EMBEDDED ETHERNET: 100 MBPS
PATENTED SPINDLE HRV3 CONTROL FOR HIGH SPEED AND HIGH PRECISION SERVO CONTROL
CNC DATA SUCH AS NC PROGRAMS, PARAMETERS AND SO ON CAN BE UNPUT AND OUTPUT
EASILY AT THE USB INTERFACE ON THE MONITOR
G-CODE AND M-CODE CAPADILITY
FANUC 0i-D MATE CNC'S GIVE YOU 4TH ACIS CAPABILITY OUT OF THE BOX!
CNC OPTIONAL ACCESSORIES
PROGRAMMING SPINDLE RPM
MANUAL PULSE GENERATOR
REMOTE START / STOP SWITCH
HOME POSITION SWITCH FOR HOME & FIXTURE OFFSET
ONE DAY ON-SITE PROGRAM TRAINING (HOTEL & TRANSPORT. NOT INCLUDED)
OPTIONAL ACCESSORIES:
ROTARY TABLE (VERTICAL & HORIZONTAL)
T-SLOT COVER
CHIP PAN
REAR SPLASH GUARD SET (LEFT & RIGHT)
TABLE GUARD
6" ROTARY TABLE W/ INTEGRATED DRIVE & MOTOR
8" ROTARY TABLE W/ INTEGRATED DRIVE & MOTOR
10" ROTARY TABLE W/ INTEGRATED DRIVE & MOTOR
COOLANT SYSTEM
INSTALLATION FEE ON COOLANT SYSTEM
HALOGEN WORK LIGHT OR LED-L95 WORK LIGHT
UPGRADE TO 440V / 3PH TRANSFORMER
***ABOVE PRICES ARE BASED ON FOB PISCATAWAY, NJ
***PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
***MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
