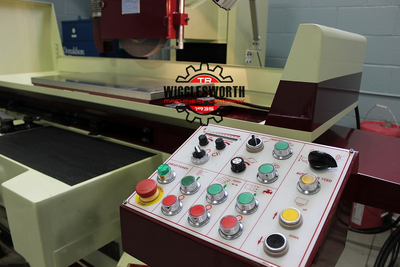

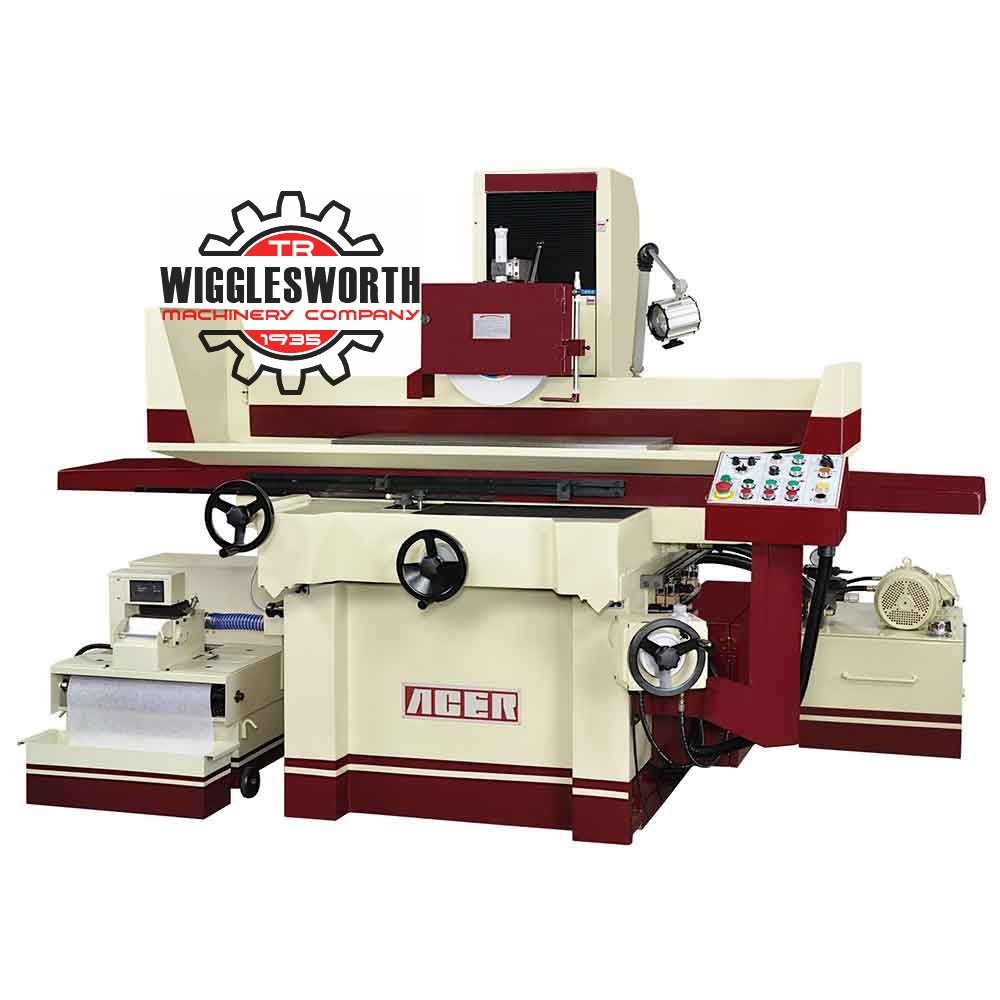

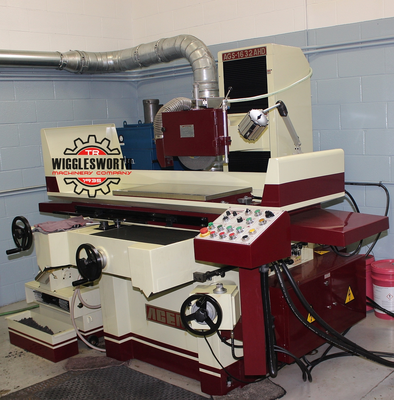

ACER AGS 1632AHD HIGH PRECISION SURFACE GRINDER

FEATURES:
* 3-AXIS AUTO MOVEMENT
* PRECISION "TURCITE B" WAYS; SADDLE MOVEMENT
* HYDRAULIC TABLE & ELECTRONIC CROSSFEED
* AUTO INCREMENTAL DOWNFEED
* AUTO LUBRICATION
* ENHANCED FEATURE: RAPID ELEVATION
* WORKING CAPACITY: 16" X 32"

SPECIFICATIONS:

WORKING SURFACE OF TABLE (W X L)....................... 16" X 32"
MAX. GRINDING (W X L).................................. 16" X 32"
MAX. TABLE TRAVEL...................................... 33 1/16"
MAX. CROSSFEED TRAVEL.................................. 18"
DISTANCE BETWEEN TABLE SURFACE AND SPINDLE CENTER...... 25"
VARIABLE TABLE SPEED BY OIL CYLINDER................... 16 - 80 FPM
AUTOMATIC CROSSFEED CARRIAGE MOVEMENT.................. 0 - 1"
DOWNFEED HANDWHEEL DIAL:
PER GRADUATION......................................... 0.00025"
PER REVOLUTION......................................... 0.05"
CROSSFEED HANDWHEEL DIAL:
PER GRADUATION......................................... 0.001"
PER REVOLUTION......................................... 0.2"
AUTO DOWNFEED MICRO ADJUSTMENT DIAL:
PER GRADUATION......................................... 0.0001"
PER REVOLUTION......................................... 0.01"
LONGITUDINAL TRAFEL FROM-TO............................ 6 - 32"
CROSSFEED TRAVEL FROM-TO............................... 0 - 19"
SPINDLE MOTOR.......................................... 7.5 HP X 4P
HYDRAULIC PUMP MOTOR................................... 3 HP X 6 P
AUTO CROSSFEED MOTOR................................... 1/5 HP X 6 P
GRINDING WHEEL (OD X T X ID)........................... 14" X 5" X 2"
ROTATION SPEED OF SPINDLE (HORIZONTAL)................. 1750 RPM / 60 HZ
FLOW RATE OF COOLANT PUMP.............................. 40 L/MIN
MAX. LOAD CAPACITY IN ADDITION TO MAGNETIC CHUCK....... 1300 LBS
MACHINE WEIGHT......................................... 6160 LBS
SHIPPING DIMENSIONS.................................... 107" X 88" X 90"

PRICE:
ACER AGS-1632AHD SURFACE GRINDER WITH STANDARD ACCESSORIES... $37,700.00

STANDARD ACCESSORIES (INCLUDED):

COOLANT SYSTEM W/ MAGNETIC SEPERATOR & PAPER FILTER
MANUAL OVERHEAD PARALLEL DRESSER

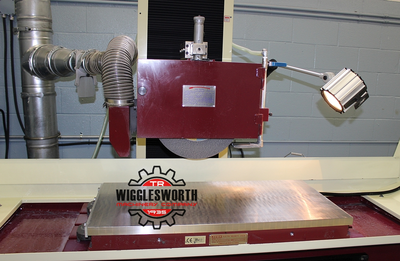

16" X 32" ACER ELECTRO-MAGNETIC CHUCK
VARIABLE CHUCK CONTROL MASTER

WHEEL BALANCING BASE WHEEL BALANCING ARBOR
GRINDING WHEEL WHEEL FLANGE
TABLE WHEEL DRESSER HALOGEN WORK LIGHT
TOOLBOX W/ TOOLS SPLASH GUARD

OPTIONAL ACCESSORIES:

"WALKER" 16" X 32" ELECTRIC LBP CHUCK W/ CONTROL (FINE POLE) $ 12,950.00
EXTRA WHEEL FLANGE.......................................... $ 410.00
"NEWALL" 2-AXIS DRO (20" X 30" TRAVEL, 0.0001 RESOLUTION)... $ 3,200.00
"MAGNESCALE" 2-AXIS DRO (20" X 30" TRAVEL, 0.00002" RES.)... $ 3,300.00
BRACKET & INSTALLATION FEE FOR DRO.......................... $ 450.00

*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
