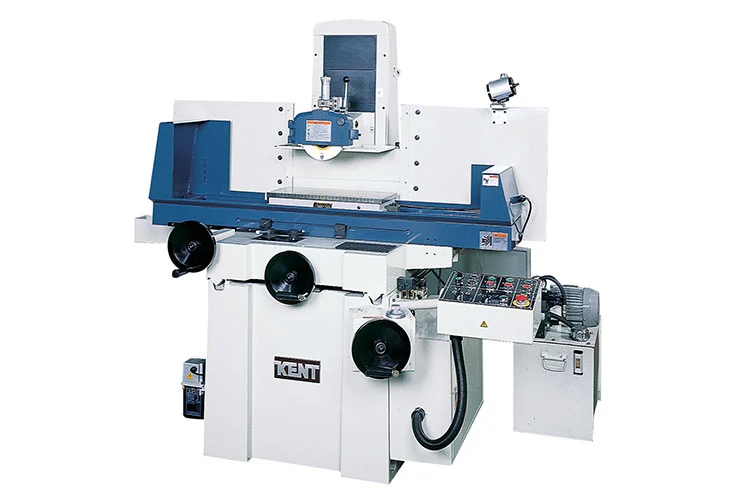

KENT INTERNATIONAL MODEL KGS-1020 WM PRECISION PROGRAMMABLE GRINDER

FEATURES:
V & FLAT TURCITE TABLE WAYS
DOUBLE V TURCITE CROSS WAYS
AUTOMATIC LUBRICATION SYSTEM
Z-AXIS BALLSCREW
SERVO DRIVEN AUTOMATIC DOWN-FEED
10" X 20" ELECTRO-MAGNETIC CHUCK WITH CONSOLE BUILT IN CHUCK CONTROL
HALOGEN LIGHT
MAGNETIC SEPERATOR & COOLANT SYSTEM
FULL LENGTH REAR SPLASH GUARD
TWO FRONT TABLE SPASH GUARD
OVER HEAD PARALLEL DRESSER
FULLY AUTOMATIC CYCLE WITH ROUGH & FINE FEEDING & SPARK-OUT TIME
RETRACT DISTANCE SETTING PLC CROSS FEED
CONSOLE SETTING CROSS FEED TRAVEL
Z-AXIS MANUAL PULSE GENERATOR

*NEW MITSUBISHI CONTROL & TOUCH-SCREEN TECHNOLOGY*

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA................................... 20" X 10"
LONGITUDINAL TABLE TRAVEL.............................. 23"
CROSS FEED SADDLE TRAVEL............................... 11"
DISTANCE SPINDLE CENTER TO TABLE....................... 19.3"
TABLE LOAD INCLUDING MAGNETIC CHUCK.................... 550 LBS
TABLE & CROSS FEED:
T-SLOTS (1)............................................ 1/2"
LONGITUDINAL TABLE SPEED WM1........................... 4 - 82 FPM
WM2........................... 4 - 98 FPM
CROSSFEED ON HANDWHEEL (WM1)........................... 0.001" GRADUATION
REVOLUTION OF HANDWHEEL (WM1).......................... 0.2 IPR
CROSSFEED ON MPG (MW2)................................. 0.00005" GRADUATION
REVOLUTION OF MPG (WM2)................................ 0.005 IPR
AUTO CROSS FEED PER STROKE WM1......................... 0.004" - 0.5"
WM2......................... 0.0002" - 4"
RAPID CROSS FEED WM1................................... 40 IPM
WM2................................... 60 IPM
GRINDING WHEEL:
WHEEL DIMENSION (OD x T x ID).......................... 8" x 1" x 1.25"
SPINDLE SPEED.......................................... 3480 RPM
VERTICAL MOVEMENT:
VERTICAL HANDWHEEL..................................... 0.00005" GRADUATION
VERTICAL HANDWHEEL REVOLUTION.......................... 0.005 IPR
AUTO DOWN FEED INCREMENT (MINIMUM)..................... 0.00005"
RAPID ELEVATING........................................ 12 IPM
MOTOR:
SPINDLE MOTOR.......................................... 3 HP
HYDRAULIC MOTOR........................................ 1 HP
MACHINE DIMENSIONS:
HEIGHT................................................. 70"
DEPTH.................................................. 83"
WIDTH.................................................. 71"
MACHINE NET WEIGHT..................................... 3150 LBS

STANDARD ACCESSORIES: (INCLUDED)

* WHEEL BALANCING BASE * WHEEL BALANCING ARBOR
* GRINDING WHEEL * WHEEL FLANGE
* TABLE DRESSER * HALOGEN WORK LIGHT

PRICES: F.O.B. SOUTH ELGIN IL (SUBJECT TO AVAILABILITY)

OPTIONAL ACCESSORIES:

MAGNETIC SEPARATOR & PAPER FILTER COOLANT SYSTEM M2
EXTRA WHEEL FLANGE
TABLE SPLASH GUARD (REAR)

TERMS:

1. DETAILED SPECIFICATIONS - SEE CATALOGUE
2. WARRANTY OF MECHANICAL PARTS ARE ONE YEAR BASED ON ONE SHIFT NORMAL
WORKING CONDITIONS EXCLUDING MISUSE BY ULTIMATE CUSTOMERS
3. WARRANTY OF ELECTRICAL PARTS ARE NINTEY DAYS
4. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER AND
CLAIMS FOR LOSS OR DAMAGE MUST BE HANDELED BY PURCHASE AGAINST CARRIER
5. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
6. PRICES ARE BASED ON F.O.B. OUR WAREHOUSE IN SOUTH ELGIN, IL
7. QUOTATION WILL VALID FOR 2 WEEKS
