ACER ATL 2140, FAGOR 8055i/A-TC
FEATURES:
3" (85MM) SPINDLE BORE WITH D1-8 CAMLOCK SPINDLE NOSE
10 HP SINGLE SPEED SPINDLE MOTOR FOR 3 PHASE 60 HZ WIRING
HARDENED AND GROUND MEEHANITE CASTING BEDWAY
HARDENED AND GROUND GEARS AND SPINDLE
AUTOMATIC 3-SPEED SPINDLE RPM
FAGOR 8055i/A-TC CNC CONTROL
CONSTANT SURFACE SPEED
MANUAL - TEACH - CNC MODES
DUAL MPG HANDWHEEL
C3 BALL SCREW ON X-AXIS
C5 BALL SCREW ON Z-AXIS
LASER CALIBRATION ON ALL AXES
SPECIFICATIONS:
WORKING CAPACITY:
SWING OVER BED......................................... 24.80"
SWING OVER CROSS SLIDE................................. 15.75"
CENTER HEIGHT.......................................... 12.40"
WIDTH OF BED........................................... 13.78"
HEADSTOCK AND MAIN SPINDLE:
RANGE OF SPINDLE SPEEDS:
HIGH.................................................. 1500 - 331 RPM
MEDIUM................................................ 330 - 93 RPM
LOW................................................... 92 - 20 RPM
SPINDLE NOSE, INTERNAL TAPER........................... A2-11; 1:20
SPINDLE BORE........................................... 4.13"
CROSS-SLIDE AND CARRIAGE:
CROSS-SLIDE TRAVEL (X-AXIS)............................ 13.78"
LONGITUDINAL TRAVEL (Z-AXIS)........................... 71.26"
DIAMETER OF BALL SCREW (X-AXIS)........................ 0.98"
DIAMETER OF BALL SCREW (Z-AXIS)........................ 1.57"
RAPID TRAVEL SPEED (X-AXIS)............................ 196.85 IPM
RAPID TRAVEL SPEED (Z-AXIS)............................ 275.59 IPM
TOOL SHANK............................................. 0.98"
BORING BAR DIAMETER.................................... 1.57"
TAILSTOCK:
QUILL DIAMETER......................................... 2.95"
QUILL TRAVEL........................................... 6.69"
QUILL TAPER............................................ MT #5
MOTOR:
MAIN SPINDLE........................................... 15 HP
FORCED LUBE PUMP FOR HEADSTOCK......................... 1/4 HP
COOLANT PUMP........................................... 1/6 HP
APPROX. TABK CAPACITY.................................. 23.78 GAL
APPROX. MACHINE WEIGHT................................. 8360 LBS
PACKING DIMENSIONS (L x W x H)......................... 152" x 80.71" x 83.46"
STANDARD ACCESSORIES (INCLUDED):
HALOGEN WORK LIGHT COOLANT SYSTEM
TOOL BOX W/ TOOLS AUTOMATIC LUBRICATION SYSTEM
FULLY ENCLOSED SPLASH GUARD MANUAL TAILSTOCK
CONTROL CAPABILITIES:
USE AS DRO IN MANUAL MODE POWERFUL CNC FULL AUTO MODE
ELECTRIC HANDWHEEL FOR SEMI-AUTO MODE NO PROGRAMMING EXPERIENCE REQUIRED
PROGRAM IN TEACH MODE CONVERSATIONAL OR G-CODE PROGRAMMING
PROGRAM W/ CANNED CYCLES MINIMUM SET-UP TIME
PRICE:

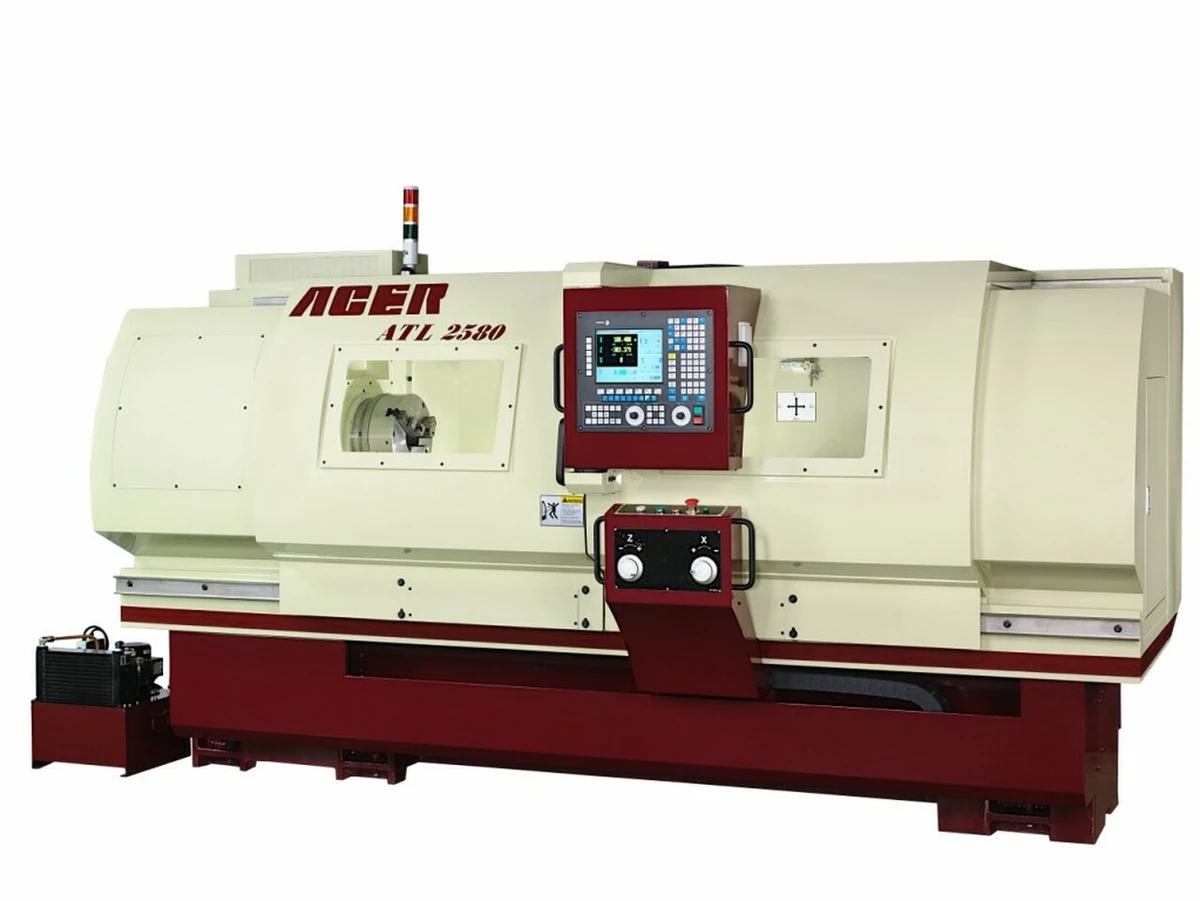

ACER ATL 2580 FLAT BED TEACH CNC LATHE
OPTIONAL ACCESSORIES:
4" SPINDLE A1-11 UPGRADE
6" SPINDLE A2-11 UPGRADE
UPGRADE TO 15 HP MOTOR (FOR 4" / 6" SPINDLE BORE)
10" 3-JAW SCROLL CHUCK (SK TYPE) W/ 3.5" THR. HOLE
12" 3-JAW SCROLL CHUCK (SK TYPE) W/ 4.13" THR. HOLE
16" 3-JAW SCORLL CHUCK (SK TYPE) W/ 6.3" THR. HOLE
12" 4-JAW INDEPENDENT CHUCK (D1-8)
16" 4-JAW INDEPENDENT CHUCK (D1-8)
20" 4-JAW INDEPENDENT CHUCK (D1-8/A2-11)
STEADY REST W/ ROLLERS (3.15" - 11.02")
FOLLOW REST (1.18" - 6.69")
"ALORIS" TOOL POST & 4 HOLDERS
"ALORIS" TOOL POST & 6 HOLDERS
FOUR WAY TOOL POST - MANUAL
V8 HYDRAULIC & TURRET (MODEL: LS160)
CHIP CONVEYOR
PACKAGING FOR CHIP CONVEYOR
SPINDLE OIL COOLER
GAP TYPE BED
LIVE CENTER MT#5
UPGRADE TO 440V / 3-PHASE
FAGOR PROGRAM TRAINING (TRANSPORTATON & ACCOMIDATION EXTRA)
