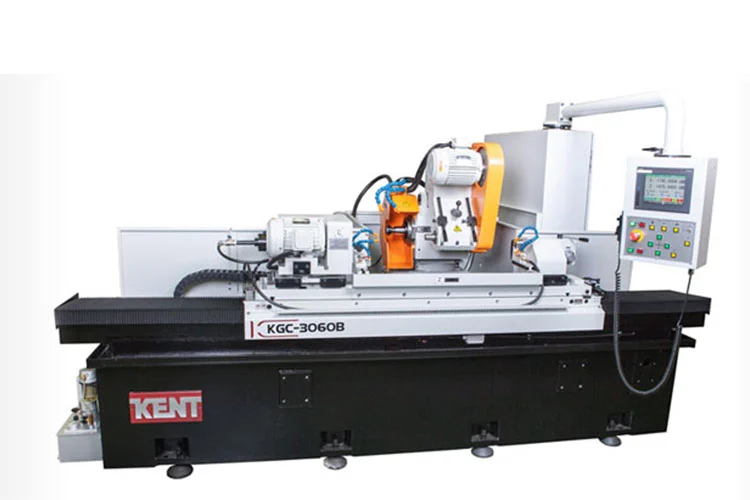

12" x 23", KENT, No. KGC-3060
FEATURES:
VARIABLE SPINDLE RPM
SERVO CONTROLLED X & Z AXIS WITH BALL-SCREW
RE-CIRCULATING AUTO LUBRICATOR
ROLLER LINEAR GUIDE ON X AXIS
TURCITE-B SLIDE WAY ON Z AXIS
AUTO DRESSING AND COMPENSATION
SPECIFICATIONS:
CAPACITY:
SWING OVER TABLE....................... 12.6"
DISTANCE BETWEEN CENTERS............... 23.6"
MAX. GRINDING DIAMETER................. 11.8"
MAX. WORKPIECE WEIGHT BETWEEN CENTERS.. 330.6 LBS
X-AXIS:
MAX. TRAVEL............................ 14.5"
SPEED.................................. 26 FT/MIN
RESOLUTION / IN DIAMETER............... 0.00005"
Z-AXIS:
MAX. TRAVEL............................ 34.6"
SPEED.................................. 33 FT/MIN
RESOLUTION............................. 0.00005"
SWIVEL ANGLE OF TABLE (CCF/CW)......... 11/6 DEG.
WHEELHEAD:
WHEEL SPINDLE MOTOR.................... 7.5 HP
WHEEL DIAMETER......................... 16" x 2" x 5"
MIN. WHEEL DIAMETER.................... 11.4"
MAX. CIRCUMFERENTIAL SPEED............. 115 FT/S
INTERNAL GRINDING (OPTIONAL):
WHEEL SPINDLE MOTOR.................... 2 HP
LOCATING BORE.......................... 3.1"
SPINDLE SPEED.......................... 20000/30000/40000 RPM
WORKHEAD:
SPINDLE SPEED.......................... 0 - 600 RPM
FITTING TAPER.......................... MT 5
SWIVEL ANGLE (CCW/CW).................. 90/30 DEG.
MOTOR.................................. 2 HP
TAILSTOCK:
TRAVEL................................. 1.4"
FITTING TAPER.......................... MT 4
WEIGHT & DIMENSIONS:
SPACE OCCUPIED (L x W)................. 124" X 126"
NET WEIGHT / GROSS WEIGHT.............. 10,361 / 10,802 LBS
STANDARD ACCESSORIES (INCLUDED):
WHEEL BALANCING BASE WHEEL BALANCING ARBOR
GRINDING WHEEL WHEEL FLANGE
TABLE DRESSER TOOL BOX & TOOLS
MAGNETIC SEPERATOR & PAPER FILTER COOLANT SYSTEM
ENCODER & MANUAL PULSE GENERATOR
SPINDLE MOTOR FREQUENCY INVERTER
***ADVANCED MITSUBISHI CONTROL & TOUCH-SCREEN TECHNOLOGY***
OPTIONAL EQUIPMENT:
EXTRA WHEEL FLANGE
3-JAW CHUCK
3-POINT STEADY REST
INTERNAL GRINDING (ID) ATTACHMENT W/ 20,000 RPM SPINDLE
INTERNAL GRINDING (ID) ATTACHMENT W/ 30,000 RPM SPINDLE
INTERNAL GRINDING (ID) ATTACHMENT W/ 40,000 RPM SPINDLE
INTERNAL GRINDING (ID) ATTACHMENT W/ 50,000 RPM SPINDLE
FULL ENCLOSURE GUARDING
NOTES:
DETAILED SPECIFICATION - SEE CATALOG.
WARRANTY OF MECHANICAL AND ELECTRICAL PARTS ARE ON YEAR BASED ON ONE SHIFT
NORMAL WORKING CONDITION EXCLUDING MISUSE BY ULTIMATE CUSTOMERS.
OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER AND CLAIMS FOR
LOSS OR DAMAGED MUST BE HANDLED BY PURCHASER AGAINST CARRIER.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
PRICES ARE BASED ON F.O.B. OUR WAREHOUSE IN CALIFORNIA
