ACER BED-MILL 1054II "Swivel Head" W/ “FAGOR” 8055i / FL-MC 3 or 4-AXIS CNC CONTROL

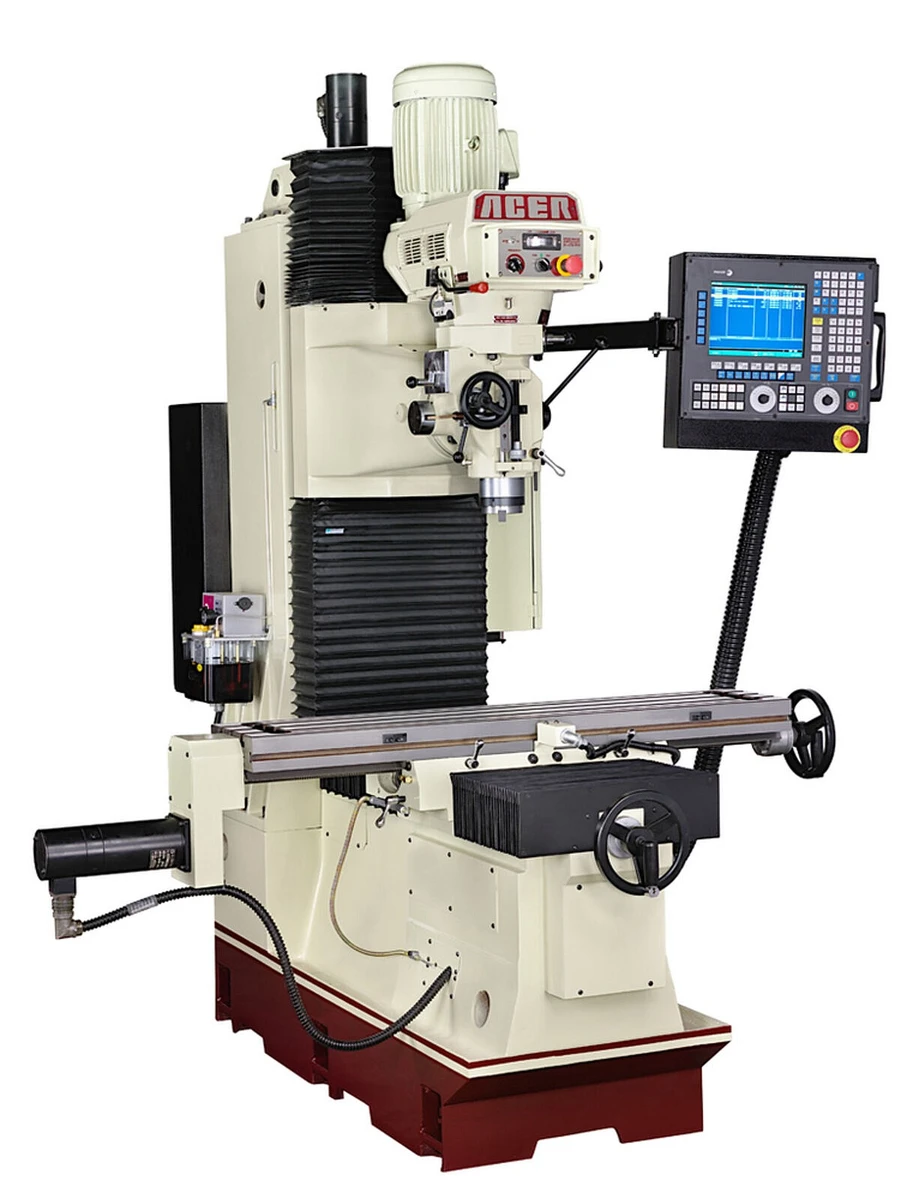

Acer 1054 "Swivel Head" Bed-Mill
FAGOR 8055i / Fl-Mc 3 Or 4 Axis CNC Control

Standard Features:
• Auto Lube System
• C5 Ball Screws And Double End Thrust Ball Screw Bearing Set
• 5 Hp Spindle Inverter Motor
• Infinite 0-4500 Rpm Speed
• "Toshiba" Vector Type Frequency Inverter
• Precision 4" Diameter Hard Chromed Quill At HRC 62 Deg.
• HRC 52 Degrees Hardened And Ground Table
• Turcite-B Coated Slideway And Gibs Prolong Machining Life
• Meehanite Casting
• Automotive Paint
• Class 7 Precision Spindle Bearings
• Turcite-B Lining Saddle Ways To Reduce Slide-Way Wear
• Hardened & Ground X,Y, & Z, Table Top And Bottom To HRC 52 Degrees
• 1" Diameter Ball Screws With Casted Mounting Brackets

Specifications:
Table
• Table size..........10" x 54"
• T-slots..........3 x 5/8"
• Table load..........1320 lbs
Travel
• X axis/rapid feed..........31.5 / 200imp
• Y axis/rapid feed..........20" / 200imp
• Z axis/rapid feed..........20.87 / 200ipm
• Spindle nose to table..........5.31" ~ 25.39"
• Spindle center to column face..........23.62"
Spindle
• Quill diameter..........4"
• Quill travel..........5"
• Spindle taper..........Cat#40
• Spindle speed high/low rpm..........500~4500 / 50~500
• Spindle rotation angle..........90 degrees
Motor
• Spindle..........5 hp
• Axis servo motors (X, Y, Z)..........DC 31.3 in-lb
• Coolant pump (optional)..........1/8 hp
• Lubrication pump..........80 watts
Power:
• Control..........110v / 1ph / 20a
• Machine..........6.35 hp
Dimensions:
• Footprint of machine..........76.44" x 78.74" x 100"
• Length with electrical door open..........103.15"
• Max machine operating space..........109" x 104"x 98"
• Weight..........4558 lbs

Control Software Features:
• *Interactive Icon Based Conversational Programming System
• *One Screen - One Operation, Fill In The Blanks & Press Cycle To Start
• *No Limit To The Number Of Programs In Memory
• *Built-In Mini Cad-Cam System
• *11" Color Tft LCD Screen
• *Numerous Canned Cycles In Conversational And G-Code
• *Flash Memory (1 Mb Flash Ram / 512 Mb Cf); 2 Gb Cf Optional (P.O.R.)
• *USB Memory Port Standard; Ethernet Optional (P.O.R.)
• *Windnc (Dxf Converter) And Engraving. Optional (P.O.R.)
• *Smart Z-Axis Quill For CNC And Manual Mode With Scale-Fed DRO Feedback

CNC Optional Accessories:
• Programmable Spindle Rpm
• Manual Pulse Generator
• Remote Start / Stop Switch
• Home Position Switch For Home & Fixture Offset
• One Day In-Site Program Training
• (Accomodations & Transportation Is Not Included)

Optional Accessories:
• Maxi-Torque Automatic Air Power Draw Bar & Safety Ring
• Installation Fee On Power Draw Bar & Safety Ring
• 12" Rotary Table (Vertical & Horizontal)
• T-Slot Cover
• Chip Pan
• Rear Splash Guard Set (Left & Right)
• Installation Fee of Chip Pan and Rear Splash Guard
• Table Guard
• Clamping Kits (52 Pieces)
• 6" Milling Vise
• Coolant System
• Installation Fee On Coolant System Integrated With CNC Control
• 8" Rotary Table W/ Integrated Drive & Motor (Special Order)
• Tailstock For Rotary Table (Special Order)
• Upgrade To 440v/3-Ph
