FEATURES:
* 2.16" (55mm) SPINDLE BORE WITH D1-6 CAMLOCK NOSE SPINDLE
* 7.5 HP SPINDLE MOTOR FOR 3 PHASE 60 HZ WIRING
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY, GROUND GEARS AND SPINDLE
* SPEED RANGE (2 SPEED): L: 93 - 750 RPM / H: 751 - 2600 RPM
* BED WIDTH: 11.81" (300mm)
* "FAGOR" 8055 i/A-TC CNC CONTROL
* CONSTANT SURFACE SPEED
* MANUAL - TEACH - CNC MODES
* DUAL MPG HANDWHEEL
* C3 BALL SCREW ON X-AXIS & C5 BALL SCREW ON Z-AXIS
* LASER CALIBRATION ON ALL AXES

SPECIFICATIONS:
GENERAL CAPACITY:
SWING OVER BED......................................... 17.32"
SWING OVER CROSS SLIDE................................. 9.45"
DISTANCE BETWEEN CENTERS............................... 39.37"
WIDTH OF BED........................................... 11.81"
HEADSTOCK:
SPINDLE NOSE........................................... D1-6
SPINDLE BORE........................................... 2.16"
SPINDLE SPEED (2-SPEED)................................ 93 - 750 / 751 - 2600 RPM
SPINDLE TAPER.......................................... MT #6
TAILSTOCK:
TAILSTOCK QUILL TRAVEL................................. 5.91"
TAILSTOCK QUILL DIAMETER............................... 2.05"
TAPER OF TAILSTOCK CENTER.............................. MT #4
POWER:
MAIN SPINDLE MOTOR..................................... 7.5 HP
COOLANT PUMP........................................... 1/8 HP
APPROX. MACHINE WEIGHT................................. 3,850 LBS
APPROX. SHIPPING WEIGHT................................ 4,180 LBS

STANDARD ACCESSORIES (INCLUDED):
LED WORK LIGHT COOLANT SYSTEM
TOOL BOX WITH TOOLS AUTOMATIC LUBRICATION SYSTEM
FULLY ENCLOSED SPLASH GUARD MANUAL TAILSTOCK

CONTROL CAPABILITIES:
USE AS A DRO FOR MANUAL MODE POWERFUL CNC FULL AUTO MODE
NO PROGRAMMING EXPERIENCE REQUIRED ELECTRIC HANDWHEEL FOR SEMI-AUTO MODE
PROGRAM IN TEACH MODE CONVERSATIONAL OR G-CODE PROGRAMMING
PROGRAM W/ CANNED CYCLES MINIMUM SET-UP TIME

PRICE:

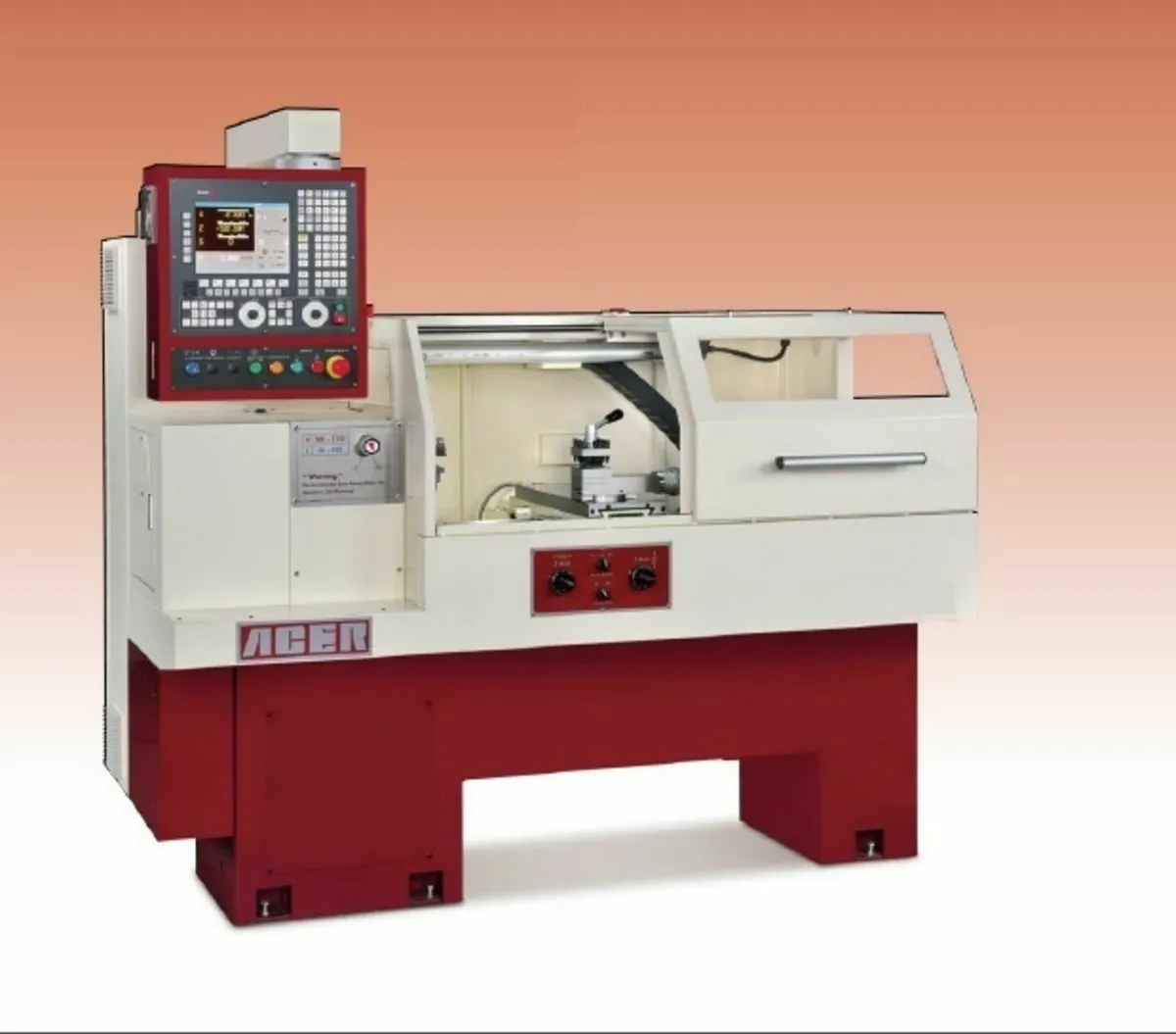

ACER ATL 1740 FLAT BED CNC TEACH LATHE

OPTIONAL ACCESSORIES:
10" 3-JAW INDEPENDENT CHUCK (D1-6) W/ DIRECT MOUNT
12" 4-JAW INDEPENDENT CHUCK (D1-6) W/ DIRECT MOUNT
STEADY REST W/ ROLLERS
FOLLOW REST
FACE PLATE (16")
"ALORIS" TOOL POST & 4-HOLDER SET (#3 - BS)
"ALORIS" TOOL POST & 6-HOLDER SET (#3 - SET)
"DORIAN" TOOL POST & 4-HOLDERS
FOUR WAY TOOL POST
H4 ELECTRIC TOOL POST
UPGRADE TO 440V / 3 PHASE
ON-SITE TRAINING (ACCOMIDATIONS & TRANSPORTATION EXTRA)

PAYMENT TERMS:
30% DOWN PAYMENT WITH PURCHASE ORDER
BALANCE NET 30 UPON CREDIT APPROVAL

*** ALL PRICES ABOVE ARE BASED ON FOB PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
