ACER "E-MILL" 5HP REPLACEMENT MILLING HEAD

5HP EFFICIENT BALDOR MOTOR FOR HIGH TORQUE OUTPUT WITH NST 40 SPINDLE:

OUTSTANDING FEATURES & OPTIONAL EQUIPMENT:

AVAILABLE IN: BRIDGEPORT GRAY COLOR
FITS BRIDGEPORT & MOST TAIWANESE IMPORTS

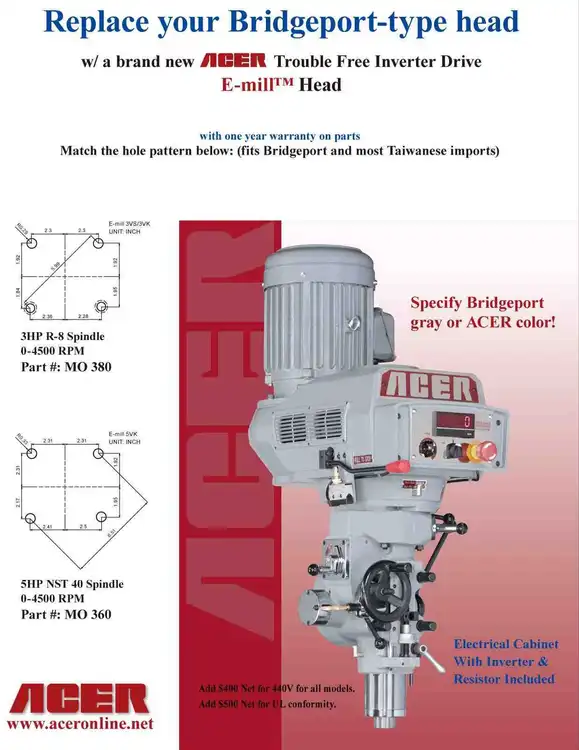

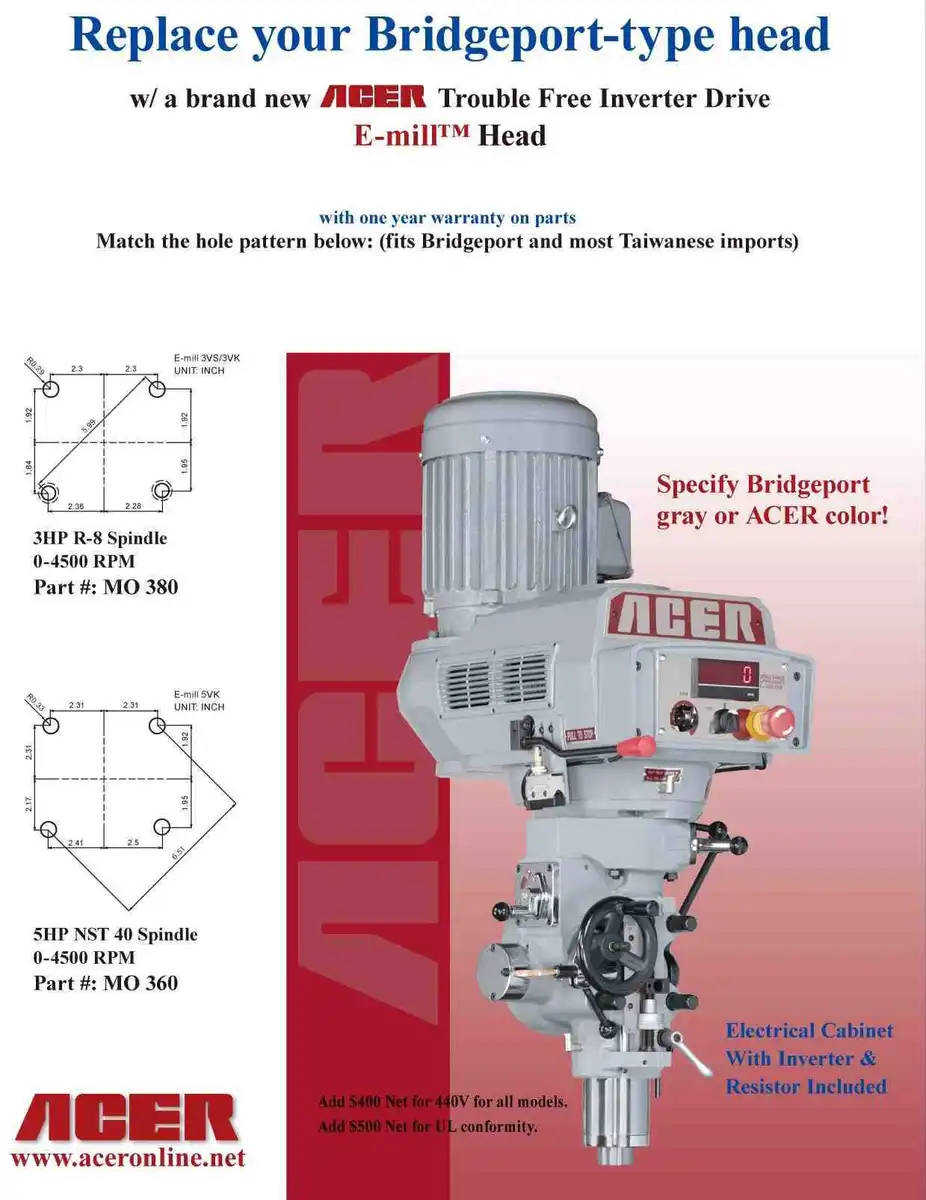

MUST MATCH BOLT PATTERN AS SHOWN ON DIAGRAHM PROVIDED
VECTOR (CNC TYPE) A.C. FREQUENCY DRIVE
INTINITE 0-4500 RPM CONSTANT SPINDLE SPEED, CHANGE IN NO TIME (04-Sec.)
MACHINE CAN RUN ON SINGLE OR THREE PHASE WITHOUT CHANGING THE WIRING
LOW MAINTENANCE & DOWN TIME COST BECAUSE NO PLASTIC INSERT, KEY & MOVING
PULLEY. NO RPM CHANGE BREAK DOWN, BUT ACCURATE READON ON RPM TO PROLONG
TOOL LIFE
ELECTRONIC & MECHANICAL BRAKE FOR FAST SPINDLE STOP
NO BELT SLIPPAGE FOR HIGH EFFICIENT TORQUE OUTPUT
BORING & TAPPING APPLICATION
SAVE ENERGY COSTS UP TO 35%

OPTIONAL KNUCKLE ADJUSTMENT GEAR AVAILABLE FOR $65
OPTIONAL UPGRADE TO 440V (MUST SPECIFY) FOR $400

1 YEAR WARRANTY ON PARTS

*** PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
