NEW 4" TOS W100A TABLE TYPE HORIZONTAL BORING, MILLING & DRILLING MACHINE "IN STOCK NOW"
Have one to sell?
ConditionNew
498 available
New
In stock now: TOS 4" W 100A Horizontal Boring, Milling & Drilling Machine. Key specs include 3.9" spindle, 63" table travel, 44" head travel, 14 hp, and a robust 49" x 49" rotary table. Features advanced 5-axis DRO and more. Contact us for details.
1 YEAR WARRANTY
CE CERTIFICATE
MODEL: W100A
SPECIFICATIONS:
• SPINDLE DIAMETER.................... 3.9"..........100mm
• SPINDLE TAPER....................... ISO 50..........ISO 50
• SPINDLE TRAVEL (W).................. 35"..........900mm
• TABLE CROSS TRAVEL (X).............. 63"..........1600mm
• HEAD VERTICAL TRAVEL (Y)............ 44"..........1120mm
• SADDLE TRAVEL (Z)................... 49"..........1250mm
• SPINDLE SPEEDS...................... 7-1120 RPM..........7-1120 RPM
• WORK TRAVERSE....................... 35 IPM..........18 - 900 mm/min
• RAPID TRAVERSE...................... 110 IPM..........2800 mm/min
• MAIN MOTOR POWER.................... 14 HP..........11 kW
• TABLE SIZE (ROTARY) B............... 49" X 49"..........1250 X 1250 mm
• POWER............................... TRANSFORMER REQUIRED
• WEIGHT CAPACITY..................... 6620 LB ..........3000 kg
• DIMENSION OF MACHINE................ 264.1 x 135 x 118"..........6710 x 3450 x 3000mm
• MACHINE OVER ALL WEIGHT............. 30,860 LBS..........14,000 kG
FEATURES:

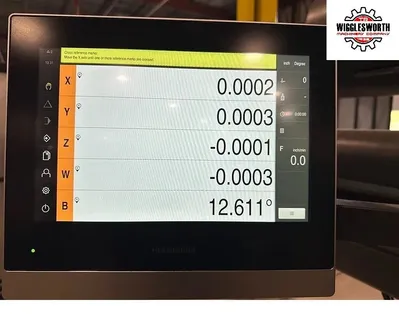

• NEW 5 AXIS DRO HEIDENHAIN
• NEW SPINDLE AND SPINDLE BEARINGS
• NEW CENTRAL LUBRICATION SYSTEM FOR ALL AXES
• NEW TELESCOPIC COVERS
• 24 INCH FACING HEAD WITH MAXIMUM FACE MILLING DIAMETER 35.5"
• BACKREST (TAILSTOCK) WITH 100mm BUSHING
• FACING HEAD
• BUILT-IN ROTARY TABLE WITH INCREMENTAL ROTARY ENCODER AND 4x90 DEG. OPTICAL
• READOUT
• B-AXIS MEASUREMENT USES HEIDENHAIN POSITIP 880 (X,Y,Z)
• ALL NEW DOCUMENTATION
• CE ELECTRICAL SPECIFICATIONS
SPECIFICATIONS ARE NOT GUARANTEED; SUBJECT TO CONFIRMATION. MACHINE OFFER IS
SUBJECT TO PRIOR SALE
Note: THIS DOCUMENT IS FOR ADVERTISEMENT ONLY:
CONTACT US TO SPEAK TO A SALES PROFESSIONAL TO RECEIVE A DETAILED PRICE
PROPOSAL OUTLINING THE FULL SCOPE OF MACHINE.
In stock now: TOS 4" W 100A Horizontal Boring, Milling & Drilling Machine. Key specs include 3.9" spindle, 63" table travel, 44" head travel, 14 hp, and a robust 49" x 49" rotary table. Features advanced 5-axis DRO and more. Contact us for details.
Experience precision with the new 4" TOS W 100A Horizontal Boring Machine, featuring a 3.9" spindle, 63" X-travel, and 44" Y-travel. Powered by 14 hp, it offers RPM speeds up to 1,120. Equipped with cutting-edge Heidenhain 5-Axis DRO. In stock now!
Imperial
| Spindle Size | 3.9" |
| X-Horiz Tvl of Table | 63" |
| Y-Vert Tvl of Head | 44" |
| Power | 14 hp |
| RPM | 1,120 RPM |
| Table-W | 49" |
| Table-L | 49" |
| Spindle Tvl. | 35" |
| Dimensions | 264.1" x 135" x 118" |
| Weight | 30,860Lbs. |
1 YEAR WARRANTY
CE CERTIFICATE
MODEL: W100A
SPECIFICATIONS:
• SPINDLE DIAMETER.................... 3.9"..........100mm
• SPINDLE TAPER....................... ISO 50..........ISO 50
• SPINDLE TRAVEL (W).................. 35"..........900mm
• TABLE CROSS TRAVEL (X).............. 63"..........1600mm
• HEAD VERTICAL TRAVEL (Y)............ 44"..........1120mm
• SADDLE TRAVEL (Z)................... 49"..........1250mm
• SPINDLE SPEEDS...................... 7-1120 RPM..........7-1120 RPM
• WORK TRAVERSE....................... 35 IPM..........18 - 900 mm/min
• RAPID TRAVERSE...................... 110 IPM..........2800 mm/min
• MAIN MOTOR POWER.................... 14 HP..........11 kW
• TABLE SIZE (ROTARY) B............... 49" X 49"..........1250 X 1250 mm
• POWER............................... TRANSFORMER REQUIRED
• WEIGHT CAPACITY..................... 6620 LB ..........3000 kg
• DIMENSION OF MACHINE................ 264.1 x 135 x 118"..........6710 x 3450 x 3000mm
• MACHINE OVER ALL WEIGHT............. 30,860 LBS..........14,000 kG
FEATURES:
• NEW 5 AXIS DRO HEIDENHAIN
• NEW SPINDLE AND SPINDLE BEARINGS
• NEW CENTRAL LUBRICATION SYSTEM FOR ALL AXES
• NEW TELESCOPIC COVERS
• 24 INCH FACING HEAD WITH MAXIMUM FACE MILLING DIAMETER 35.5"
• BACKREST (TAILSTOCK) WITH 100mm BUSHING
• FACING HEAD
• BUILT-IN ROTARY TABLE WITH INCREMENTAL ROTARY ENCODER AND 4x90 DEG. OPTICAL
• READOUT
• B-AXIS MEASUREMENT USES HEIDENHAIN POSITIP 880 (X,Y,Z)
• ALL NEW DOCUMENTATION
• CE ELECTRICAL SPECIFICATIONS
SPECIFICATIONS ARE NOT GUARANTEED; SUBJECT TO CONFIRMATION. MACHINE OFFER IS
SUBJECT TO PRIOR SALE
Note: THIS DOCUMENT IS FOR ADVERTISEMENT ONLY:
CONTACT US TO SPEAK TO A SALES PROFESSIONAL TO RECEIVE A DETAILED PRICE
PROPOSAL OUTLINING THE FULL SCOPE OF MACHINE.
