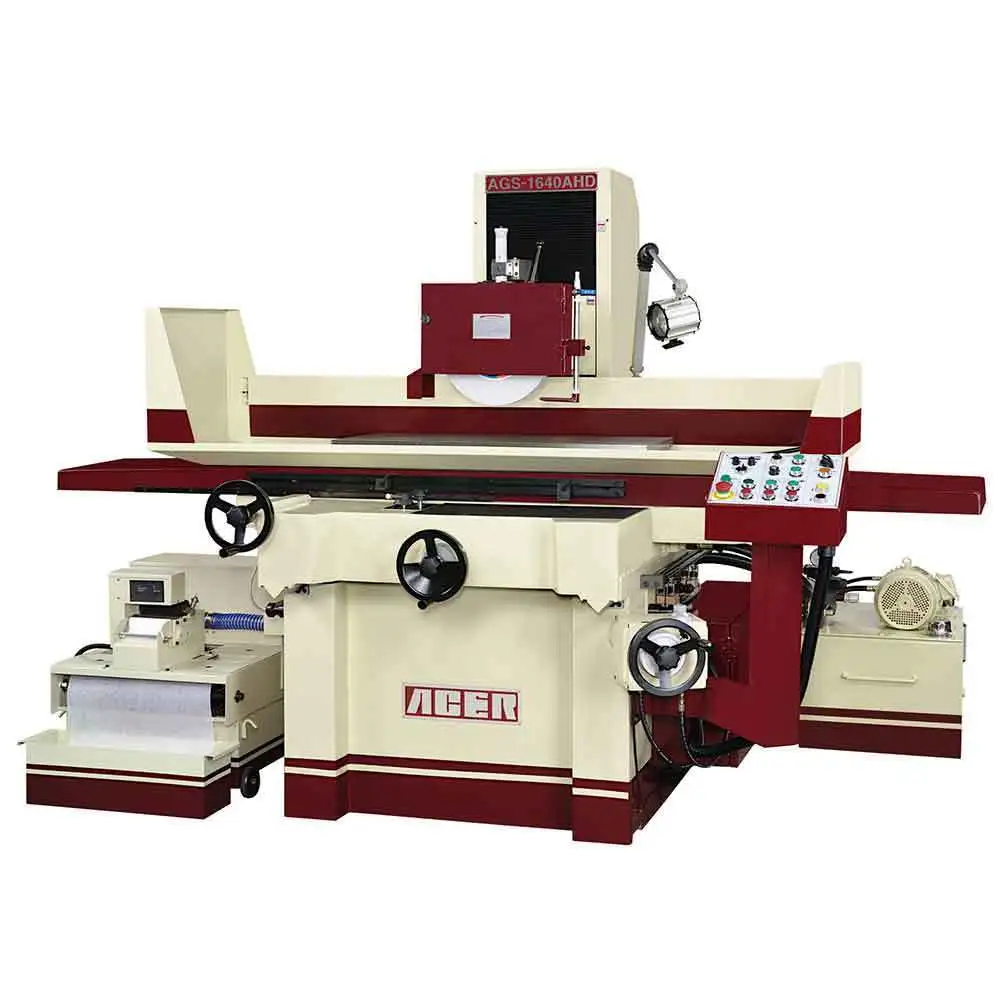

NEW ACER AGS 1640 AHD 16" X 40" HIGH PRECISION SURFACE GRINDER "IN STOCK NOW"

FEATURES:

* 3-AXIS AUTO MOVEMENT
* HYDRAULIC TABLE & ELECTRONIC CROSS-FEED
* AUTO INCREMENTAL DOWNFEED
* AUTO LUBRICATOR, RAPID ELEVATION
* WORKING CAPACITY: 16" X 40"
* COOLANT SYSTEM WITH PAPER FILTER
* MANUAL OVERHEAD PARALLEL DRESSER
* 16" X 40" ACER ELECTRO-MAGNETIC CHUCK (REGULAR POLE)
* VARIABLE CHUCK CONTROL MASTER

SPECIFICATIONS:

TABLE SIZE........................................... 16.7" X 39.4"
LONGITUDINAL TRAVEL.................................. 45.7"
CROSS FEED TRAVEL.................................... 17.7"
SPINDLE CENTER TO TABLE.............................. 24.4"
WHEEL SPEED.......................................... 1750 RPM
AUTO INCREMENT DOWNFEED (VARIABLE 10-STEP)........... 0.0001" - 0.001"
GRINDING WHEEL (OD x W x D).......................... 14" X 2" X 5"
VERTICAL GRADUATION.................................. 0.00025"
VERTICAL REVOLUTION.................................. 0.05"
SPINDLE MOTOR........................................ 7.5 HP (V3)
T-SLOT............................................... 1" X 9/16"
TABLE SPEED: HYDRAULIC............................... 16 - 80 FT/MIN
NET WEIGHT........................................... 6600 LBS
DELIVERY - ACER AGS 1640AHD - 1 in stock, subject to prior sale

STANDARD ACCESSORIES (INCLUDED):

* COOLANT SYSTEM WITH PAPER FILTER
* MANUAL OVERHEAD PARALLEL DRESSER
* 16" X 40" ACER ELECTRO-MAGNETIC CHUCK
* VARIABLE CHUCK CONTROL MASTER

* WHEEL BALANCING BASE * WHEEL BALANCING ARBOR
* GRINDING WHEEL * WHEEL FLANGE
* MANUAL DIAMOND DRESSER * HALOGEN WORK LIGHT
* TOOLBOX W/ TOOLS * SPLASH GUARD

OPTIONAL ACCESSORIES (ADDITIONAL):

WALKER 16" X 40" ELECTRO FINE POLE CHUCK W/ CONTROL..
COOLANT SYSTEM W/ MAGNETIC SEPARATOR & PAPER FILTER..
EXTRA WHEEL FLANGE
NEWALL 2-AXIS DRO (16" X 24" TRAVEL, 0.0001" RES.)...
MAGNASCALE 2-AXIS DRO (16" X 24" TVL. 0.0002" RES.)..
BRACKET AND INSTALLATION FEE FOR DRO.................

*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
