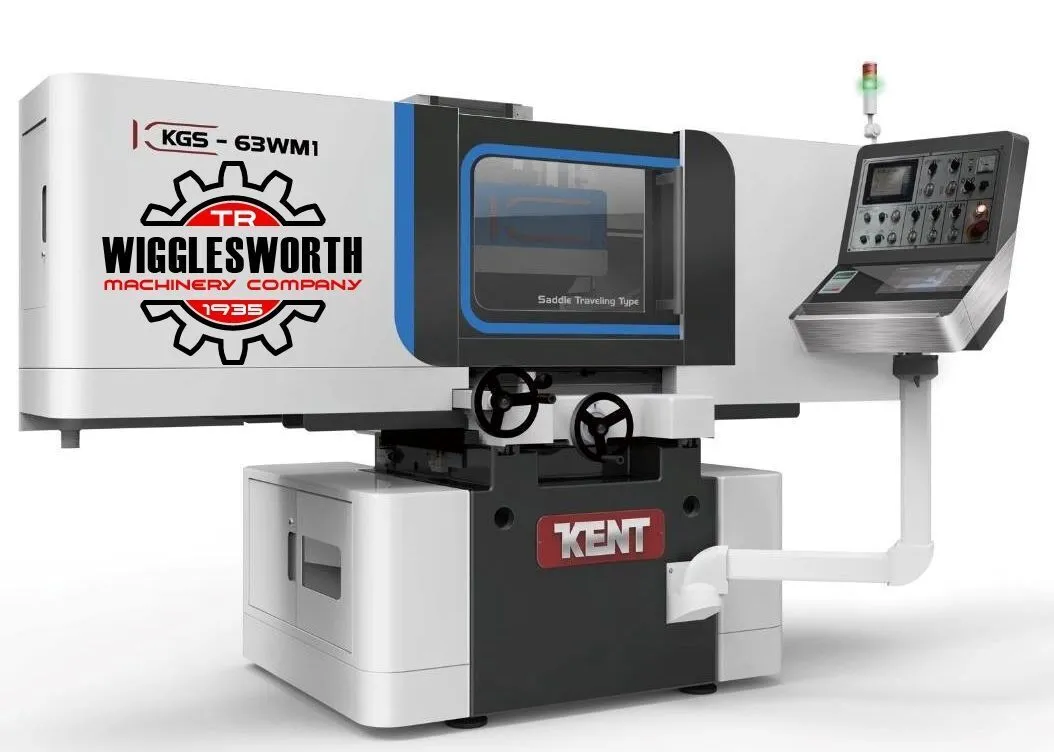

KENT MODEL KGS 63 SERIES MICRO PROGRAMABLE SURFACE GRINDERS *2019 New*

FEATURES:

DOUBLE V TURCITE CROSS & TABLE WAYS
AUTOMATIC LUBRICATION SYSTEM
Z-AXIS BALLSCREW
SERVO MOTOR DRIVEN AUTOMATIC DOWN-FEED
12" X 24" ELECTRO-MAGNETIC CHUCK WITH CONSOLE BUILT IN VARIABLE POWER CHUCK
CONTROL
MAGNETIC SEPERATOR COOLANT SYSTEM
FULL LENGTH REAR SPLASH GUARD
TWO FRONT TABLE SPASH GUARD
OVER HEAD PARALLEL DRESSER
FULLY AUTOMATIC CYCLE WITH ROUGH & FINE FEEDING & SPARK-OUT TIME
RETRACT DISTANCE SETTING
SERVO CROSS FEED
CONSOLE SETTING CROSS FEED TRAVEL
CONTROL AXIS WITH MANUAL PULSE GENERATOR

*NEW MITSUBISHI CONTROL & TOUCH-SCREEN TECHNOLOGY*

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA................................... 24" X 12"
LONGITUDINAL TABLE TRAVEL.............................. 28"
CROSS FEED SADDLE TRAVEL............................... 13.5"
DISTANCE SPINDLE CENTER TO TABLE....................... 24"
TABLE LOAD INCLUDING MAGNETIC CHUCK.................... 930 LBS
TABLE & CROSS FEED:
T-SLOTS (3)............................................ 1/2"
LONGITUDINAL TABLE SPEED WM1........................... 4 - 82 FPM
WM2........................... 4 - 98 FPM
CROSSFEED ON HANDWHEEL (WM1)........................... 0.001" GRADUATION
REVOLUTION OF HANDWHEEL (WM1).......................... 0.2 IPR
CROSSFEED ON MPG (MW2)................................. 0.00005" GRADUATION
REVOLUTION OF MPG (WM2)................................ 0.005 IPR
AUTO CROSS FEED PER STROKE WM1......................... 0.004" - 0.5"
WM2......................... 0.0002" - 4"
RAPID CROSS FEED WM1................................... 48 IPM
WM2................................... 60 IPM
GRINDING WHEEL:
WHEEL DIMENSION (OD x T x ID).......................... 14" x 1.5" x 5"
SPINDLE SPEED.......................................... 1740 RPM
VERTICAL MOVEMENT:
VERTICAL HANDWHEEL..................................... 0.00005" GRADUATION
VERTICAL HANDWHEEL REVOLUTION.......................... 0.005 IPR
AUTO DOWN FEED INCREMENT (MINIMUM)..................... 0.00005"
RAPID ELEVATING........................................ 12 IPM
MOTOR:
SPINDLE MOTOR.......................................... 7.5 HP
HYDRAULIC MOTOR........................................ 2 HP
MACHINE DIMENSIONS:
HEIGHT................................................. 72"
DEPTH.................................................. 99"
WIDTH.................................................. 103"
MACHINE NET WEIGHT..................................... 3850 LBS

STANDARD ACCESSORIES: (INCLUDED)

* WHEEL BALANCING BASE * WHEEL BALANCING ARBOR
* GRINDING WHEEL * WHEEL FLANGE
* TABLE DRESSER * HALOGEN WORK LIGHT

PRICE: F.O.B. SOUTH ELGIN IL

OPTIONAL ACCESSORIES:

EXTRA WHEEL FLANGE
TABLE SPLASH GUARD (REAR)

TERMS:

1. DETAILED SPECIFICATIONS - SEE CATALOGUE
2. WARRANTY OF SPINDLE AND MOTOR ARE ONE YEAR BASED ON ONE SHIFT NORMAL WORKING CONDITION EXCLUDING MISUSE BY ULTIMATE
CUSTOMERS.
3. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER AND CLAIMS FOR LOSS OR DAMAGED MUST BE HANDLED
BY PURCHASER AGAINST CARRIER
4. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE QUOTAION VALID FOR 1 MONTH
5. PRICES ARE BASED ON F.O.B. SOUTH ELGIN, IL
