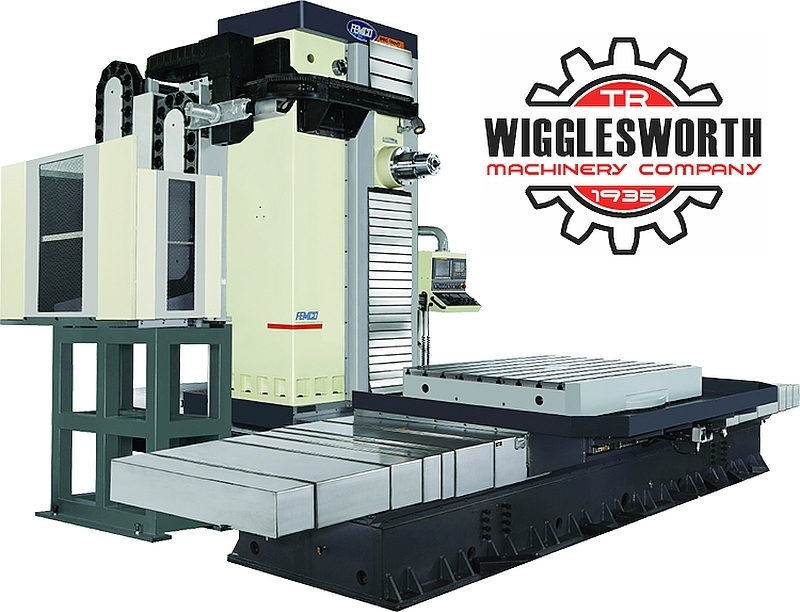

• 8000, RPM 35 HP Geared Head Spindle
• Large Capacity X, Y, Z Travels of 118” x 80” x 59”
• Incredible 40,000 Lbs. Table Load Capacity
• FANUC “Artificial Intelligence Contour Control” or AICC
Travel:
Table Cross Travel (X-Axis) 118.14”
Headstock Travel (Y-Axis) 80.7”
Column Travel (Z-Axis) 59.05”
Table:
Table Size 59.05” x 78.74”
Table Load Max. 40,000 Lbs.
Spindle Nose to Center of Table 16.14” – 75.2”
SPINDLE:
Spindle Diameter 3.94”
Taper ISO #50 with Power Operated Drawbar
** Please request full proposal for Price proposal with detailed specifications
