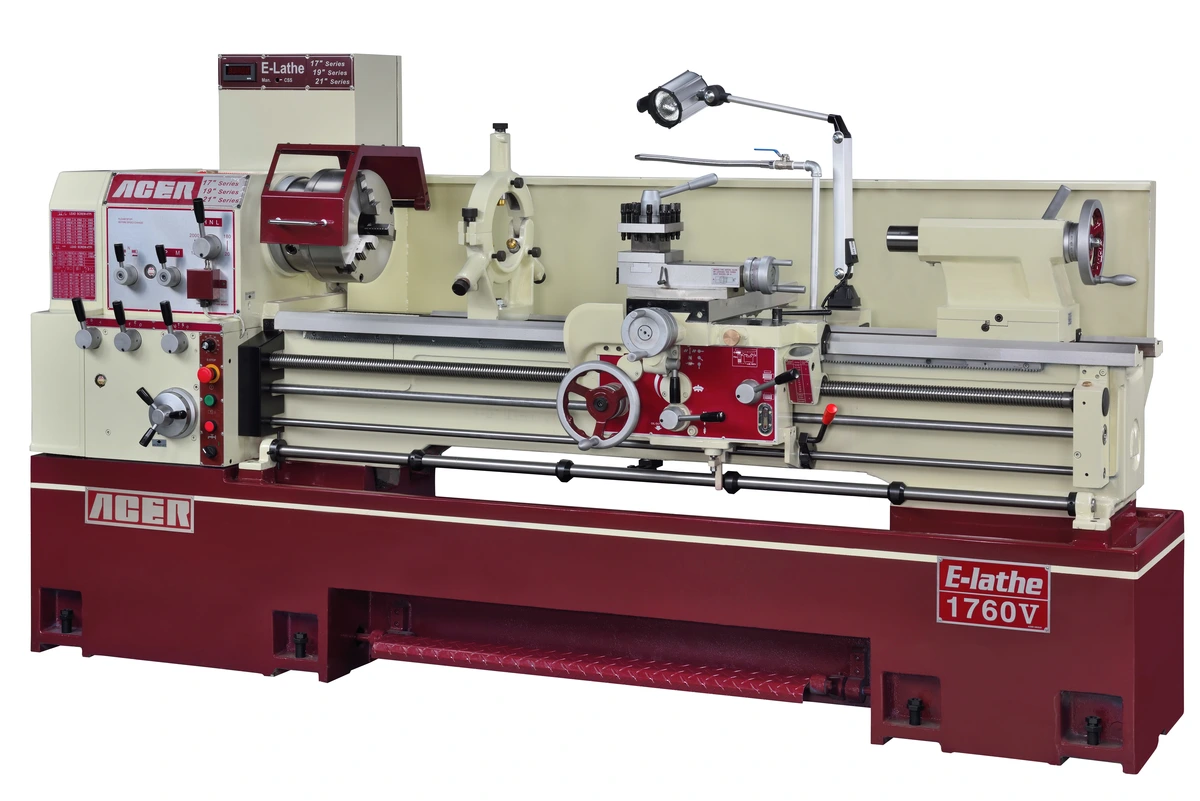

ACER "17V" E-LATHE SERIES VARIABLE SPEED LARGE SPINDLE BORE ENGINE LATHE

E-LATHE FEATURES:

* 3.1" SPINDLE BORE WITH D1-8 SPINDLE NOSE
* 7.5 HP SPINDLE MOTOR
* 2 INFINTELY VARIABLE SPEED RANGES: 20 - 2000 RPM
* 10 HP "TOSHIBA" OR "FUJI" AC FREQUENCY DRIVE
* POWER SUPPLY: ACCEPTS 220V / 1-PH OR 220V / 3PH
* BED WIDTH: 11.81"
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY
* HARDENED AND GROUND GEARS AND SPINDLE
* AUTOMATIC LONGITUDINAL MULTIPLE FEED STOP

SPECIFICATIONS:

GENERAL CAPACITY:
CENTER HEIGHT........................................ 8 1/2"
SWING OVER BED....................................... 17"
SWING OVER GAP (GAP TYPE ONLY)....................... 25 1/2"
SWING OVER CROSS SLIDE............................... 9 1/2"
DISTANCE BETWEEN CENTERS............................. 39.37"/59"/86.61"
MAIN SPINDLE:
SPINDLE NOSE......................................... D1-8
SPINDLE BORE DIAMETER................................ 3 1/7"
TYPE OF SPINDLE NOSE................................. MT #7
TAPER OF CENTER...................................... MT #4
SPINDLE SPEEDS (2-RANGE INFINTELY VARIABLE).......... 20 - 2000 RPM
CARRIAGE:
CROSS SLIDE TRAVEL................................... 9 8/9"
COMPOUND REST TRAVEL................................. 4 7/8"
MAX. SIZE CUTTING TOOL............................... 1" X 1"
TAILSTOCK:
SPINDLE DIAMTER...................................... 2 1/4"
SPINDLE TRAVEL....................................... 5 9/10"
TAPER OF CENTER...................................... MT #4
BED:
BED LENGTH........................................... 75"/96"/125"
BED WIDTH............................................ 11 4/5"
WIDTH OF GAP (40"/60 & 80").......................... 9 9/10"/11 9/10"
THREADING & FEEDING:
SYSTEM............................................... INCH
METRIC PITCH THREADS (17)............................ 0.5 - 7 MM/PITCH
INCH PITCH THREADS (36).............................. 4 - 56 TPI
MODULE PITCH THREADS (17)............................ 0.5 - 7.0 MP
DIAMETRAL PITCH THREADS (36)......................... 4 - 56 DP
RANGE OF LONGITUDINAL FEEDS.......................... 0.002 - 0.032 IPR
RANGE OF CROSS FEEDS................................. 0.001 - 0.014 IPR
POWER:
MAIN DRIVE MOTOR..................................... 7.5 HP
COOLANT PUMP MOTOR................................... 1/8 HP
DIMENSIONS:
FLOOR SPACE.......................................... 85"/104"/134" X 32"
NET WEIGHT........................................... 3190/3520/4400 LBS
GROSS WEIGHT......................................... 3454/3806/4774 LBS
PACKING DIMENSIONS:
1740V................................................ 89.8" X 37.4" X 66.2"
1760V................................................ 110" X 37.4" X 66.2"
1780V................................................ 140" X 37.4" X 66.2"

STANDARD ACCESSORIES:

10" D1-8 THREE JAW CHUCK BUILT-IN COOLANT SYSTEM
4-WAY TOOL POST OWNERS MANUAL
STEADY REST (0.6-7") 16" FACE PLATE
HALOGEN WORK LIGHT TOOLBOX WITH TOOLS

PRICING:
E-LATHE 1740V
E-LATHE 1760V
E-LATHE 1780V

SPECIAL PACKAGE PRICE INCLUDES:
E-LATHE "17V" SERIES LATHE W/STANDARD ACCESSORIES
"NEWALL" DP700 2-AXIS DIGITAL READOUT (D.R.O)
INSTALLED AT ACER WAREHOUSE

OPTIONAL ACCESSORIES:
FOLLOW REST W/ BRASS TIP (0.59" - 27.6" RANGE)
8" 3-JAW CHUCK (D1-8)
10" 4-JAW INDEPENDENT CHUCK (D1-8)
12" 4-JAW INDEPENDENT CHUCK (D1-8)
14" FACE PLATE
"ALORIS" TOOL POST & 4 HOLDERS (#3 - BS)
"ALORIS" TOOL POST & 6 HOLDERS (#3 - IP)
"DORIAN" QUICK CHANGE TOOL POST & 4 HOLDERS
(SD35CXA-TS)
MICROMETER STOP / FOUR POSITION CARRIAGE STOP
5C COLLECT CLOSER (LEVER-TYPE)
5C COLLECT SET (1/16" TO 1 1/16" X 16TH; 17 PC/SET)
INSTALLATION FEE FOR COLLECT CLOSER
TAPER TURNING ATTACHMENT (INSTALL FEE ADD $250.00)
"MAGNASCALE" 2-AXIS DRO (10" X 40"/60"/80")
"NEWALL" DP700 2-AXIS DRO (10" X 40"/60"/80")
INSTALLATION FEE FOR NEWALL DP700 OR MAGNASCALE DRO
440/V (3 PHASE) INVERTER DRIVE UPGRADE
REAR FULL LENGH SPLASH GUARD FOR 40"/60"/80"

*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
