New SUPERTEC 1224CNC II | GRINDERS, SURFACE, RECIPROC. TABLE (HOR. SPDL.), N/C & CNC
Have one to sell?
ConditionNew
New
SUPERTEC 1224CNC II new surface grinder features a 12"x24" table, precision ballscrews, 3-axis CNC, Mitsubishi M80 control, and high precision spindle. Optimize grinding with advanced cycles, i-Grind programming, and a robust 7,936 lb Meehanite design.

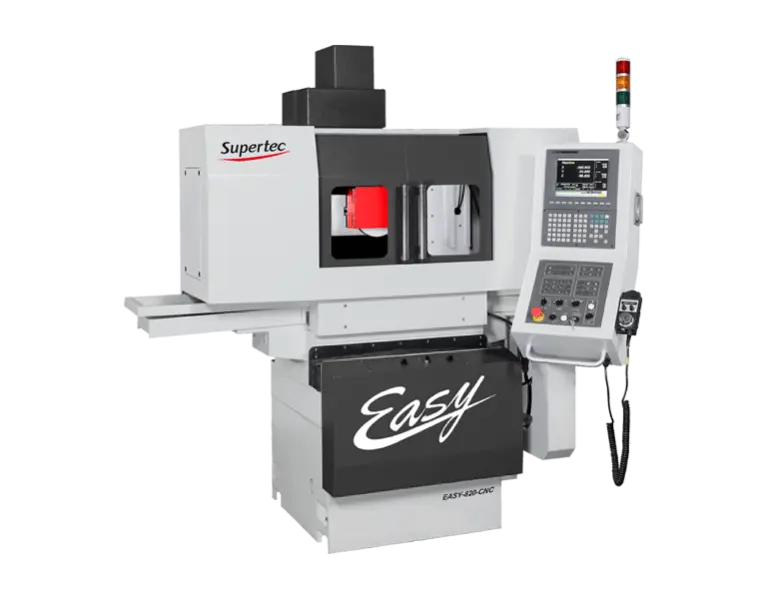

SUPERTEC EASY-1224CNC
SPECIFICATIONS
GRINDING CAPACITY
Table Size: 12" x 24"
Distance from Table Surface to Spindle Center: 25.6"
LONGITUDINAL MOVEMENT
Hydraulic Traverse Feed: 16.4–82 ft/min
Servo Traverse Feed: 3.3–49 ft/min
Belt Feed: 3.3–82 ft/min
CROSS MOVEMENT
Rapid Feed: 39.4 in/min
MPG: X1 0.0001" / X10 0.001" / X100 0.01"
VERTICAL MOVEMENT
Rapid Feed: 39.4 in/min
MPG: X1 0.0001" / X10 0.001" / X100 0.01"
SPINDLE & WHEEL
Spindle Speed: 1,450 / 1,750 RPM
Grinding Wheel: 14" x 1.5" x 5"
MOTORS
Spindle Motor: 10 HP
Hydraulic Motor: 3 HP
Vertical Feed Servo: 1 kW
Cross Feed Servo: 500 W
Longitudinal Feed Servo: 500 W
MACHINE
Net Weight: 7,936 lb
Gross Weight: 9,259 lb
Shipping Size: 126" x 90" x 90"
STANDARD FEATURES
• Mitsubishi M80 CNC Control
• Conversational i-Grind Programming
• 3-Axis CNC
• Servo Driven Table
• Precision Ballscrews
• Surface, Slice, Crisscross & Step Grinding Cycles
• Graphical Grinding Path Display
• Grinding Simulation
• Automatic Wheel Compensation
• Spark-Out Function
• Program Storage
• Meehanite Cast Iron Construction
• High Precision Spindle
• Linear Roller Guideways
• High Rigidity Machine Structure
OPTIONAL ACCESSORIES
• FANUC CNC Control
• Fully Enclosed Splash Guard
• Magnetic Filter
• Automatic Paper Filter & Coolant System
• Coolant Chiller
• Oil Mist Collector
• Air Conditioner
• Online Wheel Balance System
• Digital Readout
• CNC Rotary Table
• Roller Dresser
