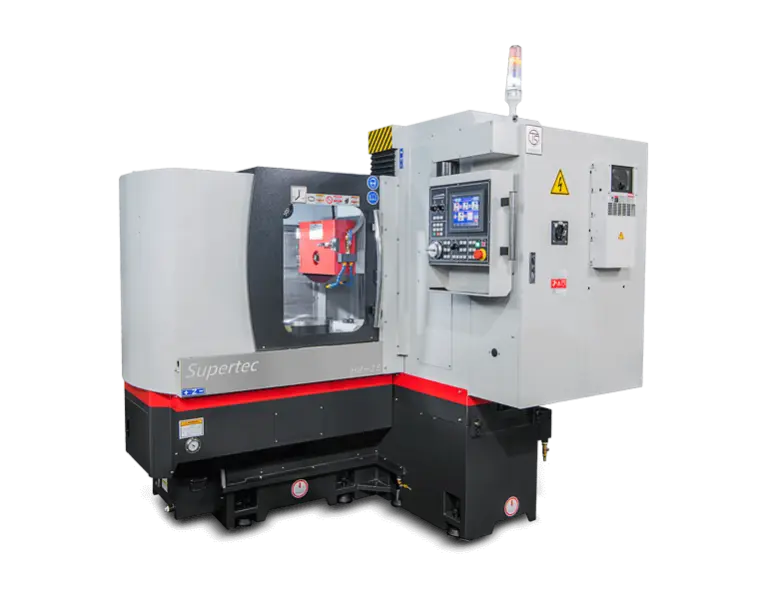

FEATURES
• Siemens VE grade spindle motor for superior performance and reliability
• Sealed spindle motor to prevent moisture penetration
• Rotary Chuck Speed 10-150 RPM
• Three heavy duty linear roller guide ways on the wheelhead for smooth movement and maximum rigidity
• Fine pole electro-magnetic chuck for large or small part grinding
• Honeycomb designed column structure for maximum vibration dampening and rigidity
• Automatic trim compensation
Features
*Siemens VE grade spindle motor for superior performance and reliability
*Sealed spindle motor to prevent moisture penetration
*Three heavy duty linear roller guide ways on the wheelhead for smooth movement and maximum rigidity
*Fine pole electro-magnetic chuck for large or small part grinding
*Honeycomb designed column structure for maximum vibration dampening and rigidity
*Automatic trim compensation
Specifications:
Rotary magnetic chuck diameter........................ 24”
Max Grinding Radius................................... 12.8"
Distance From Spindle Center Line to Table............ 18"
Max Table Load........................................ 616lbs
Rotary Magnetic Chuck Speed........................... 10-150 RPM
Grinding Wheel Diameter............................... 16"
Grinding Wheel Width.................................. 2"
Grinding Wheel B...................................... 5"
Spindle Motor......................................... 10hp (Siemens, V3)
Spindle Speed (60htz)................................. 1,750 RPM
Auto Downfeed Servo Motor............................. 500W
Downfeed per Rev (MPG)................................ 0.005"/0.025"/0.05"
Downfeed per Grad (MPG)............................... 0.00005"/0.00025"/0.0005"
Machine Net Weight.................................... 10,120 lbs
Machine Gross Weight.................................. 11,440 lbs
Shipping Dimensions................................... 9.2' x 7.2' x 7.2'
Standard Accessories:
*Open top full enclosure
*Fine pole electro-magnetic chuck & control
*Vari-speed on wheelhead
*Auto lube system
*Wheel dresser
*Machine Lamp
*PLC color touch screen control
*MPG on vertical travel
*Coolant system with paper filter and magnetic separator.
*Tool Box and tools w/ leveling pads, screws & manuals
*Balancing arbor
Optional Accessories:
*Siemens CNC control upgrade
*Fanuc CNC control upgrade
*Mitsubishi CNC control upgrade
*Oil mist separator
*On line dynamic wheel balancing system ( HR16 to HR48 only)
*Spare grinding wheel
*Fagor DRO- 1 axis HR-16/20/24
*Rotary diamond dresser
*7.5 spindle motor & inverter upgrade (HR-16&20)
