New SUPERTEC EGM-350 CNC | GRINDERS, UNIVERSAL ID/OD, DUAL SPINDLE CNC

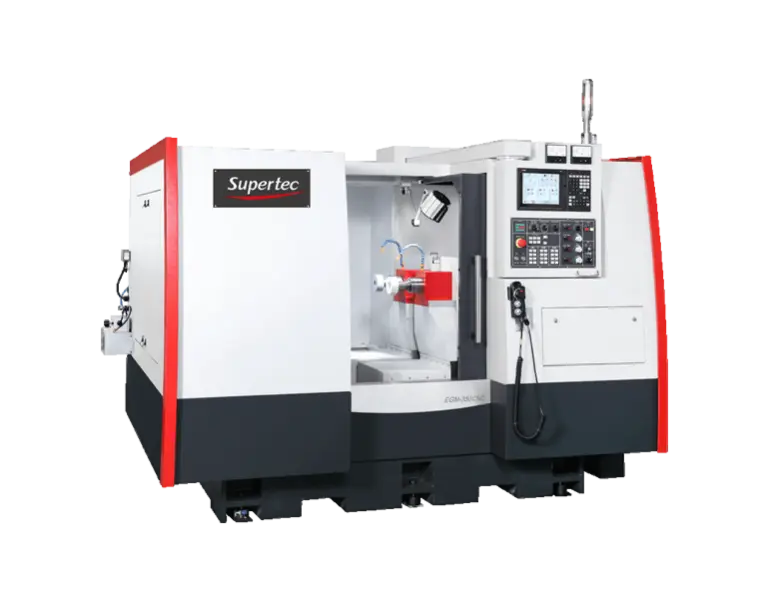

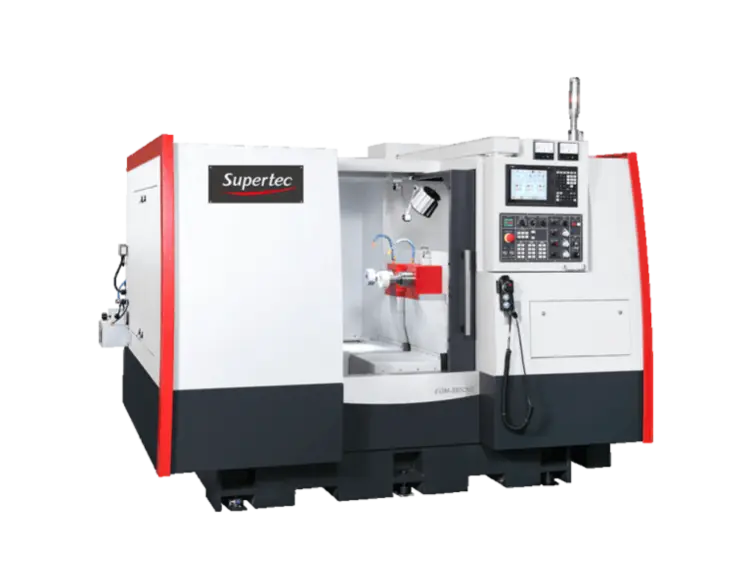

SUPERTEC EGM-350CNC

SPECIFICATIONS

General Capacity

Max. Grinding ID: 15.7 in
Max. Grinding OD: 15.7 in
Swing Over Workhead: 19.6 in
Max. Grinding Depth: 10.2 in
Max. Weight of Workpiece: 110 lb
Max. Length of Workpiece: 11.8 in
Workhead (X Axis)
Type: Dual Independent Wheelhead
3-Jaw Chuck: Hydraulic 8 in / 10 in (Optional)
Swivel Angle: +15° to -5°
Manual Travel Toward Z: 9.8 in
Spindle Speed: 0-1000 RPM (Variable)
Servo Motor: 1.8 kW (F) / 2.2 kW (M)
Grinding Wheelhead (Y Axis)
OD Grinding Wheel Size: N/A
ID Grinding Wheel Size: 3.9 in
Max. Spindle Speed: 10,000 RPM (Std.)
Spindle Motor / Max. Torque: 3.75 kW / 13 Nm
Grinding Wheelhead (Z Axis)
OD Grinding Wheel Size: 3.9 in
ID Grinding Wheel Size: N/A
End Surface Grinding Spindle: N/A
Max. Spindle Speed: 20,000 RPM (Std.)
Spindle Motor / Max. Torque: 3.75 kW / 13 Nm

X Axis

Travel: 16.5 in
Rapid Feedrate: 314 in/min
Heidenhain Linear Scale Resolution: 0.000002 in
Minimum Increment: 0.000010 in
Servo Motor: 1.8 kW (F) / 2.2 kW (M)

Y Axis

Travel: 13.7 in
Rapid Feedrate: 314 in/min
Minimum Increment: 0.000010 in
Servo Motor: 1.8 kW (F) / 2.2 kW (M)

Z Axis

Travel: 13.7 in
Rapid Feedrate: 314 in/min
Minimum Increment: 0.000010 in
Servo Motor: 1.8 kW (F) / 2.2 kW (M)

Motor

Hydraulic Motor: 0.75 kW
Coolant Pump: 0.37 + 0.18 kW

Machine

Net Weight: 12,786 lb
Gross Weight: 13,890 lb
Packing Size (L x W x H): 132 x 88 x 77 in
