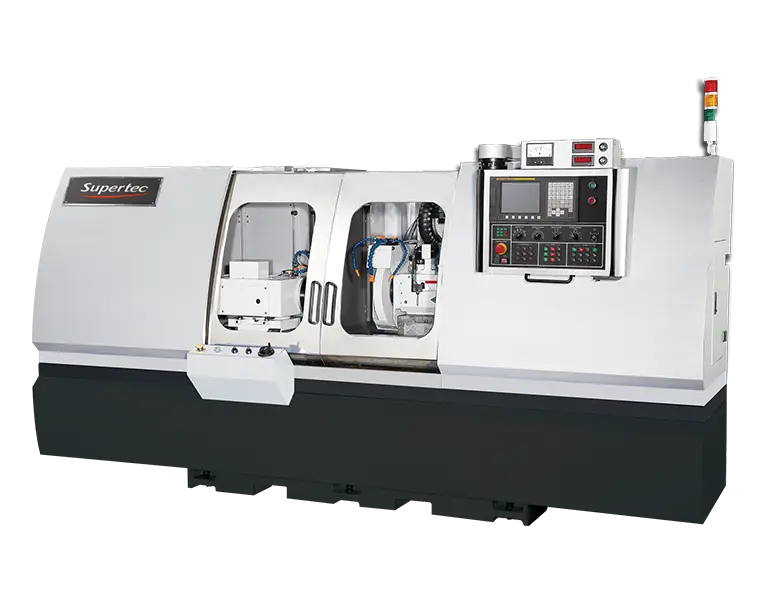

Introducing the SUPERTEC PMG-100CNC(B), a state-of-the-art dual spindle CNC universal grinder. With 15" swing, 39.4" center distance, and a maximum grinding diameter of 14", this new equipment is equipped with a Mitsubishi M80 controller and essential features.
SUPERTEC PMGII-100CNC -
SPECIFICATIONS
GRINDING CAPACITY
Swing Over Table: 15 in
Distance Between Centers: 39.4 in
Maximum Grinding Diameter: 14 in
Maximum Load Held Between Centers: 330 lb
Center Distance Between Spindle & Slide Table: 7.5 in
OD GRINDING WHEEL SPINDLE
T1 Wheel: 20 x 2 x 6 in
T2 Wheel: 16 x 2 x 6 in
Motor Rated Power / Max Torque: 7.5 kW / 49 N·m
Wheel Speed: 1650 rpm
ID GRINDING SPINDLE
ID Spindle Diameter: 3.5 in (Opt. 4 in)
Motor Rated Power / Max Torque: 3 kW / 9.8 N·m
ID Spindle Speed: 8,000 / 15,000 / 20,000 / 30,000 rpm (optional built-in spindle)
WORKHEAD
Swiveling Angle: 90°
Spindle Speed: 10-600 rpm
Motor Rated Power: 2 HP
Center Taper: MT4 (Opt. MT5)
Bore Diameter: 1.02 in
TAILSTOCK
Quill Travel: 1 in (Opt. 2 / 3 in)
Center Taper: MT4 (Opt. MT5)
X-AXIS
Travel: 13.7 in
Rapid Feed: 236 in/min
Minimum Increment: 0.0001 in
Servo Motor: 1.8 kW (F) / 2.2 kW (M)
Z-AXIS
Travel: 57 in
Swiveling Angle: ±7°
Rapid Feed: 315 in/min
Minimum Increment: 0.0001 in
Servo Motor: 2.5 kW (F) / 3.5 kW (M)
B-AXIS
Swiveling Angle: -30° to +210°
Max Rotation Speed: 30 rpm
Minimum Increment: 0.0001°
Motor Type: Torque Motor
Max Torque: 600 Nm
MOTORS
Hydraulic Pump: 3 HP
Hydrodynamic Wheel Spindle Lubrication: 0.26 HP
Guideway Lubrication Pump: 0.26 HP
Coolant Pump: 0.26 HP
MACHINE SIZE & WEIGHT
Net Weight: 16,534 lb
Gross Weight: 17,857 lb
Overall Size: 177 x 116 x 86 in
STANDARD ACCESSORIES
• Mitsubishi M80 Controller with iGrind Software
• Servo Workhead (MT4)
• MPG Handwheel
• X-Axis Linear Scale
• B-Axis Rotary Table
• T1 Plunge Wheel & Flange
• T2 Angular Wheel & Flange
• T3 Internal Wheel with ID Spindle
• Automatic Multi-Step Wheel Speed Change
• Fully Enclosed Splash Guard
• Diamond Dresser
• Carbide Center
• Touch Probe
• Balancing Stand
• Hydraulic Oil Cooler
• Coolant System with Magnetic Separator & Paper Filter
• Automatic Lubrication
• Electrical Cabinet Heat Exchanger
• Wheel Extractor
• LED Work Light
• Signal Light
• Toolbox
• Leveling Bolts
• Operation Manual
OPTIONAL ACCESSORIES
• Fanuc Oi-TF Control
• MT5 Workhead / Tailstock
• 2 or 3 in Tailstock Quill
• Adjustable or Hydraulic Tailstock
• Z-Axis Linear Scale
• Built-in or Belt ID Spindle
• Spare Wheel Flanges
• Solid Carbide Center
• Automatic or Manual Wheel Balancing
• Gap & Crash Control
• Automatic Gauging
• Diamond Roller Dresser
• Oil & Mist Collector
• Transformer
• CE Cabinet / Cabinet A/C
• 2 & 3 Point Steady Rests
• Manual/Hydraulic 3 & 4 Jaw Chucks
• Workpiece Carrier
• Robot Loading System
