FERMAT - VARIANT 10000 FFM 140 RAM TYPE UNIVERSAL CNC FLOOR TYPE MILLING MACHINEBORING MILLS, HORIZ., FLOOR TYPE, N/C & CNC

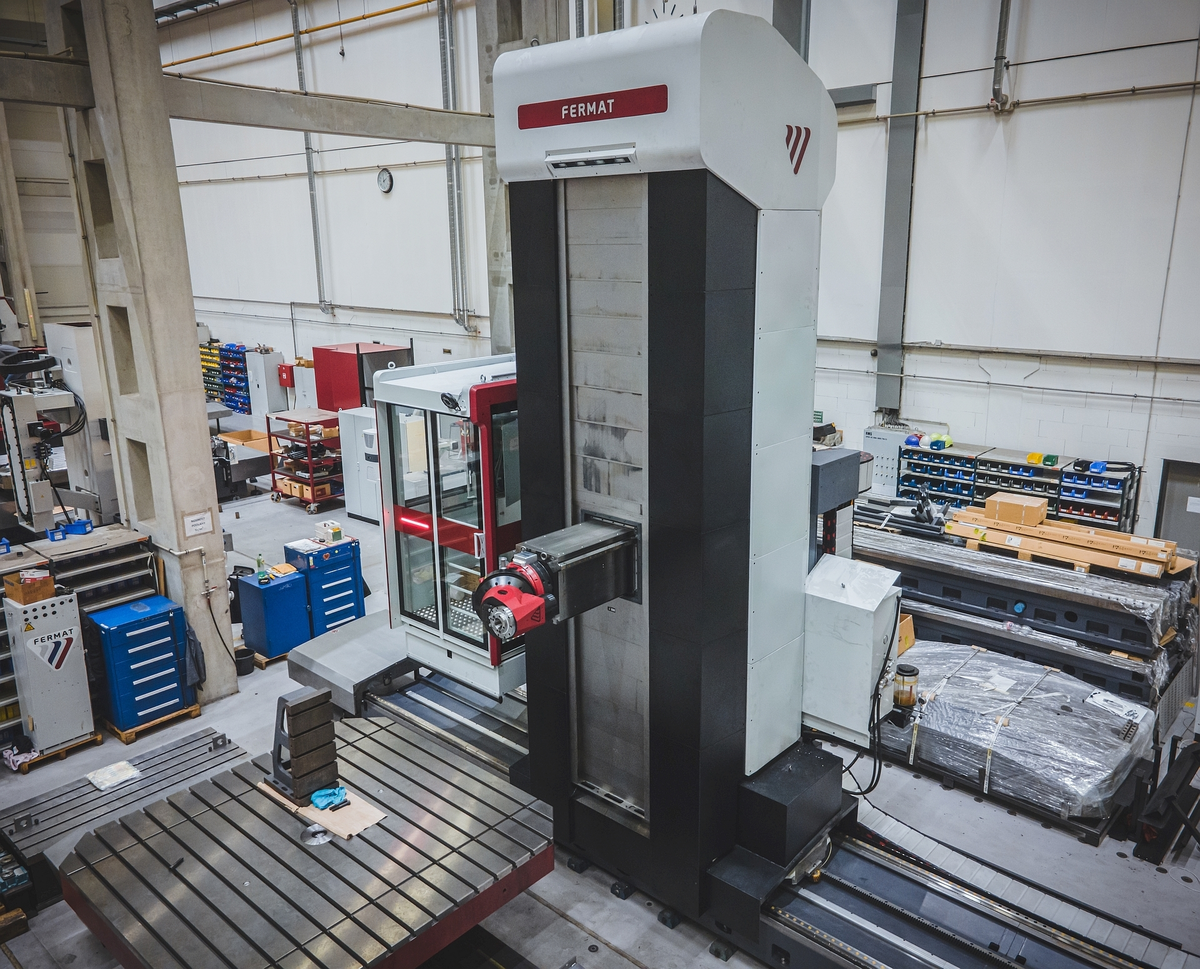

This FERMAT Floor type milling center is a continuously controlled milling machine with 56" of RAM Stroke. The entire column and base travel cross wise upon the given length of a runway. The Possibility of an optional table movable in longitudinal manner.
VARIANT line of machines are very precise and thanks to their modern construction, they are very convenient for efficient machining of workpieces of up to 80 Tons on the optional rotary table, or higher on floor plates. Tool changing is accomplished via a Fanuc or Kuka Robotic Arm style unit with a 200 station tool crib.

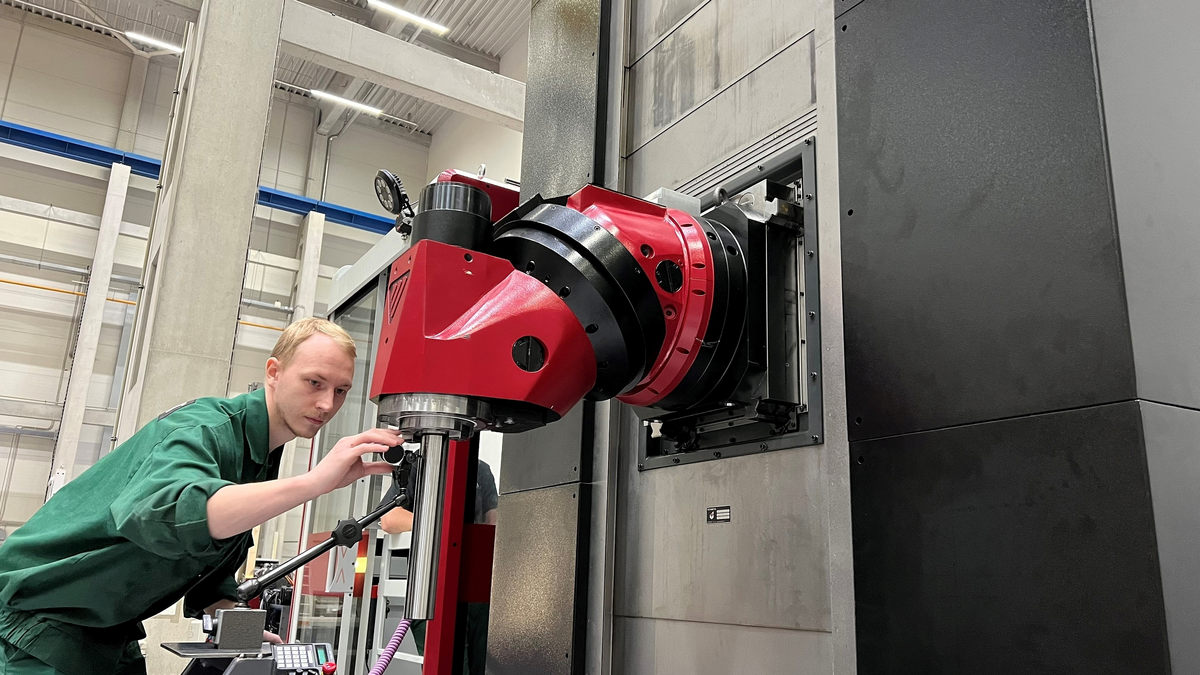

The Fermat Universal Automatic Micro Indexing Head, model UHAmi with Max. 4000 RPM has a 41 kW / 54.9 hp
Motor, the Head is capable of Indexing: 0.001°x 0.001° (Automatically)
A consistent control of the machine is provided by a CNC system according to the customer’s choice (HEIDENHAIN i TNC 640, SIEMENS 840D SL or FANUC 31i B) with an English dialogue.
|X-Horiz Tvl of Col||393.7"|
|Y-Vert Tvl of Head||125.9"|
