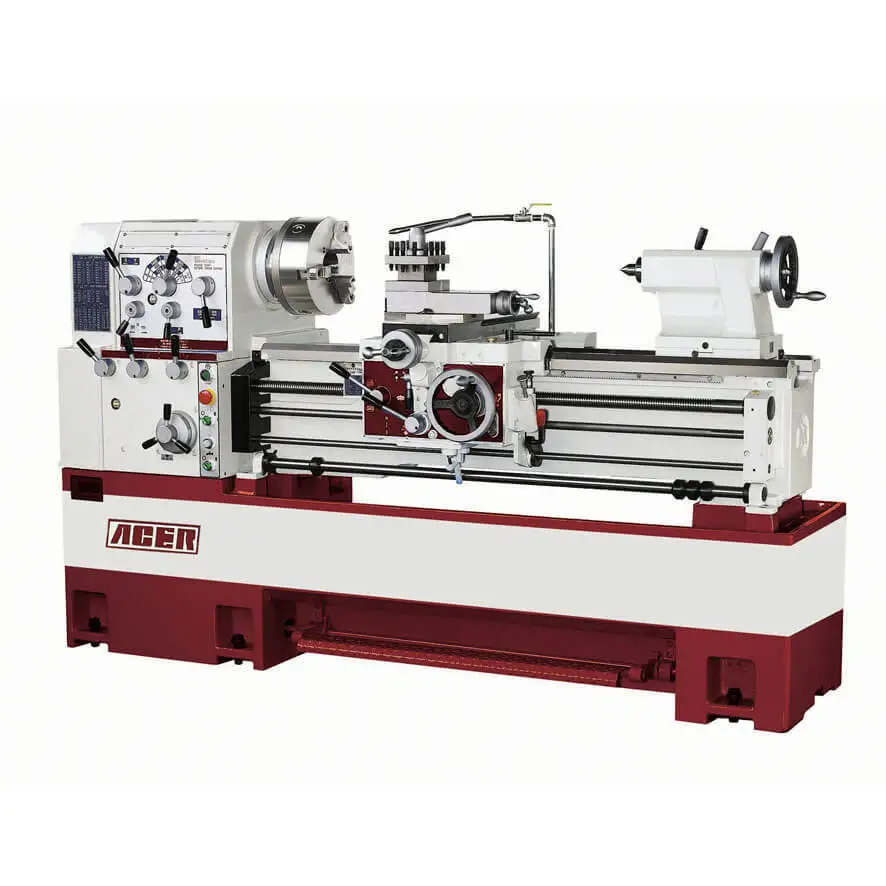

NEW 2025 ACER DYNAMIC 21S SERIES LARGE BORE ENGINE LATHE (IN STOCK NOW)
Have one to sell?
ConditionNew
500 available
New
Elevate your machining with the ACER DYNAMIC 21S Engine Lathe. Featuring up to 80" centers, a powerful 10 HP motor, and 20-2000 RPM spindle speeds. Precision-crafted with Meehanite casting for exceptional durability. Explore versatility with standard/optional accessories.
FEATURES:
* THE 21" SERIES IS AVAILABLE IN 30", 40", 60", AND 80" DISTANCE BETWEEN CENTERS
* 3.1" SPINDLE BORE WITH D1-8 SPINDLE NOSE
* 10 HP SPINDLE MOTOR
* SPINDLE SPEED 20 - 2000 RPM (12 SPINDLE SPEED)
* AUTO. FEED & THREADING ARE INTERLOCKED TO PREVENT SIMULTENEOUS
FUNCTIONS
* THERMAL TREATED MEEHANITE CASTING BED; BED HARDNESS REACHES HS70
* HEAT TREATED AND PRECISION GROUND ALLOY GEARS
* UNIVERSAL GEARBOX FOR BOTH INCH/METRIC THREAD & CONVERSION CHART
* AUTOMATIC LONGITUDINAL MULTIPLE FEED STOP
* BED WIDTH 11.81"
SPECIFICATIONS:
GENERAL CAPACITY:
SWING OVER BED................................... 20.5"
SWING OVER GAP................................... 29.1"
SWING OVER CROSS SLIDE........................... 13"
DISTANCE BETWEEN CENTERS......................... 22"/30"/39"
59"/78.7"
WIDTH OF BED..................................... 11.8"
MAIN SPINDLE:
SPINDLE NOSE..................................... ASA D1-8
SPINDLE BORE DIAMETER............................ 3.1"
TAPER OF SPINDLE BORE............................ MT 7
SPINDLE SPEEDS (12 STEPS)........................ 20 - 2000 RPM
THREADING:
INCH THREAD RANGE................................ 4 - 56 TPI
METRIC THREADS RANGE............................. P 0.5 - P 7
LONG. FEEDS RANGE................................ 0.002" - 0.03"
CROSS FEEDS RANGE................................ 0.0008 - 0.02"
LEADSCREW DIAMETER............................... 1.4"
LEADSCREW PITCH.................................. 4 TPI OR 0.2"
TAPER OF TAIL CENTER............................. MT 4
CARRIAGE:
COMPOUND REST TRAVEL............................. 4.9"
CROSS SLIDE TRAVEL............................... 10.8"
TAILSTOCK:
TAIL SPINDLE DIAMETER............................ 5.9"
TAIL SPINDLE TRAVEL.............................. 2.7"
POWER:
MAIN DRIVE MOTOR................................. 7.5 / 10 HP
COOLANT PUMP MOTOR............................... 1/8 HP
STANDARD ACCESSORIES:
10" D1-8 THREE JAW CHUCK 4-WAY TOOL POST
STEADY REST: BRONZE TIP BUILT-IN COOLANT SYSTEM
(0.39" - 6.29") HALOGEN WORK LIGHT
LONGITUDINAL CARRIAGE STOP TOOL BOX W/ TOOLS
PRICING*:
DYNAMIC 2130S
DYNAMIC 2140S
DYNAMIC 2160S
DYNAMIC 2180S
*ALL MACHINES SUBJECT TO ADDITIONAL OCEAN FREIGHT SURCHARGE
OPTIONAL ACCESSORIES (ADDITIONAL):
12" 4-JAW INDEPENDENT CHUCK (D1-8) (SC STRONG)
FOLLOW REST: BRONZE TIP (0.59" - 3.14")
16" FACE PLATE
"ALORIS" TOOL POST & 4 HOLDERS (#4-BS)
"ALORIS" TOOL POST & 6 HOLDERS (#4-SET)
"DORIAN" TOOL POST & 4 HOLDERS (SD40 CA-TS)
MICROMETER STOP
FOUR POSITION CARRIAGE STOP
TAPER TURNING ATTACHMENT
INSTALLATION FEE FOR TAPER TURNING ATTACHMENT
5C COLLET CLOSER (LEVER-TYPE)
INSTALLATION FEE FOR COLLET CLOSER
5C COLLET SET (1/16" - 1 1/16" x 16THS; 17 PCS/SET)
"MAGNESCALE" 2-AXIS DRO (12" X 30"/40"/60"/80")
"NEWALL" 2-AXIS DRO (10" X 30"/40"/60"/84")
INSTALLATION FEE FOR DRO
REAR SPLASH CUARD FOR 2140S/2160S/2180S
INSTALLATION FEE FOR REAR SPLASH GUARD
** MACHINE SUBJECT TO OCEANFREIGHT SURCHARGE
** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
Elevate your machining with the ACER DYNAMIC 21S Engine Lathe. Featuring up to 80" centers, a powerful 10 HP motor, and 20-2000 RPM spindle speeds. Precision-crafted with Meehanite casting for exceptional durability. Explore versatility with standard/optional accessories.
Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.
Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.
Imperial
| Swing | 20.5" |
| Spindle Bore | 3.1" |
| Power | 10 hp |
| RPM | 2,000 RPM |
| Swing Over Cross Slide | 13" |
FEATURES:
* THE 21" SERIES IS AVAILABLE IN 30", 40", 60", AND 80" DISTANCE BETWEEN CENTERS
* 3.1" SPINDLE BORE WITH D1-8 SPINDLE NOSE
* 10 HP SPINDLE MOTOR
* SPINDLE SPEED 20 - 2000 RPM (12 SPINDLE SPEED)
* AUTO. FEED & THREADING ARE INTERLOCKED TO PREVENT SIMULTENEOUS
FUNCTIONS
* THERMAL TREATED MEEHANITE CASTING BED; BED HARDNESS REACHES HS70
* HEAT TREATED AND PRECISION GROUND ALLOY GEARS
* UNIVERSAL GEARBOX FOR BOTH INCH/METRIC THREAD & CONVERSION CHART
* AUTOMATIC LONGITUDINAL MULTIPLE FEED STOP
* BED WIDTH 11.81"
SPECIFICATIONS:
GENERAL CAPACITY:
SWING OVER BED................................... 20.5"
SWING OVER GAP................................... 29.1"
SWING OVER CROSS SLIDE........................... 13"
DISTANCE BETWEEN CENTERS......................... 22"/30"/39"
59"/78.7"
WIDTH OF BED..................................... 11.8"
MAIN SPINDLE:
SPINDLE NOSE..................................... ASA D1-8
SPINDLE BORE DIAMETER............................ 3.1"
TAPER OF SPINDLE BORE............................ MT 7
SPINDLE SPEEDS (12 STEPS)........................ 20 - 2000 RPM
THREADING:
INCH THREAD RANGE................................ 4 - 56 TPI
METRIC THREADS RANGE............................. P 0.5 - P 7
LONG. FEEDS RANGE................................ 0.002" - 0.03"
CROSS FEEDS RANGE................................ 0.0008 - 0.02"
LEADSCREW DIAMETER............................... 1.4"
LEADSCREW PITCH.................................. 4 TPI OR 0.2"
TAPER OF TAIL CENTER............................. MT 4
CARRIAGE:
COMPOUND REST TRAVEL............................. 4.9"
CROSS SLIDE TRAVEL............................... 10.8"
TAILSTOCK:
TAIL SPINDLE DIAMETER............................ 5.9"
TAIL SPINDLE TRAVEL.............................. 2.7"
POWER:
MAIN DRIVE MOTOR................................. 7.5 / 10 HP
COOLANT PUMP MOTOR............................... 1/8 HP
STANDARD ACCESSORIES:
10" D1-8 THREE JAW CHUCK 4-WAY TOOL POST
STEADY REST: BRONZE TIP BUILT-IN COOLANT SYSTEM
(0.39" - 6.29") HALOGEN WORK LIGHT
LONGITUDINAL CARRIAGE STOP TOOL BOX W/ TOOLS
PRICING*:
DYNAMIC 2130S
DYNAMIC 2140S
DYNAMIC 2160S
DYNAMIC 2180S
*ALL MACHINES SUBJECT TO ADDITIONAL OCEAN FREIGHT SURCHARGE
OPTIONAL ACCESSORIES (ADDITIONAL):
12" 4-JAW INDEPENDENT CHUCK (D1-8) (SC STRONG)
FOLLOW REST: BRONZE TIP (0.59" - 3.14")
16" FACE PLATE
"ALORIS" TOOL POST & 4 HOLDERS (#4-BS)
"ALORIS" TOOL POST & 6 HOLDERS (#4-SET)
"DORIAN" TOOL POST & 4 HOLDERS (SD40 CA-TS)
MICROMETER STOP
FOUR POSITION CARRIAGE STOP
TAPER TURNING ATTACHMENT
INSTALLATION FEE FOR TAPER TURNING ATTACHMENT
5C COLLET CLOSER (LEVER-TYPE)
INSTALLATION FEE FOR COLLET CLOSER
5C COLLET SET (1/16" - 1 1/16" x 16THS; 17 PCS/SET)
"MAGNESCALE" 2-AXIS DRO (12" X 30"/40"/60"/80")
"NEWALL" 2-AXIS DRO (10" X 30"/40"/60"/84")
INSTALLATION FEE FOR DRO
REAR SPLASH CUARD FOR 2140S/2160S/2180S
INSTALLATION FEE FOR REAR SPLASH GUARD
** MACHINE SUBJECT TO OCEANFREIGHT SURCHARGE
** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
