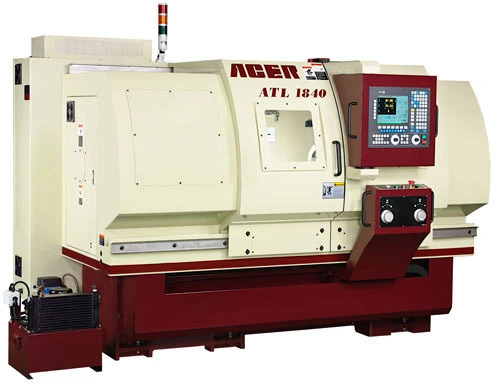

ACER ATL 1840, FAGOR 8055 i FL-TC
FEATURES:
* 10 HP SPINDLE MOTOR FOR 3 PHASE 60 HZ WIRING
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY, GROUND GEARS AND SPINDLE
* 3 GEAR RANGES: 33 - 3100 RPM
* D 1-6 CAMLOCK WITH 2" SPINDLE BORE
* "FAGOR" 8055 FL-TC CNC CONTROL
* CONSTANT SURFACE SPEED
* MANUAL - TEACH - CNC MODES
* DUAL MPG HANDWHEEL
* C3 BALL SCREW ON X-AXIS & C5 BALL SCREW ON Z-AXIS
* LASER CALIBRATION ON ALL AXES
SPECIFICATIONS:
GENERAL CAPACITY:
SWING OVER BED......................................... 18.11"
CENTER HEIGHT.......................................... 9.06"
DISTANCE BETWEEN CENTERS............................... 35.43"
WIDTH OF BED........................................... 13.78"
MAX. CUTTING DIAMETER.................................. 18.11"
HEADSTOCK:
SPINDLE NOSE........................................... D1-6
SPINDLE BORE........................................... 2.20"
RANGE OF SPINDLE SPEED (3 RANGES)
HIGH................................................... 3100 - 681 RPM
MEDIUM................................................. 680 - 15 RPM
LOW.................................................... 152 - 33 RPM
CROSS-SLIDE AND CARRIAGE:
CROSS SLIDE TRAVEL (X-AXIS)............................ 11.02"
LONGITUDINAL TRAVEL (Z-AXIS)........................... 31.89"
AC SERVO (X-AXIS)...................................... 6.3 NM
AC SERVO (Z-AXIS0...................................... 6.3 NM
DIAMETER OF BALL SCREW (X-AXIS)........................ .98"
DIAMETER OF BALL SCREW (Z-AXIS)........................ 1.57"
RAPID TRAVEL SPEED (X-AXIS)............................ 196.85 IPM
RAPID TRAVEL SPEED (Z-AXIS)............................ 275.59 IPM
TURRET:
TOOL STATION........................................... MANUAL 4-WAY TOOL POST
SIZE OF CUTTING TOOL................................... .98"
TAILSTOCK:
TAILSTOCK QUILL TRAVEL................................. 6.69"
TAILSTOCK QUILL DIAMETER............................... 2.95"
TAPER OF TAILSTOCK CENTER.............................. MT #5
POWER:
MAIN SPINDLE MOTOR..................................... 10 HP
COOLANT PUMP........................................... 1/6 HP
APPROX. MACHINE WEIGHT................................. 6380 LBS
APPROX. SHIPPING WEIGHT................................ 7260 LBS
SHIPPING DIMENSIONS.................................... 113" X 80.71" X 83.46"
STANDARD ACCESSORIES (INCLUDED):
HALOGEN WORK LIGHT COOLANT SYSTEM
TOOL BOX WITH TOOLS AUTOMATIC LUBRICATION SYSTEM
FULLY ENCLOSED SPLASH GUARD MANUAL TAILSTOCK
CONTROL CAPABILITIES:
USE AS A DRO FOR MANUAL MODE POWERFUL CNC FULL AUTO MODE
NO PROGRAMMING EXPERIENCE REQUIRED ELECTRIC HANDWHEEL FOR SEMI-AUTO MODE
PROGRAM IN TEACH MODE CONVERSATIONAL OR G-CODE PROGRAMMING
PROGRAM W/ CANNED CYCLES MINIMUM SET-UP TIME
PRICE:
ACER ATL 1740 FLAT BED CNC TEACH LATHE
OPTIONAL ACCESSORIES:
V8 HYDRAULIC TURRET (LS160) W/ HOLDER
PROGRAMMABLE SPINDLE RPM
PAYMENT TERMS:
30% DOWN PAYMENT WITH PURCHASE ORDER
BALANCE NET 30 UPON CREDIT APPROVAL
*** ALL PRICES ABOVE ARE BASED ON FOB PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
