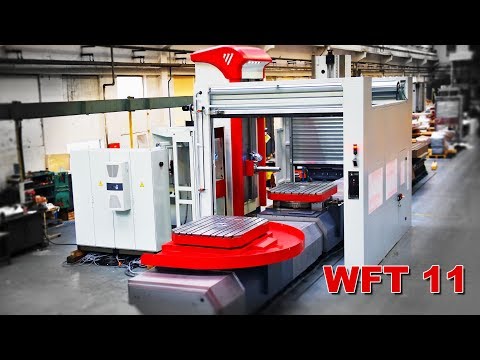

FERMAT WFT 11 W Twin Pallets CNC Precision Horizontal Boring Mill
Have one to sell?
ConditionNew
New
Twin Pallet Sysstem
2) Full B-axis high precision Pallets
Table-type horizontal medium-size mill, with longitudinal travel of column and cross-wise travel of table, designed for machining of workpieces of up to 10 tons.
Spindle diameter 100 mm or 110 mm; spindle travel 730 mm.
Optional version with longer X axis (3, 4, or 5 meters) for larger workpieces weighing up to 20 metric tons.
It is possible to equip the pallet change system to speed up processing.
Suitable for machining both longer weldments and complex welded frames.
Spindle diameter mm 100/110
Spindle taper SK 50 (ISO50) / BT50 / CAT50 / BIG+
Spindle speed (max.) rpm 4000
MUST SPECIFY WITH SALES AGENT;
Main Power HEIDENHAIN o SIEMENS (S1 /S6 -40%) kW 19,5 / 29,3; 31 / 46,5
Max. Torque Heidenhain o SIEMENS (S1 / S6-40%) Nm 951 / 1426; 1416 / 2124
Main Power CNC FANUC (S1 / S3-60%) kW 22 / 26; 30 / 37
Max. Torque FANUC (S1 / S3-60%) Nm 823 / 971; 1370 / 1692
X-axis Cross Travel of Table mm 2000 / 3000
Y-axis Vertical Travel of Headstock mm 1250 / 1700 / 2000
Z-axis Longitudinal Travel of Column mm 1250 / 1700
W-axis Spindle Travel mm 730
Rapid Feed X, Y mm/min. 8000
Rapid Feed Z, W mm/min. 8000
Rapid Feed B rpm 2 (opt. 4)
Max. Table Load kg 10000
Table Size mm 1200 x 1200 / 1200 x 1400 / 1400 x 1600 / 1400 x 1800 / 1600 x 1600 / 1600 x 1800
Please Phone 440-359-2655
