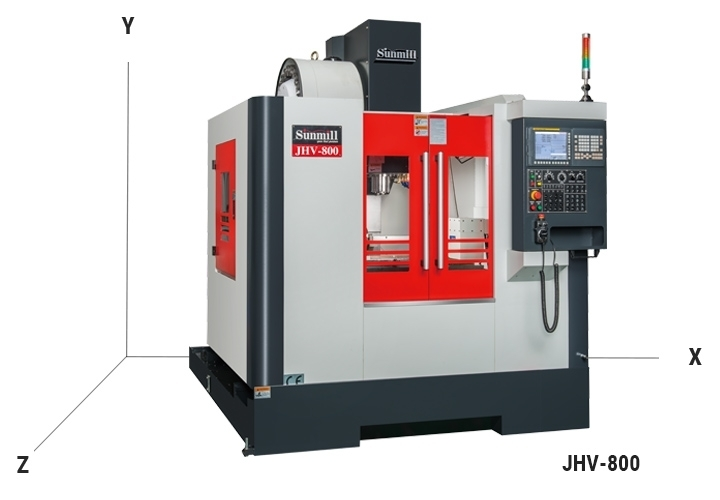

Sunmill Model “JHV-800” High Speed CNC Vertical Machining Center

Travel:
X-Axis.......................................................... 31.49”
Y-Axis.......................................................... 19.68”
Z-Axis.......................................................... 22.83”
Spindle Nose to Table........................................... 4.72” – 27.55”

Table:
Table Size Overall............................................. 35.43” x 19.68”
T Slots (number x width x pitch)............................... 5 x 0.71” x 3.93”
Max Table Load................................................. 1,100 Lbs.

Spindle:
Spindle Taper.................................................. CT-40
Pull Stud...................................................... CT-40
Max Spindle Speed.............................................. 10,000 RPM
Horsepower..................................................... 10/15 HP
Transmission................................................... Belt Drive

Feed Rates:
Rapid Traverse X, Y, Z Axis.................................... 1181 IPM, 1181 IPM, 944 IPM
Feed Rate X, Y, Z-Axis......................................... 0.04 - 590 IPM (1 – 15000 mm/min)

Automatic Tool Changer:
Magazine Capacity.............................................. 24 Tools
Maximum Tool Length............................................ 9.84”
Maximum Tool Diameter.......................................... 2.95”
Without Adjacent Tool.......................................... 5.90”
Maximum Tool Weight............................................ 15 Lbs.
Tool Change Time (Tool to Tool)................................ 2.5 Seconds
Tool Change Time (Chip to Chip)................................ 5 Seconds
Method of Tool Selection....................................... Random, Bi-Directional Rotation

Machine Size:
Floor Area (L x W x H)......................................... 97” x 102” x 111”
Net Weight..................................................... 9,920 lbs.
Air Required................................................... 85 psi
Power required................................................. 220 Volt AC, 3 Phase, 60 Hz, 25 KVA

Features:
Controlled Axis (X, Y, Z) Simultaneous 3 Axis Control
Custom Macro B Positioning (G00)
Linear Interpolation (G01) Multi Quadrant Circular Interpolation
Feed Rate Override: (10% Increments) 0-150% Rapid Traverse Override: FO, 25%, 50%, 100%
Automatic Acceleration/Deceleration Exact Stop/Cutting Mode: (G09, G61, G63, G64)
Dwell (G04) Reference Point Return: (G27, G28, G29 Manual)
Work Coordinate System Change (G92) Absolute/Incremental Programming (G90, G91)
Decimal Point Input S Code Output
T Code Output M Code Output
Program Number/Program Name Program Number Search
Main Program / Subprogram Rigid Tapping
Optional Block Skip Radius Designation
Tool Length Compensation (G43, G44, G49) Tool Offset Amount Memory 99 Pairs
Backlash Compensation Follow - Up
Mirror Image Cycle Start / Feed Hold
Buffer Register Program Stop/Program End (M00, M01, M02, M30)
Reset / Rewind Manual Continuous Feed
Incremental Feed Manual Absolute On / Off
Machine Lock Auxiliary Function Lock
Dry Run Single Block
Data Protection Key Part Program Storage & Editing
Background Editing Registered Programs (63)
Self - Diagnosis Function Emergency Stop
Stored Stroke Check 1 Interlock
External Power On / Off Canned Cycles (G73, G74, G76, G80, G89)
Cutter Compensation C (G40-G42) Stored Pitch Error Compensation
Manual Pulse Generator 10.4” LCD Control Monitor
Input / Output Interface Inch / Metric Conversion
Skip Function Second Reference Point Return

Machine Features:
*Linear Guideway design provides rapid and precision machining
*Belt Driven 10,000 RPM Spindle for optimum metal removal
*Max Table Load Capacity of 1,100 Lbs. (500 Kg)
*24 Tool Magazine Dual Arm ATC
*CAT 40 Taper (BT-40 Optional)
*Fully enclosed Splashguard
*Mating surfaces are precision hand scraped
*Pre-tensioned C3 Ball Screws on X,Y,Z Axes
*Automatic lubrication system
*Major components are ribbed and reinforced for outstanding stability
*Refrigerated Spindle Chiller for precision performance

Equipped With:
Oi-MF Control Auto Lube System
24 Tool Magazine ATC Arm Type Spindle Chiller
Work Light Spindle Coolant System
Screw Type Chip Conveyor Spindle Load Meter
Full Enclosure Spindle RPM Meter
Portable MPG Unit (Electronic Hand Wheel) Coolant Gun
Air Gun Door Lock
USB Port Alarm Light
Operations, Control and Maintenance Manuals CE Safety Door Interlock
Spindle Air Blow Toolbox
Leveling Bolts, Pads & Nuts Telescopic Way Covers
Rigid Tapping

Optional Features:

Disc Type Oil Skimmer
Additional Chip Flushing
A/C for Electrical Cabinet
Roller Guideways
Spindle Motor Upgrade 15/20 HP
Chain Type Chip Conveyor
Direct Drive Spindle
