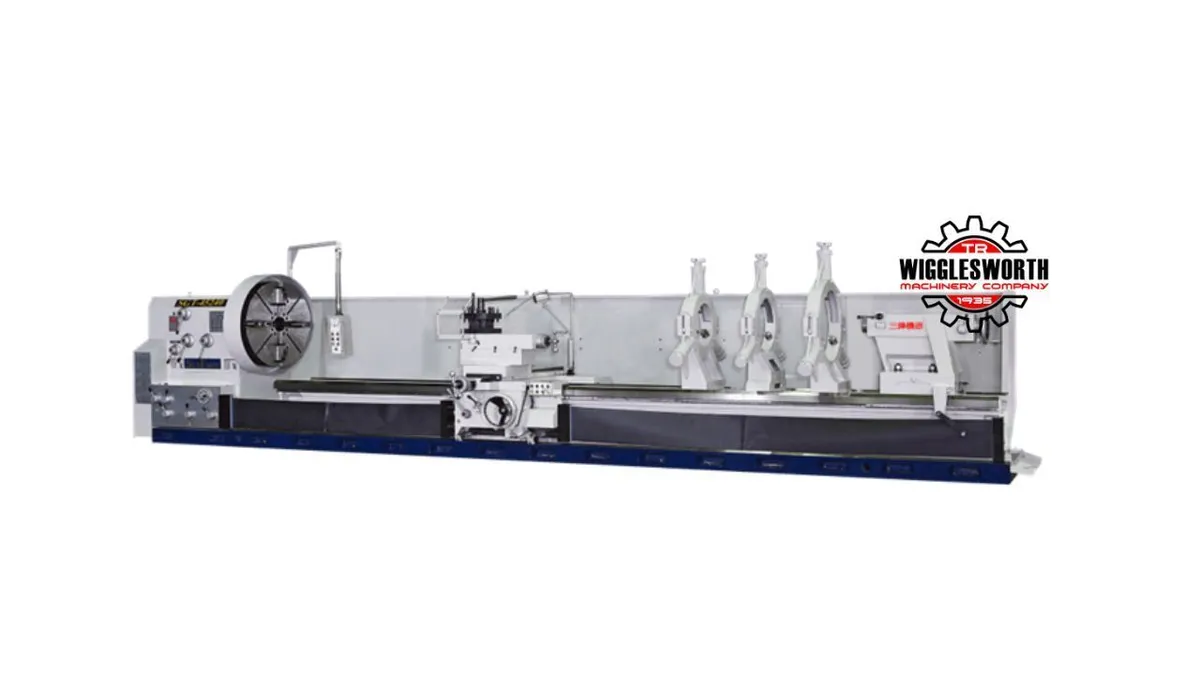

45.6" x 275" Sun Firm SGT-45280 High Precision Heavy Duty Flat Bed Lathe

The Sun Firm SGT-45280 is designed to meet the demands of heavy cutting and interrupted cuts and give long term accuracies with excellent surface finishes. Stringent manufacturing processes and a rigid design is combined with advanced state of the art technology to give a cost effective solution to your turning needs.

FEATURES:

• Large 6” Bar Capacity
• Powerful 20 HP Motor
• Large 45.6” Swing Over Bed
• Distance Between Centers 275”
• Heavy Duty Tail Stock Body and Quill

The Headstock is a precision machined close grain casting assuring precise alignment of the critical spindle bores. Mounted on the same plain as the tailstock to ensure perfect alignment and center height the Spindle is not affected by the bed temperature. The Spindle is supported by high precision bearings suitable for both heavy duty and precision cutting. The Spindle has 12 speeds available.

The Gearbox is entirely enclosed and provides a range of feeds for heavy duty turning and thread cutting (Inch, Metric, Module and Diametrical Pitch). All gears and shafts are made of Ni-Cr-Mo steel hardened and ground to the closest tolerances

The Carriage and Apron uses automatic lubrication with locked safety device to protect threads. A Compound Rest can be fixed on the Cross-Slide anywhere for convenient turning work applications

The Heavy Duty Tailstock is robustly built. Tracking on ground ways that are cast in the machine bed to insure positive alignment to the spindle center line. The quill travel is a generous 13.38” and the taper is Morse #6.

Coolant is efficiently delivered to the cutting tool

CAPACITY
Max. Swing Over Bed................................ 45.6”
Max. Swing Over Cross-Slide.................... 33.4”
Max. Swing Over the Gap.......................... 66.9”
Distance between Centers........................ 275.6”
SPINDLE:
Spindle Speeds........................................... 4 ~ 400 RPM
Number of Spindle Speeds........................ 12 Changes
Spindle Nose............................................... A2-11
Spindle Bore............................................... 6.0”
Chuck.......................................................... 4 Jaw Independent
Spindle Power............................................. 20 HP
BED:
Width of Bed.............................................. 26.1”
Width of Bed Base.................................... 38.5”
CARRIAGE:
Cross-Slide Travel..................................... 25”
Compound Rest Travel............................. 16.53”
Rapid Traverse.......................................... 80 IPM
TAILSTOCK:
Quill Diameter........................................... 4.9”
Quill Travel................................................ 13.38”
Quill Taper................................................. MT # 6
DIMENSIONS:
Floor Space (L x W x H)........................... 380” x 80” x 80”
Gross Weight............................................ 32,650 Lbs.

STANDARD ACCESSORIES:
1 pc Tool Post Wrench
1 set Toolbox
1 set Anchor Bolts & Block
2 pcs Center MT #6
1 pc Work light

TERMS AND CONDITIONS:
Installation of your machine will be completed by your local Distributor’s Service Technicians and backed by BMT Machinery upon confirmation that the machine has been positioned on leveling pads and ready for hookup.

Service and after Installation Support is a High priority at BMT Machinery. Our Distributors provide qualified service technicians, and our Distributors are fully supported by BMT Machinery Service and Parts staff. Customers are expected to assist in troubleshooting and part exchanges.

One Year Parts New Machine Warranty. If any part on the machine fails under normal operation and proves to be defective in material or workmanship, BMT Machinery will provide it free of charge for a period of twelve (12) months from date of installation. All FANUC components carry a full two (2) year parts warranty.

Payment Terms: are 40% down with order, 50% prior to shipping and balance due upon installation or 30 days after delivery, whichever comes first.

Delivery: 150-180 Days from receipt of purchase order and deposit.

Price is Valid for Thirty (30) days from date of quote.
Specifications are subject to change without notice.
