Maximize Productivity and Profits
with Dah Lih DMV-800
• The traveling column structure and fixed table design ensures the machine travel is not
affected-regardless of workpiece weight variation. This assures consistent accuracy at all times.
• The major casting parts are designed and analyzed by advanced "Finite Element Analysis" for optimum structural rigidity a n d accuracy.
• Linear quide ways on 3 axes meet requirements for both high rigidity and high speed feeding.
• The 32 tool capacity magazine is isolated from
the machining a r e a which prevents tool
contamination from chips or coolant.
• Swing type APC permits fast workpiece change.

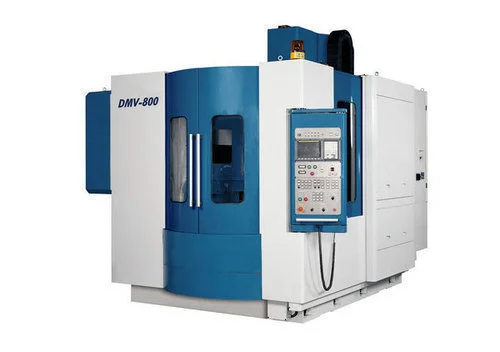

Dah Lih DMV-800
• The traveling column structure and fixed table design ensures the machine travel is not
affected-regardless of workpiece weight variation. This assures consistent accuracy at all times.
• The major casting parts are designed and analyzed by advanced "Finite Element Analysis" for optimum structural rigidity a n d accuracy.
• Linear quide ways on 3 axes meet requirements for both high rigidity and high speed feeding.
• The 32 tool capacity magazine is isolated from
the machining a r e a which prevents tool
contamination from chips or coolant.
• Swing type APC permits fast workpiece change.
Specifications:
Workbench
Stationary Working Table Area.................................. 35.50" x 22.05"
T-slot (width x number of slots x pitch).................... 18 x 3 x 150 mm
Maximum load of workbench.................................... 1,322.77lbs
Travel
X axis........................................................................... 35.50"
Y axis........................................................................... 22.05"
Z axis........................................................................... 22.05"
Spindle nose to worktable surface............................ 5.90" ~ 27.95"
Feed
Cutting feed............................................................... 10,000 mm/min
X-axis speed............................................................... 30m/min
Y-axis speed............................................................... 30m/min
Z-axis speed............................................................... 24m/min
Minimum feed............................................................ 0.001 mm
Spindle
Spindle taper............................................................. NT.40
Spindle speed........................................................... 8,000 rpm
Cooling/lubricating method................................ Oil Cooling / Grease Lubrication
Automatic Tool Changer (ATC)
Handle type....................................................... BT40
Tool storage capacity....................................... 32 sticks
Tool length........................................................ 11.81"
Tool weight....................................................... 8KG
Tool selection method..................................... Arbitrary
Motor(30min / Continuous rating)................. 11kw/7.5kw
CNC controller................................................. FANUC 0iMD
Other specifications:
Electrical Requierments................................ 30 KVA
Barometric pressure demand....................... 6kg/cm²
Cutting pump................................................. 3/4HP
Cutting Oil Tank Capacity.............................. 105.66 Gal
Floor area....................................................... 106.30" x 169.29"
Machine net weight....................................... 24,250.85lbs
Standard accessories
Fully enclosed shield
Rotary exchange table
Rotary control panel
Spindle cooler
Heat exchanger
Mobile manual pulse wave generator
Ring spray device
Semi-closed guard
RS-232 interface
Automatic power off function
Warning Light
Automatic lubrication device
Tools and Toolboxes
Reserve fuse
Rigid tapping
Optional accessories
10,000 / 12,000 / 15,000 rpm spindle
Crawler Chip Conveyor and Chip Cart
Spindle through cooling device with filter
Deep hole drilling
4th axis control
Base flushing device
Spiral Chip Conveyor
