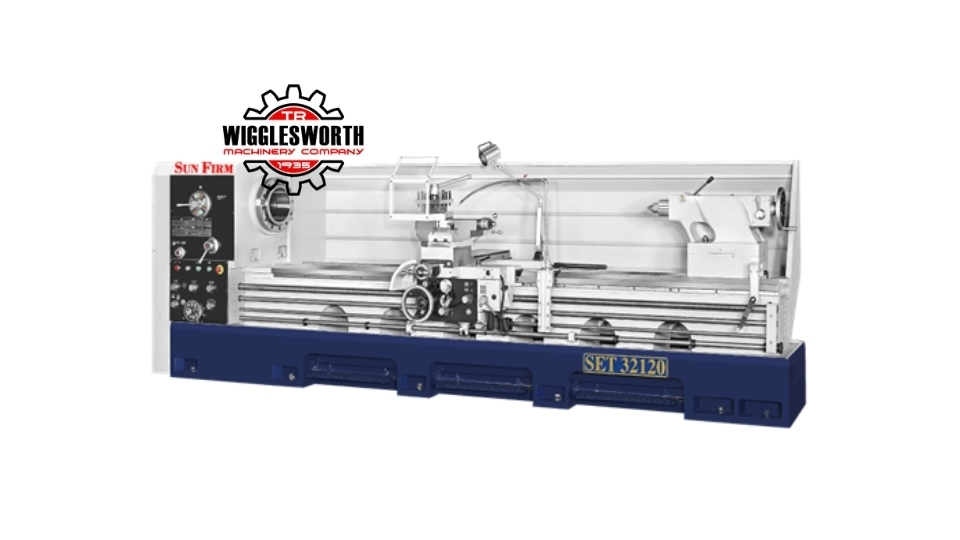

Sun Firm SET-32120 with 118” Between Centers High Precision Heavy Duty Flat Bed Lathe

The Sun Firm SET-32120 is designed to meet the demands of heavy cutting and interrupted cuts and give long term accuracies with excellent surface finishes. Stringent manufacturing processes and a rigid design is combined with advanced state of the art technology to give a cost effective solution to your turning needs.

Features
• Large 4” Bar Capacity
• Powerful 15 HP Motor
• Large 32” Swing Over Bed
• Distance Between Centers 118”
• Heavy Duty Tail Stock Body and Quill

Specifications:

CAPACITY:
Max. Swing Over Bed......................................................... 32.6”
Max. Swing Over Cross-Slide............................................ 23.6”
Max. Swing Over the Gap.................................................. 43.3”
Distance between Centers ............................................... 118.1”

SPINDLE:
Spindle Speed.................................................................... 15 ~ 1000 RPM
Number of Spindle Speeds .............................................. 12 Changes
Spindle Nose...................................................................... A2-8
Spindle Bore...................................................................... 4.1”
Chuck.................................................................................. 4 Jaw Independent
Spindle Power.................................................................... 15 HP

BED:
Width of Bed.................................................................... 18.1”
Width of Bed Base........................................................... 26.7”

CARRIAGE:
Cross-Slide Trave............................................................ 16.73”
Compound Rest Travel................................................... 9.84”

TAILSTOCK:
Quill Diameter. ................................................................. 3.74”
Quill Travel ....................................................................... 9.05”
Quill Taper......................................................................... MT # 5
DIMENSIONS:
Floor Space (L x W x H)................................................... 220” x 80” x 80”
Gross Weight.................................................................... 14,550 Lbs.

Standard Accessories:
1 pc Tool Post Wrench
1 set Toolbox
1 set Anchor Bolt & Block
2 pcs Center MT #5
1 pc Work light

Optional Accessories:

Spindle Nose A2-11
Spindle Nose A2-15
Steady rest 50-300 mm
Steady rest 150-450 mm

TERMS AND CONDITIONS:

Installation of your machine will be completed by your local Distributor’s Service Technicians and backed by BMT Machinery upon confirmation that the machine has been positioned on leveling pads and ready for hookup.

Service and after Installation Support is a High priority at BMT Machinery. Our Distributors provide qualified service technicians, and our Distributors are fully supported by BMT Machinery Service and Parts staff. Customers are expected to assist in troubleshooting and part exchanges.

One Year Parts New Machine Warranty. If any part on the machine fails under normal operation and proves to be defective in material or workmanship, BMT Machinery will provide it free of charge for a period of twelve (12) months from date of installation.

Payment Terms: are 40% down with order, 50% prior to shipping and balance due upon installation or 30 days after delivery, whichever comes first.

Delivery: 90 Days from receipt of purchase order and deposit.

Price is Valid for Thirty (30) days from date of quote. Specifications are subject to change without notice.
