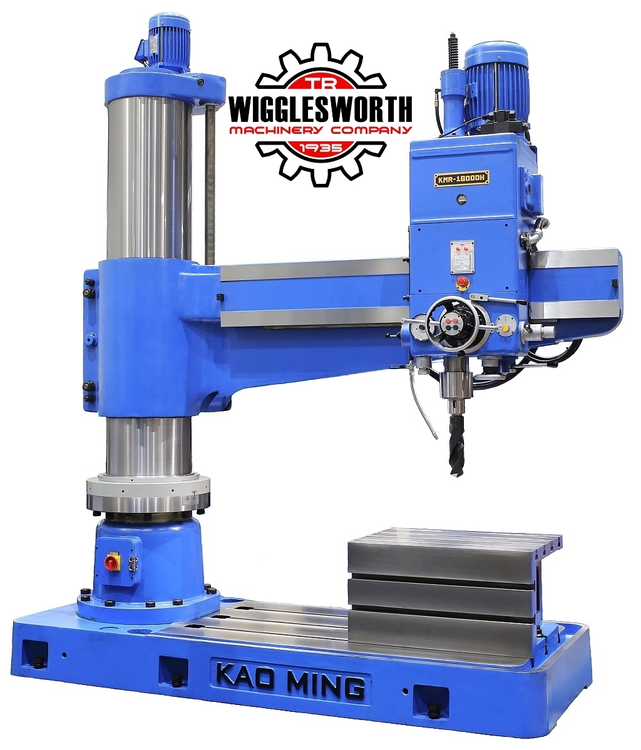

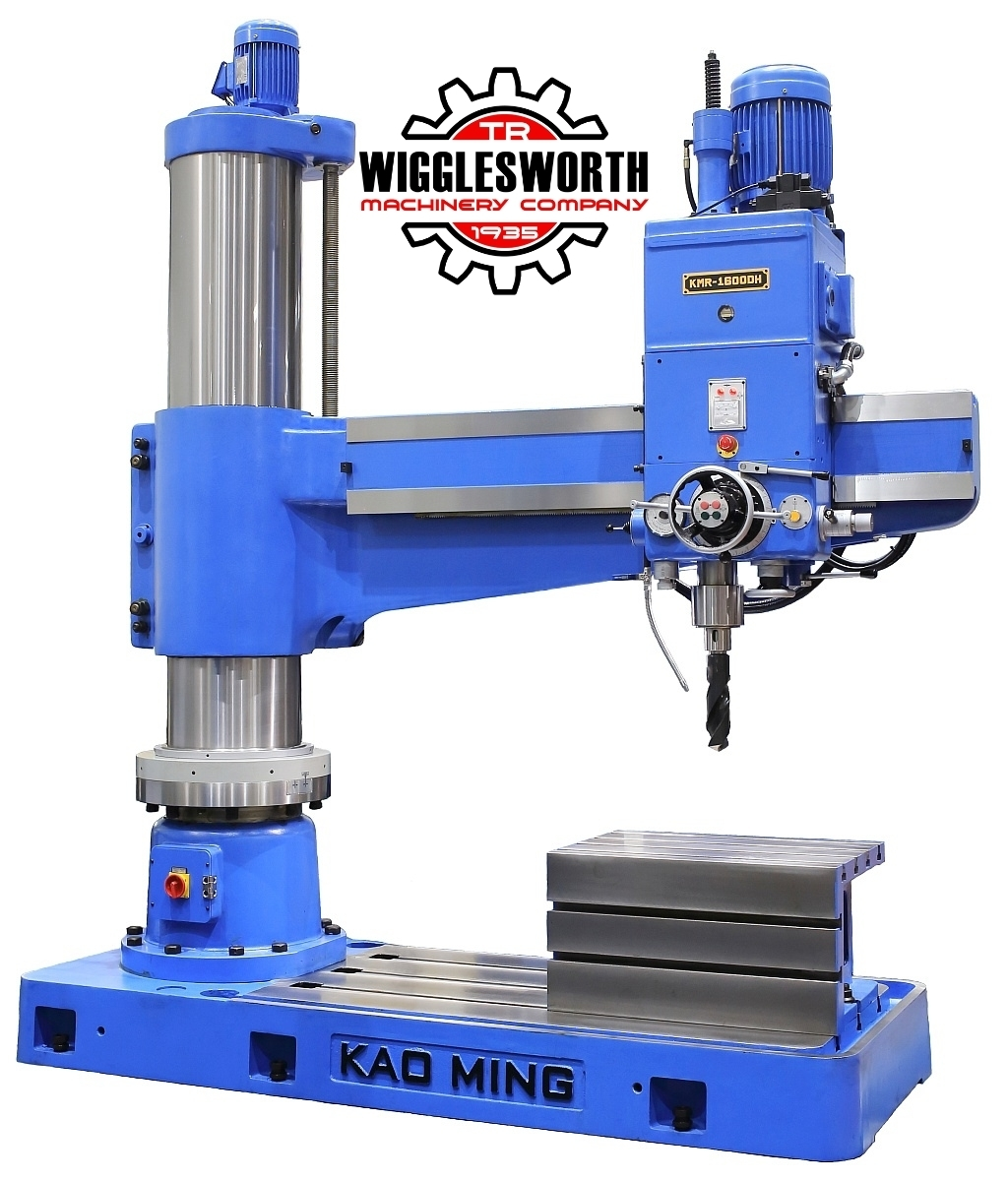

KAO MING Model KMR-1600DH "NEW" Radial Drill Press

KAO MING Model KMR-1600DH

Features:
• Compact Handles & Push Buttons are simply designed and easy to operate.
• A hydraulic system is used to change the Spindle Speed through 12 Spindle Speed Ranges. Set Spindle Speeds work in conjunction with Automatic Feed capability allowing to set specific feed rates for drilling various materials: Aluminum, Alloy Steel, etc.
• A multiple disc clutch allows for starting and stopping the spindle in order to repeat normal and reverse operations smoothly.
• Specific drilling depth setting capability.

Distance Between Spindle Center and Column Center

Max. Distance......................................................................................... 70 21/32”
Min. Distance.......................................................................................... 22 1/4”

Distance Between Spindle Center and Column Face
Max. Distance......................................................................................... 63”
Min. Distance.......................................................................................... 14 9/16”

Column Diameter.................................................................................... 15 3/8”

Column Height........................................................................................ 117 3/4”

Distance from Spindle Nose to Base Surface
Max. Distance......................................................................................... 61 13/16”
Min. Distance.......................................................................................... 17 1/8”

Max. Height from Spindle Head to Base Bottom................................. 131 17/32”

Base Height............................................................................................. 9 1/16”

Base Work Area...................................................................................... 64 11/16” x 36 5/8”

Base Floor Space................................................................................... 94 1/2” x 37 3/8”

Floor Space............................................................................................. 107 11/16” x 49 1/4”

Spindle Head Longitudinal Travel.......................................................... 48 7/16”

Radial Arm Vertical Travel...................................................................... 32 7/8”

Spindle Travel.......................................................................................... 11 3/4”

Morse Taper in Spindle........................................................................... No. 5
Spindle Speed Range.............................................................................. 12 Steps 30 ~ 1,580 RPM
Available Feed Rates Per Revolution..................................................... 0.0023” Per Rev. ~ 0.044” Per Rev.
Main Spindle Motor................................................................................ 7.5 HP
Radial Arm Elevating Motor.................................................................... 2 HP
Machine Weight....................................................................................... 11,130 Lbs.
Machine Dimension................................................................................. 108“ x 46“ x 117“

Request a detailed price proposal for additional delivery information as well as our terms and conditions.
