* Traub TX8I CNC Control
* Bar Loader with 32mm Channel Pusher
* Excellent Assortment of Tooling

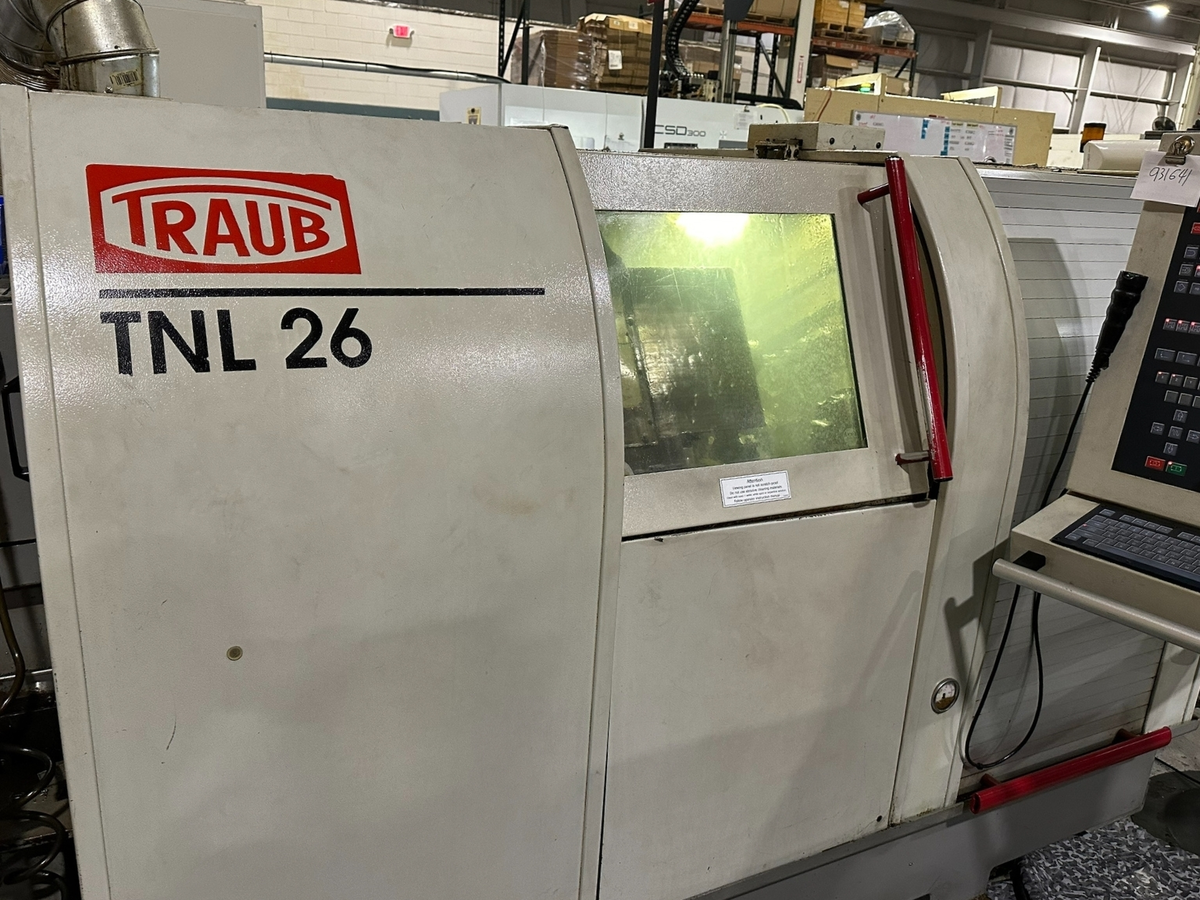

Traub TNL-26
Specifications:
CNC Control:........................... TX8i
Bar capacity (ms-cs):.................. 1.023"
Turning length max.:................... 9.8"
Power at 25% / 100%:................... 10.7/6.7 kW
Speed max.:............................ 8000 rpm
Main Spindle Axis:..................... C-axis
Tool carriers / stations:.............. 4 / 34
Travel X:.............................. 1.9"
Travel Y:.............................. 1.57 +/-.78"
Travel Z:.............................. 8.85"
Front attachment:...................... optional
Back working attachment:................ optional
Dimensions (L x W x H):................ 10' x 4 1/4' x 5.5'
Bar capacity: ......................... 1.023"
Features:
Bar loader will come with 32mm channel set and pusher.
Model: FMB Turbo 5-42 (12’ bar capacity).
Machine will come with the following tool holders:
(9) 16mm shank stick tool holders
(2) ER25 Front / Rear working unit holders
(2) ER16 Front / Rear working unit holders
(2) 16mm E-Mill Front / Rear working unit holders
The guide bush assembly will be a 25mm rotating assembly which uses CD25 guide bushings.
