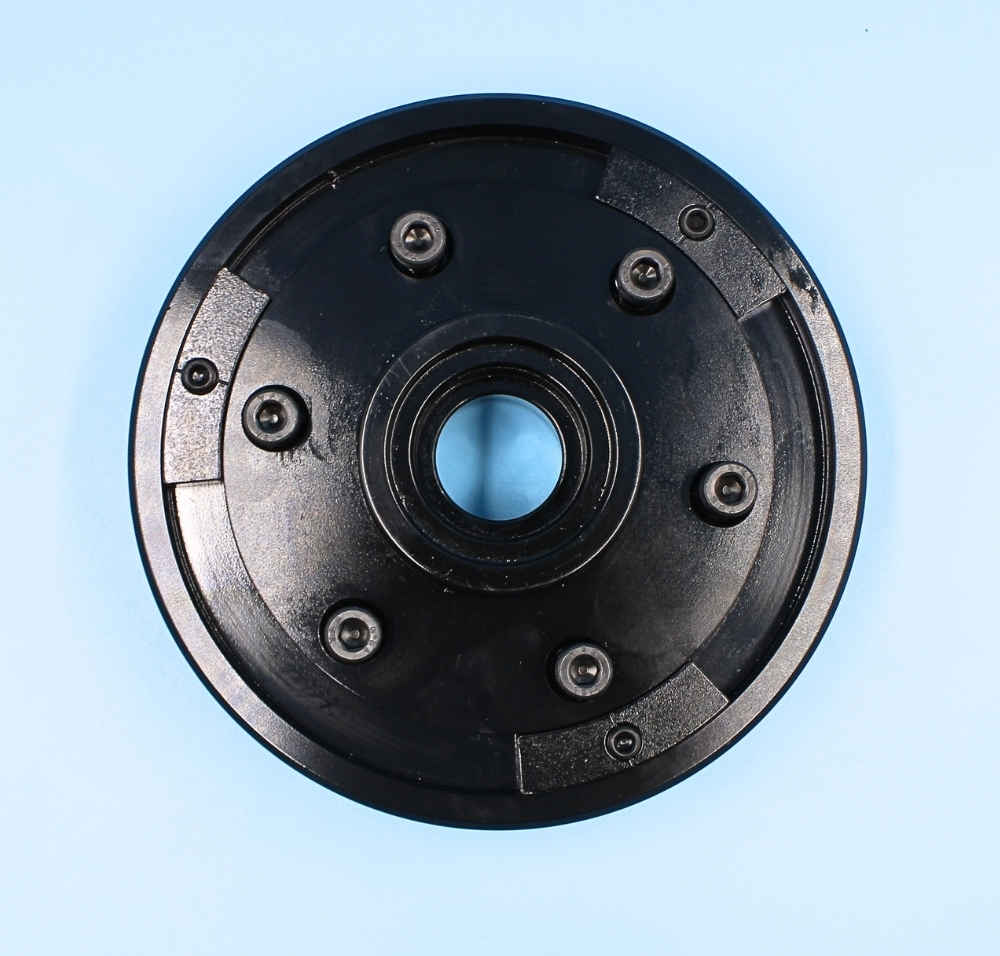

Kent 38mm Wheel Flange for 63, 84, 510

This wheel flange supports grinding wheels that have a 5" through hole for the center hub to be mounted, and we support 1-1/2" thick wheels. Thinner wheels can be used up to an inch thick, but it is recommended for longer life of the wheel to use a larger thickness, which also removes the need for any potential shimming and balancing inconsistencies with recessed wheel hubs.
The Maximum Wheel Diameter for the KGS-84AHD is 14"

The dimensions are as follows:
38mm Wheel Flange for KGS-63/84/510

OD: 175mm
Thickness of flange: 70mm
Minimum wheel thickness 24mm
Maximum wheel thickness 38.1mm
Minimum Taper Diameter: 29.5mm
Maximum Taper Diameter: 37.5mm
Taper Depth: 50.8mm
