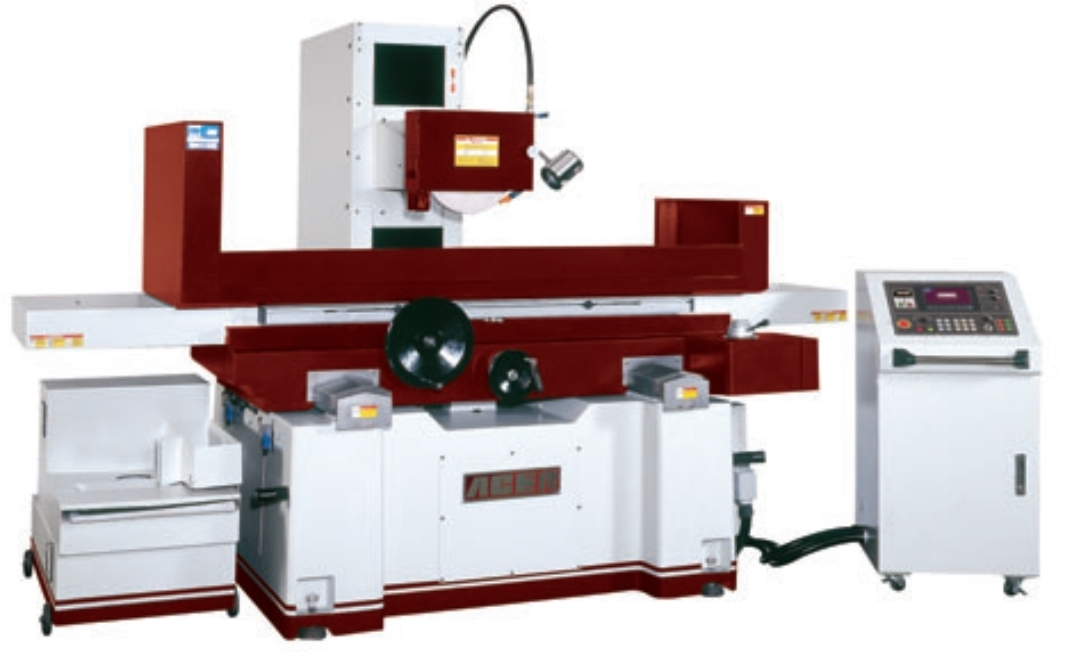

Acer Supra-1632 PD High Precision Surface Grinder
GRINDERS, SURFACE, RECIPROC. TABLE (HOR. SPDL.)* 3 axes Auto Surface & Plunge Grinding System
* PLC Control System w/ 7.2" Touch Panel Display
* "Turcite-B" Coated Precision Guideways Reduce Metal Wear
* Precision Cross-feed Ballscrew Ensures Zero Backlash
* Heavy Duty Spindle w/ 2 Pairs of Class 7 precision Angular Contact Bearings
* Preset Table Speed for Fine Control of Table
FEATURES:
* PLC Control System w/ Touch Panel Display
* LED Screen Displays Oil Inadequacy, Downfeed Amount & Procedural Error
* "Turcite-B" Coated Precision Guideways Reduce Metal Wear
* Precision Cross-feed Ballscrew Ensures Zero Backlash
* Heavy Duty Spindle w/ 2 Pairs of Class 7 precision Angular Contact Bearings
* Stepping Motor on Downfeed System Ensures Accurate Downfeed Increments & Slow Elevation
* AC Motor on Rapid Elevation
* Preset Table Speed for Fine Control of Table
Specifications:
Table Size................................ 16" x 32"
Max. Grinding Length...................... 32"
Max. Grinding Width....................... 16.14"
Max Distance From Table to Spindle Center. 28.35"
Standard Magnetic Chuck Size.............. 15.75" x 31.5"
Longitudinal Travel of Table:
Hydraulic................................. 35"
Manual.................................... 36.61"
Infinitely Variable....................... 60hz, 5-25m/min ; 50hz, 5-20m/min
Cross Transverse Travel:
Auto Transverse Increment................. 0.04"~0.98"
Auto Constant Feeding Speed............... 0.79"~12.6"
Max Auto Transverse Travel................ 16.93"
Max Manual Transverse Travel.............. 18.11"
Handwheel per Revolution.................. 0.2"
Handwheel per Graduation.................. 0.0008"
Handwheel Vertical Infeed:
Auto Downfeed............................. 0.00004"~0.002"
Step Feed (Jogging)....................... 0.00004"
Rapid Travel (approx)..................... 5.91"
Slow Travel (approx)...................... 0.236"
Handwheel Revolution...................... 0.4"
Handwheel Graduation...................... 0.0002"
Spindle Drive:
Speed..................................... 60hz, 1,750RPM ; 50hz, 1,450RPM
Power Rating.............................. 7.5HP
Grinding Wheel:
Diameter.................................. 14"
Width..................................... 2"
Bore...................................... 5"
Motors:
Hydraulic................................. 3HPx6P
Crossfeed................................. 80Wx6P
Elevating................................. 1/4HPx6P
Dimensions:
Floor Space............................... 129.6" x 86.7" x 80.8"
Weight.................................... 8800 lbs
Rated Power (approx)...................... 11HP
Packing Dimensions........................ 110.3" x 90.2" x 87.5"
STANDARD ACCESSORIES: (Included)
* Coolant System & Paper Filter
* Manual Overhead Parallel Dresser
* 16"x32" Acer Electromagnetic Chuck & Chuck Control (Regular Pole)
Wheel Balancing Base Wheel Balancing Arbor
Grinding Wheel Wheel Flange
Table Mount Wheel Dresser Halogen Work Light
Toolbox w/ Tools Table Mount Splash Guard
Option Accessories:
1. "Acer" 16"x32" Electro Chuck & Chuck Control (Fine Pole)
2. "WALKER" 16"x32" Electro Chuck & Chuck Control (Fine Pole)
3. Hydraulic Parallel Dresser-Single Axis (Factory Installed)
4. Installation Fee on Hydraulic Parallel Dresser
5. Coolant System w/ Magnetic Separator & Paper Filter (1020+m4)
6. Extra Wheel Flange
7. "Newall" 2-Axis D.R.O. (0.0001" Resolution)
8. "Magnescale" 2-Axis D.R.O (0.00002" Resolution)
9. Bracket and Installation Fee on D.R.O.
TERMS:
ABOVE PRICES ARE BASED ON F.O.B. FULLERTON, CALIFORNIA
PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
