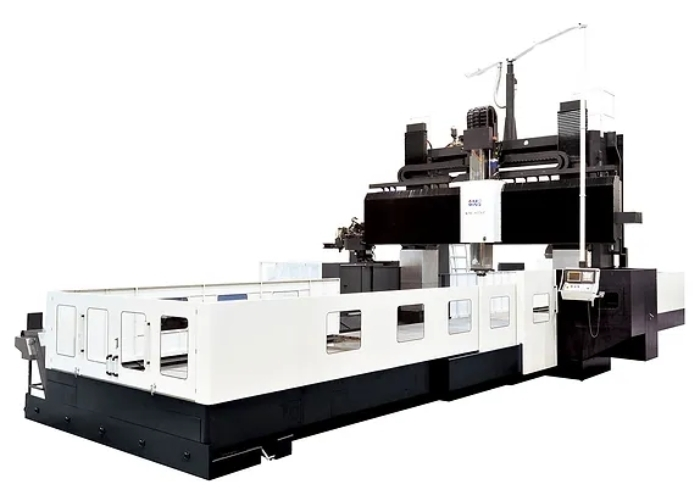

New 2025 KAO MING KMC-531EP Plano-Machining Center

Features:
* Double column design provides stability while heavy duty cutting
* Moveable Crossbeam (W-Axis) for increased rigidity for varied workpieces
* Multi-Face machining capability with Automatic Universal Head *Option
* Spindle Heads supported by rigid 15.75” x 15.75” Z-Axis Ram
* 2-Station ACC (Automatic Attachment Changer) Vertical to Horizontal Head Change
* All Ball Screws are Preloaded and Inner Cooled for excellent accuracy
* 6,000 RPM with Vertical Spindle (30/35 HP) . . 3,500 RPM with Vertical Spindle
Splashguard
* 60 Tool Magazine ATC . . . 90 Tool Magazine *Option
* Major components are heavily ribbed reinforced for outstanding stability
* Refrigerated Spindle Chiller

Specifications:

Travels:
Distance Between Houses............................... 147.6"
X-Axis................................................ 205.9"
Y-Axis................................................ 149.6"
Z-Axis................................................ 27.55"
W-Axis................................................ 43.3"
Distance From Table Surface to Spindle Nose........... 1.96" x 104.3"
Distance From Table Surface to Horiz. Spindle Center.. 5.07" x 71.02"

Table:
Table Working Surface(FxGxH)............................ 102.4" x 196.9"
Table Configuration(FxGxH).............................. 28(H8)x13x200mm
Max Table Load.......................................... 30,800 lbs

Spindle:
Vertical Speed.......................................... 6000rpm
Horiz. Speed............................................ 3500rpm
Spindle Taper........................................... ISO 50
Spindle Motor(Cont./30min/S3 25%)....................... AC 22/26/37
Max Spindle Torque(Cont./30min/S3 25%).................. 533/653/1009Nm

Feed Rate:
Rapid Traverse (X,Y,Z,W)................................ 315,393,393,118 IPM
Cutting Feed Rate....................................... 0.1~196 IPM

Automatic Tool Changer:
Tool Magazine Capacity.................................. 60
Max. Tool Diameter...................................... 4.92"
Max. Tool Length........................................ 15.7"
Max. Tool Width......................................... 55 lbs

Power:
Electrical Power Supply................................. 80KVA
Compressed Air.......................................... 5~7 kg/cm

Accuracy:
Positioning Accuracy.................................... 0.0004"/39.37"

Machine Size:
Machine Height.......................................... 255.9"
Floor Space............................................. 488.1" 301.1"

CNC Control: FANUC

Standard Accessories:
* Vertical and Horizontal Attachment Head
* Coolant Equipment
* Centralized Automatic Lubrication System
* Rigid Tapping
* Splash Guard
* Adjusting Tools and Box
* Manual and Electric Drawing
* Leveling and Foundation Fittings
* Work Light
* Spindle Cooling System (Chiller Unit)
* Alarm Lamp
* Air Blast
* Automatic Power Off
* Operation Finish Lamp
* Screw Type Conveyor
* Transformer (except 220v)
* Inner Cooled Ballscrew (Model 3m~5m)
* Control Cabinet Cooling System (Air Conditioner)
* Reinforced Foot-stand at Both Table End
* Slideway Cover
* Handrail with Ladder
* Magazine Safety Guard
* Electrical Cabinet Light
* Manual Tool Change and Foot Switch

Optional Accessories:
Z-Axis Travel 43.3” with W-Axis of Travel 59.1”
Automatic Universal Head
Extension Vertical Head
Spindle 8000 RPM
90 Tool ATC
