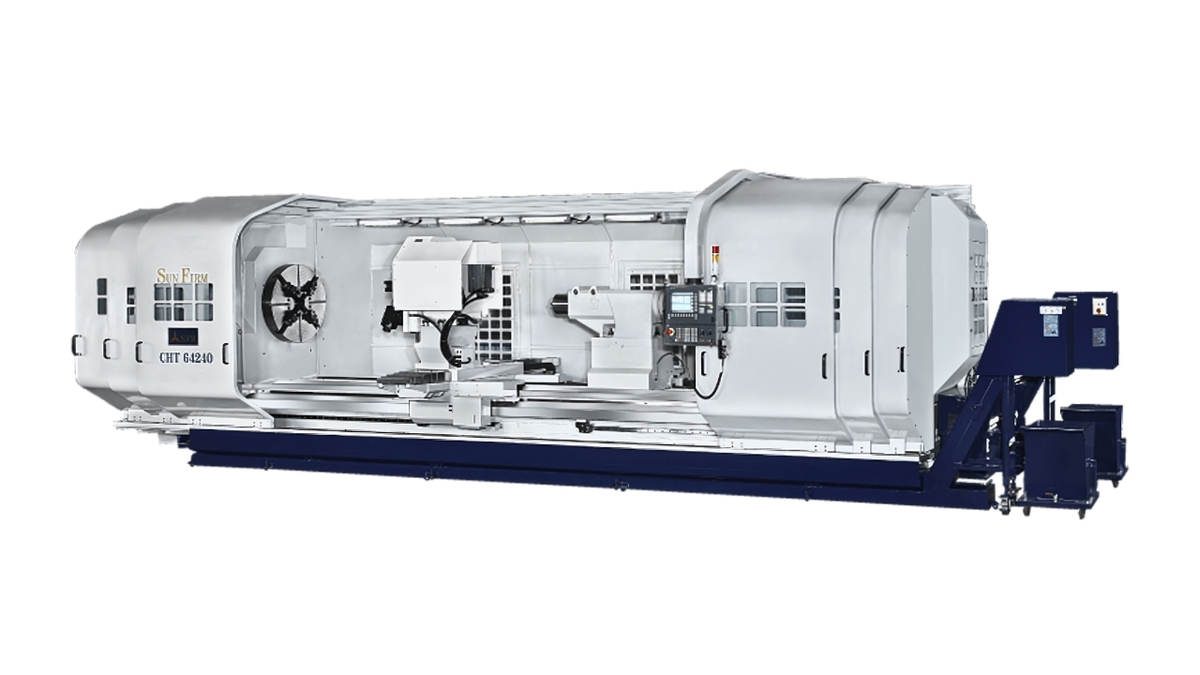

• Large 6” Spindle Bore
• Powerful 40/50 HP Motor
• Large 60” Swing Over Bed (43.3” Swing Over Cross Slide)
• Distance Between Centers 118.1” (3000 mm)
• Heavy Duty Tail Stock Body and Quill
Specifications:
CAPACITY:
Max. Swing Over Bed.......................... 60”
Max. Swing Over Cross-Slide.................. 43.3”
Distance between Centers..................... 118.1”
SPINDLE:
Spindle RPM.................................. 1 ~ 500 RPM
Number of Spindle Speeds..................... 4 Changes
Spindle Nose................................. A2-15
Spindle Bore................................ 6.0”
Chuck........................................ *4 Jaw Independent Options Available
Spindle Power................................ 40/50 HP 4 Speed Gearbox
TOOL STATION:
Number of Stations........................... 4 Way Tool Post
Turning Tool O.D. /I.D....................... 1.25”/2.3”
X-AXIS:
X Axis Travel................................ 35”
Rapid Traverse X Axis........................ 236” IPM
AC Servo Motor............................... 5.4 HP
Z-AXIS
Z Axis Travel................................ 130”
Rapid Traverse Z Axis........................ 236” IPM
AC Servo Motor............................... 9.4 HP
TAILSTOCK:
Quill Diameter............................... 7.8”
Quill Travel................................. 10”
Quill Taper.................................. MT # 6
DIMENSIONS:
Floor Space (L x W x H)...................... 281” x 121” x 97”
Gross Weight................................. 60,186 Lbs.
Standard Equipment/Accessories:
STANDARD EQUIPMENT:
*FANUC OiTF Controller
*Coolant System
*Color LCD Monitor
*4 Way Tool Post
*Hydraulic System
*Tailstock Body & Quill
*Automatic Lubrication System
*Operation and Maintenance Manuals
*2 Door Safety Guarding
*Leveling Bolts and Nuts
*Tool Post Wrench
*Toolbox
*Live Center MT #6
*Work light
