The NMS800 is the newest in Sensata | Newall’s range of premium readouts. The DRO hosts many productivity enhancing features that will increase machine tool efficiency. The unit is housed in a rugged, ergonomically designed casting. The DRO features all of the essential functions for milling, boring, turning, grinding, and general machining operations. "In Stock Now"

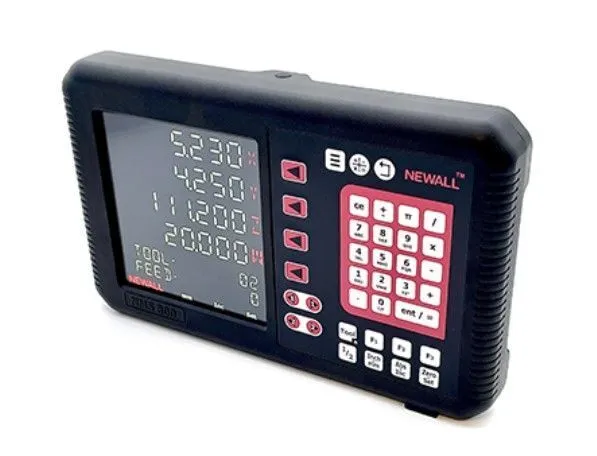

NMS800 Digital Readout
The NMS800 is the newest in Sensata | Newall’s range of premium readouts. The DRO hosts many productivity enhancing features that will increase machine tool efficiency.
The NMS800, when matched with Sensata | Newall’s Spherosyn Serial and Microsyn Serial encoders, provides years of maintenance free, trouble free performance. Sensata | Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest workshop conditions.
NMS800 Features Include:
Available in 2, 3, or 4 axes
Clean, crisp PMVA LCD display
Self-sensing encoder input
Long life membrane keypad
Linear and angular reading (model dependent)
Safe, low voltage power supply (UL)
Panel mount version available
Other Features:
Feed rate display
Bolt hole circle routine
Line hole routine
Arc contouring
Programmable memory / teach
Polar coordinates
Tool offsets
Taper calculations
Axis vectoring / summing
Linear and segmented error compensation
Undo function (move back up to eight steps if a mistake is made)
RS232 output
Multiple languages
General Purpose Functions:
2, 3 or 4 axes configuration
Inch/mm conversion
Four user definable function keys
Absolute/Incremental operation
Axis pre-set / zero reset
Zero approach warning (graphic and audio)
Feed-rate display
Newall Encoder auto-detection
RPM Display*
Angular readings*
Auto resolution detection*
Linear and segmented error compensation
Digifind / reference mark
Centre find (establish workpiece midpoints)
Programmable memory for datums and tools
Built in calculator
Undo function (move back up to eight steps)
USB port for loading new firmware and settings
Sleep mode
Scaling factor
Milling Specific Functions:
Bolthole circle / PCD calculations
Line hole / grid array calculations
Arc contouring
Pocket / island milling
Summing two encoders within the same plane
Lathe Specific Functions:
Radius / diameter readings
Tool offset library (50)
Taper calculation
Vectoring (requires 3 axes)
Encoder Compatibility:
Serial input: Sensata | Newall Spherosyn & Microsyn Serial, Propriety Signal not compatible with previous Sensata | Newall DRO Encoders (S2G/M2G)
Digital (TTL) Input: Sensata | Newall TTL Encoders. Many third party TTL encoders including Rotary.
Display:
PMVA LCD Screen - 127 mm x 122 mm - Membrane keypad with audible tactile feedback
Construction:
High pressure aluminum alloy cast front and rear panel
Dimensions:
Height: 187 mm (7.36"); Width: 306 mm (12.04"); Depth: 46.6 mm (1.83")
Electrical requirements:
Voltage of 100-240 VAC (47 - 63 Hz) to external PSU included
* Requires rotary encoder
