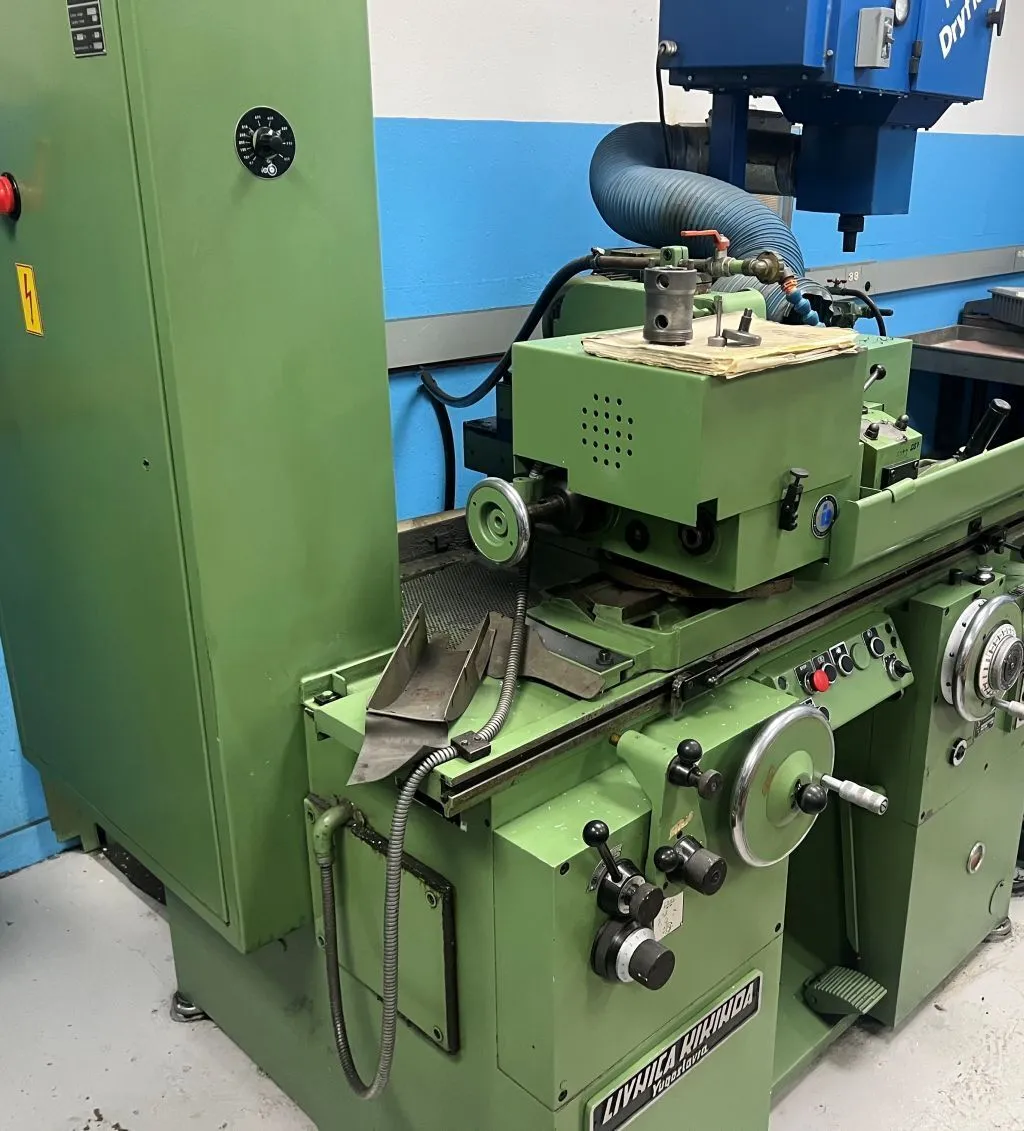

Kikinda A11-550 Plain OD Cylindrical Grinder

YEAR:1995
MODEL: A11-550

SPECIFICATIONS:
DISTANCE BETWEEN CENTERS.......................... 20"
HEIGHT OF CENTER.................................. 5 5/16
MAXIMUM GRINDING DIAMETER......................... 4"
MAXIMUM WEIGHT CAPACITY........................... 22 LBS
TAILSTOCK SPINDLE................................. 2 MT
WORKHEAD SPINDLE.................................. 2 MT
WORKHEAD SPEEDS (INFINITELY VARIABLE)............. 63-800 RPM
WHEELHEAD SPINDLE SPEEDS.......................... 1480/1840 RPM
MAXIMUM WORKHEAD SWIVEL........................... 90°
MAXIMUM WHEELHEAD SWIVEL.......................... -30° TO +30°
MAXIMUM TABLE SWIVEL.............................. 12° OR 10°
LONGITUDINAL TABLE FEEDS (INFINITELY VARIABLE).... 2-26 FT/MN
MAXIMUM GRINDING WHEEL (O.D. X W X H)
FOR TRAVERSE GRINDING............................. 16" X 1 9/16" X 5"
FOR PLUNGE GRINDING (MULTI WHEEL SET)............. 16" X 4" X 5"
MAXIMUM AUTOMATIC FEED (FROM DIA.)................ 0-.08" (VAR.)
INCREMENTS OF FEED DIAL (FROM DIA.)............... 0.0005"
INCREMENTS OF FINGERTIP FEED (FROM DIA.).......... 0.0002"
INCREMENTS OF MICRO STOP.......................... 0.00005"
GRINDING WHEEL MOTOR.............................. 4 HP
WORKHEAD MOTOR.................................... 0.8 HP
NET WEIGHT........................................ 5,100 LBS

FEATURES AND EQUIPMENT:

AUTOMATIC CYCLE CONTROL
HYDRAULIC TABLE TRAVERSE WITH ADJUSTABLE DWELL AT THE END OF THE STROKE
HYDRUALIC WHEEL FEED FOR PLUNGE-CUT AND TRAVERSE GRINDING
HYDRUALIC RAPID MOTION OF WHEEL-SLIDE WITH SINGLE LEVER CONTROL
WHEEL SLIDE MOUNTED ON ROLLERS FOR HIGHLY ACCURATE FEED MOTION WITHOUT PLAY OR WEAR
WHEELHEAD SWIVEL BASE ASSISTED BY A HYDRUALIC LIFT DEVICE
UNIVERSAL WORKHEAD MOUNTED ON A SWIVEL BASE IS CAPABLE OF EITHER DEAD CENTER OR LIVE CENTER GRINDING
LEVER OPERATED TAILSTOCK WITH PEDAL OPERATED HYDRUALIC CONTROL
AUTOMATIC LUBRICATION TO ALL SLIDING PARTS
COMPLETE COOLANT EQUIPMENT WITH TANK, PUMP, TUBING, AND SPLASH GUARDS
ALLEN BRADLEY ELECTRICS AND FUSES
WHEEL FLANGE X 3 TOTAL
FIXTRUE PLATE FOR WORKHEAD X 1PC
STOP W/DIAL INDICATOR X 1PC
TABLE STOPS X 2PC
OPEN STEADY RESTS X 2 TOTAL
STRAIGHT LINE DRESSER MOUNTED ON TAILSTOCK X 1PC
TORRIT DUST COLLECTION SYSTEM
