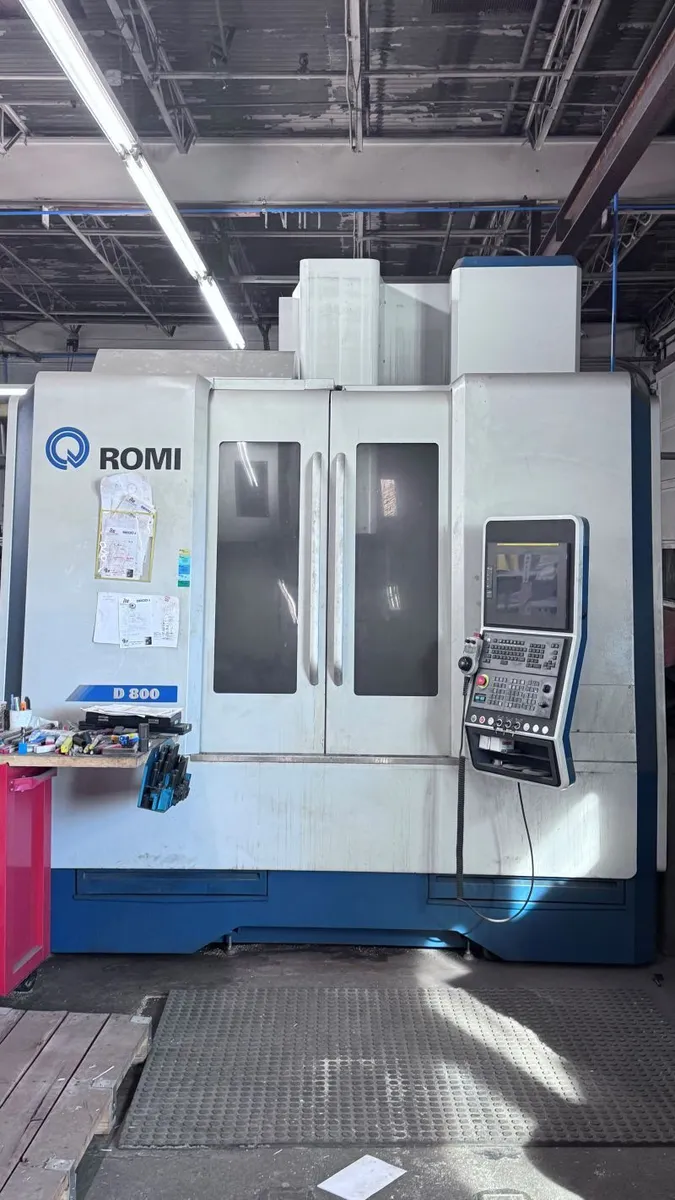

Romi D-800 Vertical Machining Center, 2020 model, used condition. Travel: X 800mm, Y 530mm, Z 580mm. Power: 20kW, Max RPM: 10000, ATC: 30 tools, Taper: ISO 40. Table: 22"W x 36"L, 3-axis performance.
YEAR: 2020
MODEL: D800
SPECIFICATIONS:
VERTICAL HEADSTOCK
SPINDLE TAPER.................................................. 40 ISO
SPEED RANGE (VERSION 10,000 RPM)............................... 10-10,000 RPM
FEEDS
RAPID TRAVERSE (X/Y/Z AXES).................................... 1575 IPM
MAX. PROGRAMMABLE CUTTING FEED................................. 787 IPM
TRAVELS
SUPERIOR TABLE TRAVEL (X AXIS)................................. 31.5"
INFERIOR TABLE TRAVEL (Y AXIS)................................. 24"
HEADSTOCK TABLE TRAVEL (Z AXIS)................................ 25"
DISTANCE FROM SPINDLE NOSE TO TABLE............................ 4.3"- 30"
TABLE
SURFACE........................................................ 36" X 22"
T-SLOT WITH X DISTANCE......................................... 0.71" X 3.5"
NUMBER OF T-SLOTS.............................................. 5
MAX WEIGHT ON TABLE (UNIFORMLY DISTRIBUTED).................... 2,000 LBS
AUTOMATIC TOOL CHANGER
TYPE........................................................... AUTOMATIC ARM
TOOLS CAPACITY................................................. 30
MAX. TOOL DIAMETER............................................. 3"
MAX. TOOL DIAMETER WHEN ADJACENT STATIONS ARE EMPTY............ 5"
MAX. TOOL LENGTH............................................... 11.9"
TOOL HOLDER TYPE............................................... BT/CAT/DIN
MAX. TOOL WEIGHT............................................... 15 LBS
MAX. TOOL WEIGHT ON ATC........................................ 330 LBS
TOOL CHANGE TIME (TOOL TO TOOL)................................ 3.2
CNC
MODEL.......................................................... FANUC OI-MF PLUS I-HMI
INSTALLED POWER
AC MAIN MOTOR.................................................. 25/18.5
TOTAL INSTALLED POWER.......................................... 35
DIMENSION AND WEIGHT (APPROX.)
HEIGHT......................................................... 124"
AREA (FRONT AND SIDE).......................................... 125" X 100"
MACHINE NET WEIGHT............................................. 14,500 LBS
