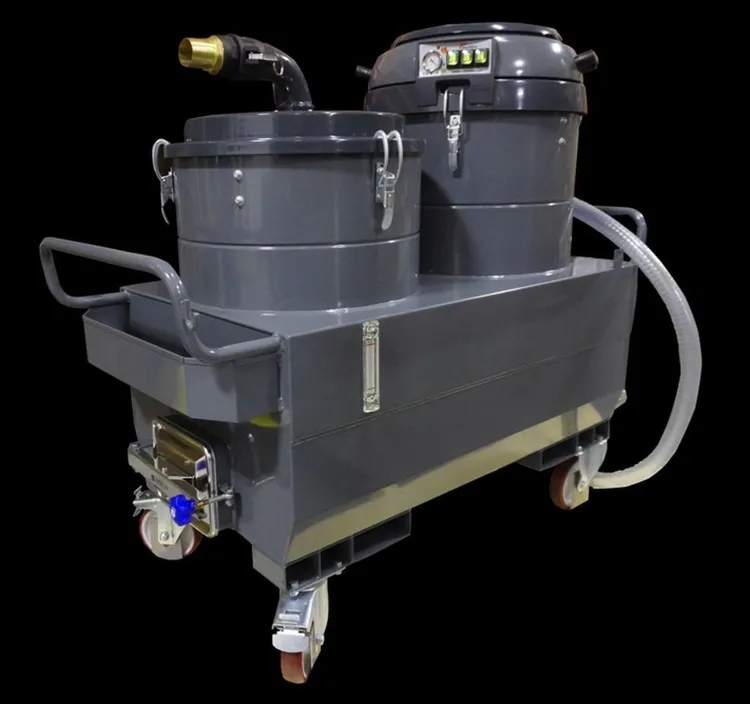

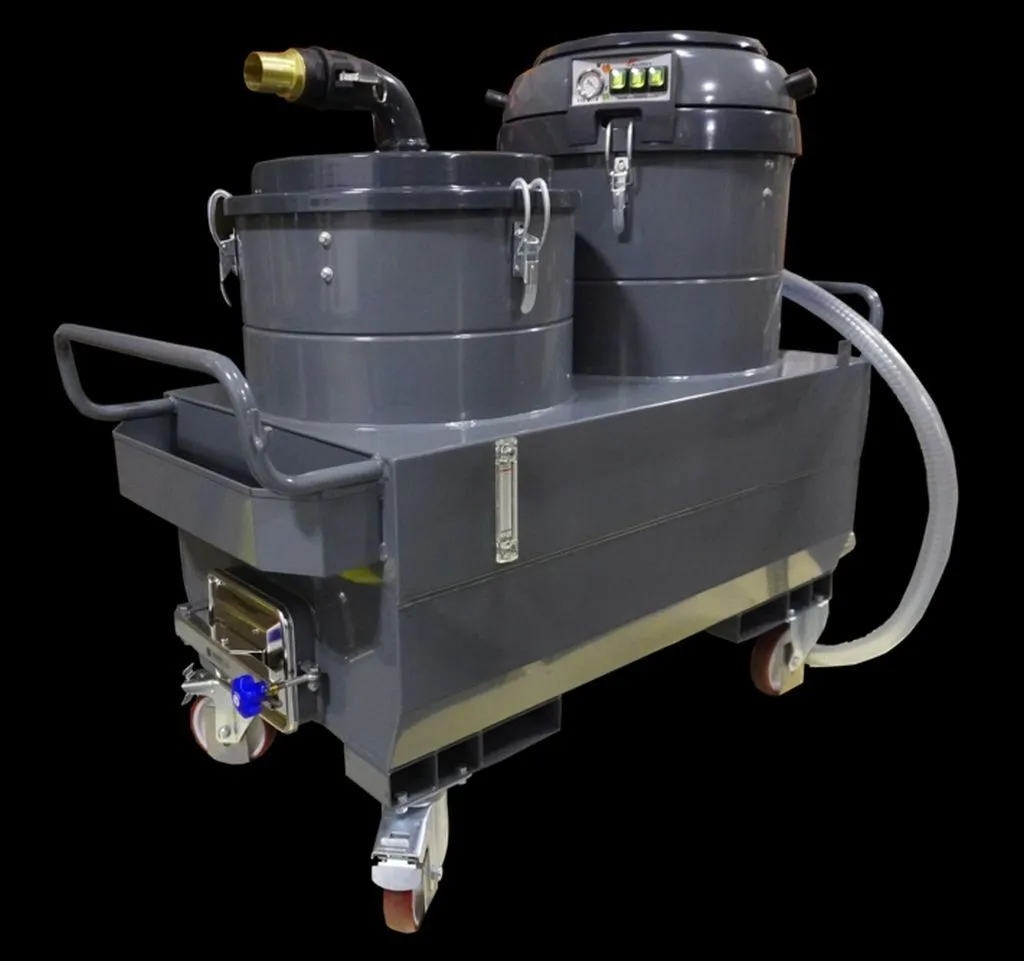

Delfin TCI 220 MPI Coolant and Metal Chip Vacuum
Have one to sell?
ConditionNew
New
This Delfin TC 220 MPI Vacuum is a powerful single-phase vacuum with 3 single-phase motors. Designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be collected, separating off any metal chips and allowing the vacuumed liquid to be reused. This can mean significant savings in terms of money and time spent servicing machinery. It has a 58 gal (220 lt) liquid capacity, 11 gal (40 lt) sieve grid basket for metal chips. Simultaneous collection and rapid discharge of liquid via independent pump.
Delfin TCI 220 Vacuum
SUCTION UNIT:
- Voltage (V - Hz): 115 - 60 1~
- Power HP (kW) - Amps: 3.0 (2.3) - 19.6
- Max water lift inH2O (mmH2O): 80.9 (2055)
- Max air flow CFM (m3/h): 282 (480)
- Suction inlet (in/mm): 2 (50)
- Noise level (EN ISO 3744) dB(A): 76
FILTER UNIT:
- Filter Type: 3D SuperWeb
- Media - Filtration: Polypropylene - 20μm
- Surface Area, Diameter - (ft² (m²), mm): 5.5 (0.5), 325
COLLECTION UNIT:
- Discharge system: Reverse flow
- Liquids capacity (gal/L): 58 (220)
- Solids capacity (gal/L): 11 (40)
- Discharge speed (gal/min)(L/min): 53 (200)
VOLUME:
- Dimensions - (in"(WxLxH): 57x28x69 (145x72x175h)
- Weight (lb/kg): 408 (185)
ACCESSORY KIT, OIL & CHIPS, D80/50 TECNOIL COMES WITH:
- Connector - 80mm/50mm (3"/2"), Galvanized Steel, Vacuum to Hose Connection
- Hose - 50mm (2"), 3m (9.8'), Polyurethane Hose with Copper Spiral, for Liquids and Abrasive Materials
- Hose Cuff - 50mm (2"), Antistatic, for use with Tool Side Only, Black
- Lance - 50mm (2") Connection, 500mm (19.6") in Length, 45 Degree Cut End, Aluminum
- Curved Connector - 50mm (2") Connection, Galvanized Steel, Hose to Tool Connection
- Clamp - 44-60mm (1.5"-2.3"), Galvanized Steel, Vacuum to Hose Connection
- Rubber cone nozzle
