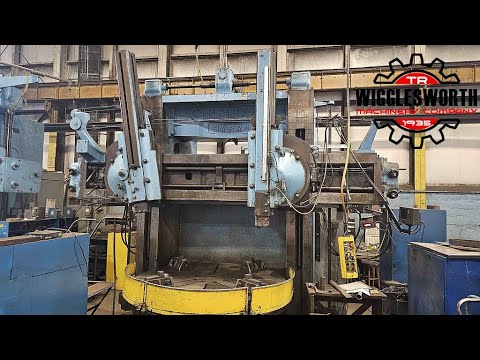

Cincinnati Hypro 72" Vertical Boring Mill
Have one to sell?
ConditionUsed
1 available
Used Cincinnati Hypro 72" Vertical Boring Mill features a 72.5" chuck, 79" max swing, and 50" ram travel. Equipped with 2-axis Heidenhain digital readout, 60° swiveling ram heads, pendant control, and variable speed. Made in USA, weight 65,000 lbs.
SPECIFICATIONS:
MODEL......................................................... HYDRO
CHUCK DIAMETER................................................ 72.5"
MAXIMUM SWING................................................. 79"
HEIGHT UNDER RAIL............................................. 63"
VERTICAL TRAVEL OF RAM HEADS.................................. 50"
HORIZONTAL TRAVEL OF RAM HEADS................................ 50"
MAX. HEIGHT UNDER RAM HEADS................................... 60.5"
MIN. CENTER DISTANCE BETWEEN HEADS............................ 20.62"
SPINDLE SPEEDS (VARIABLE)..................................... 1-135 RPM
FEEDS RATE (12)............................................... 0.010"-0.800"
MAIN MOTOR (DC)............................................... 35 KW
ELECTRICS..................................................... 575V/3PH/60HZ
MADE IN....................................................... USA
APPROXIMATE WEIGHT............................................ 65,000 LBS
APPROXIMATE OVERALL DIMENSIONS................................ 180"L X 147"W X 146"H
EQUIPPED WITH:
2 AXIS HEIDENHAIN DIGITAL READOUT
2 SWIVELING RAM TYPE HEADS UP TO 60 DEGREES
PENDANT CONTROL
FOUR JAW CHUCK
POWER RAIL ELEVATION
VARIABLE SPEED
FLOOR STANDING
