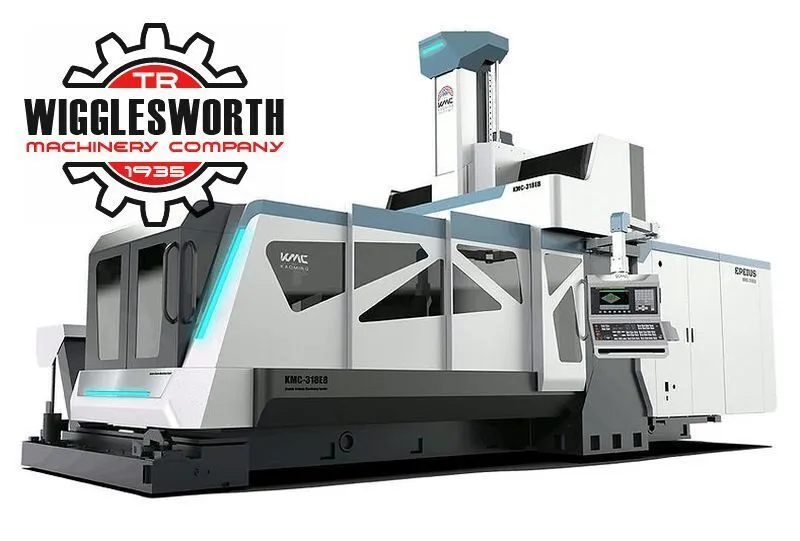

KAO MING KMC-318E8 Gantry Machining Center with double column design ensures stability for heavy-duty cutting.
Features: 30/35 HP spindle, 30-tool ATC, inner cooled ballscrews with high-speed rapid traverse, and massive 118.1" x 64.96" table. Rely on exceptional precision and rigidity.
This machine is sold fully installed with training.
FEATURES:
DOUBLE COLUMN DESIGN PROVIDES STABILITY WHILE HEAVY DUTY CUTTING
THREE AXES HIGH PRECISION, PRELOADED ROLLER LINEAR GUIDWAYS
Y-AXIS STEP DESIGN OF THE DUAL GUIDEWAYS PROVIDES EXTREME RIGIDITY
BALLSCREWS ARE INNER COOLED AND PRELOADED FOR EXCELLENT ACCURACY
AUTOMATIC LUBRICATION SYSTEM
RIGID 10,000 RPM DIRECT DRIVE SPINDLE (30/35 HP)
FULLY ENCLOSED SPLASHGUARD
30 TOOL MAGAZINE ATC
MAJOR COMPONENTS ARE HEAVILY RIBBED REINFORCED FOR OUTSTANDING STABILITY
MEEHANITE CAST IRON USED FOR ALL MAJOR MACHINE COMPONENTS
REFRIGERATED SPINDLE CHILLER
SPECIFICATIONS:
DISTANCE BETWEEN COLUMNS................................... 70.86"
TABLE:
TABLE SIZE OVERALL......................................... 118.1" X 64.96"
T SLOTS (NUMBER X WIDTH X PITCH)........................... 9 X 0.86 X 6.69"
TABLE LOAD................................................. 22,000 LBS
X, Y, Z AXIS TRAVEL........................................ 127.16" X 66.92" X 33.46"
SPINDLE NOSE TO TABLE...................................... 7.87"-41.33"
SPINDLE:
SPINDLE TAPER.............................................. CT-50
PULL STUD.................................................. CT-50
SPINDLE SPEEDS............................................. 10,000 RPM
HORSEPOWER................................................. 30/35 HP
TRANSMISSION............................................... DIRECT DRIVE
FEED RATES:
RAPID TRAVERSE X,Y,Z AXIS.................................. 787, 944, 590 IPM
FEED RATE X,Y,Z AXIS....................................... 0.1-393 IPM
AUTOMATIC TOOL CHANGER:
MAGAZINE CAPACITY.......................................... 30 TOOL
MAXIMUM TOOL LENGTH........................................ 13.77"
MAXIUMUM TOOL DIAMETER..................................... 5.11"
WITHOUT ADJACENT TOOL...................................... 7.87"
MAXIMUM TOOL WEIGHT........................................ 44 LBS
MACHINE SIZE:
FLOOR AREA (L X W X H)..................................... 399" X 216" X 180"
NET WEIGHT................................................. 50,600 LBS
AIR REQUIRED............................................... 85 PSI
POWER REQUIRED............................................. 220 VOLT AC, 3 PHASE 60KVA
STANDARD ACCESSORIES:
FANUC CONTROL AUTO LUBE SYSTEM
ARM TYPE ATC 30 TOOLS SPINDLE CHILLER
RIGID TAPPING SPINDLE COOLANT SYSTEM
CHIP CONVEYOR SPINDLE LOAD METER
FULL ENCLOSURE SPINDLE RPM METER
AIR BLAST WORK LIGHT
FULLY ENCLOSED SPLASH GUARD ALARM LIGHT
OPERATIONS, CONTROL, AND MAINTENANCE MANUALS SAFTEY DOOR INTERLOCK
SPINDLE AIR BLOW TOOLBOX
LEVELING BOLTS, PADS, & NUTS TELESCOPIC WAY COVERS
