New 2025 KAO MING KMC-325GM

KMC-325GM
Gantry Type 5 Axis Machining Center
X axis travel: 3000 mm
Y axis travel: 2500 mm
Z axis travel: 1000 mm
Table size: 3000 x 2200 mm
Max. table load: 3 ton/m2 ~ 557lb/ sq. foot

Spindle
Spindle speed: 15000rpm
Feed rate(X, Y, Z): 32,32,24m/min
Controller: Siemens, Heidenhain

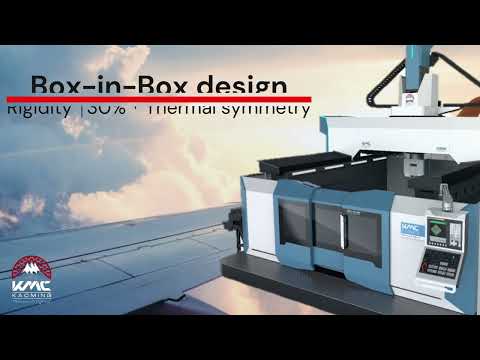

Box-in-Box design
Rigidity ^30%, Thermal symmetry
Dual motor drive
high speed, high precision
Suitable for Aviation & Die mold Industry

Combine Chip Slot and Cast design
Rigidity ^ & prevent water leak
4 THK Roller Linear Ways for 3 axis

3 Axis Coolant System
Prevent 80% thermal growth
Enhance machine accuracy
Inner cooled ballscrew
Coolant system in bearing seat
Motor board with cooling circuit

Standard: 32 ATC / Set
Chain Type Tool Magazine
No need to tool change arm,avoid vibration

A-axis swiveling angle: +/- 105 Degrees
Motor torque(S1/Smax): 382/575 Nm
Clamping torque at PO/Pmax: 1200/2160 Nm
C-axis swiveling angle: +/- 200 Degrees
Motor torque(S1/Smax): 810/1100 Nm
Clamping torque at Po/Pmax: 930/1680 Nm
Kessler Small 2 Axis Swiveling Head
Spindle speed: 15000 rpm(30000 upgrade available)
