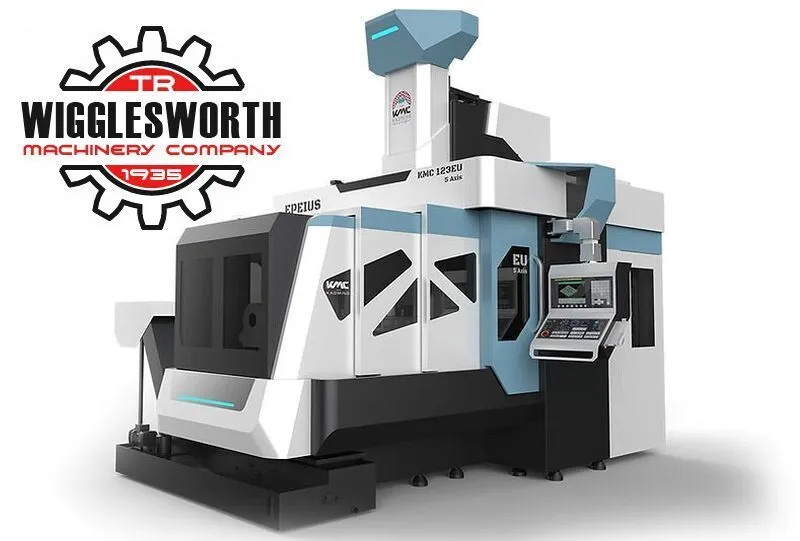

Discover the KAO MING KMC-123EU Vertical Machining Center with a 24,000 RPM spindle, 32-tool magazine, and rotary tilt table. Features include automatic lube, spindle chiller, and FANUC A.I.C.C. II control. Ideal for precision engineering tasks.
FEATURES:
DOUBLE COLUMN DESIGN PROVIDES STABILITY WHILE HIGHSPEED CUTTING
ROTARY TILT TABLE (A-AXIS & C-AXIS CAPABILITY)
ROLLER TYPE LINEAR GUIDE WAYS ON X,Y,& Z AXES
ALL BALL SCREWS ARE PRELOADED FOR EXCELLENT ACCURACY
AUTOMATIC LUBRICATION SYSTEM
RIGID 24,000 RPM "BUILT-IN" HIGHSPEED SPINDLE (33 HP)
SPLASHGUARD
32 TOOL MAGAZINE ATC
MAJOR COMPONENTS ARE HEAVILY RIBBED REINFORCED CAST IRON FOR EXCELLENT STABILITY
FANUC ARTIFICIAL INTELLIGENCE CONTOUR CONTROL (A.I.C.C. II)
REFRIGERATED SPINDLE CHILLER
SPECIFICATIONS:
AXIS:
X-AXIS TRAVEL.......................................... 31.49"
Y-AXIS TRAVEL.......................................... 47.24"
Z-AXIS TRAVEL.......................................... 20.47"
SPINDLE NOSE TO TABLE VERTICAL......................... 1.18"-21.65"
ROTARY TILT TABLE:
TABLE LOAD............................................. 1,100 LBS/ 661 LBS (TILT)
TABLE SIZE OVERALL..................................... Ø 24.8"
A-AXIS ROTATION........................................ +30° ~ -120°
C-AXIS ROTATION........................................ +0° ~ 360°
SPINDLE:
SPINDLE TAPER.......................................... HSK-63
PULL STUD.............................................. HSK-63
MAX SPINDLE SPEED VERTICAL............................. 24,000 RPM
HORSEPOWER............................................. 33 HP
FEED RATES:
RAPID TRAVERSE X,Y,Z AXIS.............................. 1,181/1,574/944 IPM
FEED RATE X,Y,Z AXIS................................... 0.1-590 IPM
AUTOMATIC TOOL CHANGER:
MAGAZINE CAPACITY...................................... 32 TOOL DUAL ARM
MAXIMUM TOOL LENGTH.................................... 11.8"
MAXIMUM TOOL DIAMETER.................................. Ø 2.95"
WITHOUT ADJACENT TOOL.................................. Ø 5.9"
MAXIMUM TOOL WEIGHT.................................... 17.6 LBS
MACHINE SIZE:
FLOOR AREA (L X W X H)................................. 234" X 146" X 160"
NET WEIGHT............................................. 28,660 LBS
AIR REQUIRED........................................... 85 PSI
POWER REQUIRED......................................... 220 VOLT AC, 3 PHASE, 45 KVA
STANDARD ACCESSORIES:
FANUC CONTROL AUTO LUBE SYSTEM
ARM TYPE ATC 32 TOOLS SPINDLE CHILLER
RIGID TAPPING SPINDLE COOLANT SYSTEM
CHIP CONVEYOR SPINDLE LOAD MEETER
AUTOMATIC POWER OFF SPINDLE RPM METER
AIR BLAST WORK LIGHT
SPLASHGUARD ALARM LIGHT
OPERATIONS, CONTROL, AND MAINTENANCE MANUALS SAFETY DOOR INTERLOCK
SPINDLE AIR BLOW TOOLBOX
LEVELING BOLTS, PADS, & NUTS TELESCOPIC WAY COVERS
