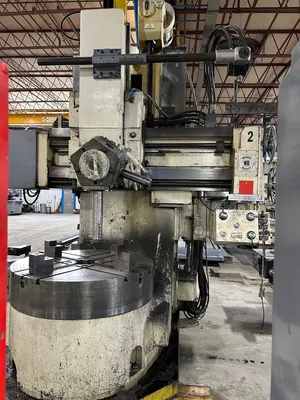

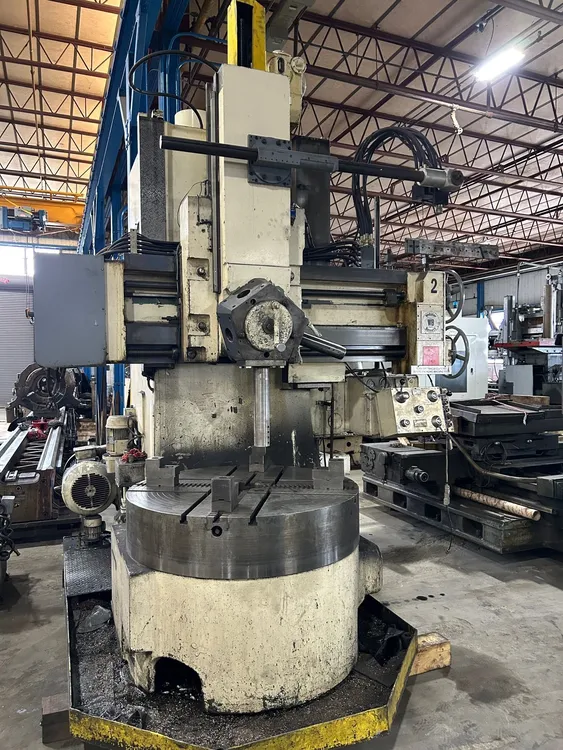

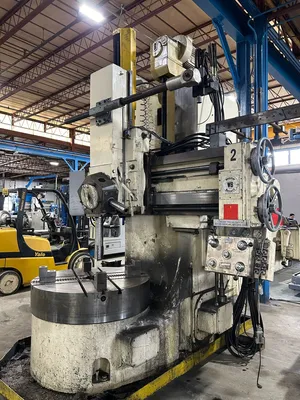

48” WEBSTER & BENNETT High Column Vertical Turret Lathe

SPECIFICATIONS:

DIAMTER OF CHUCK............................................... 48"
ADMITS IN DIAMETER............................................. 59"
MAXIMUM DIAMETER TURNED FOR TRAVEL OF TURRET SLIDE............. 52 1/2"
MAXIMUM DIAMETER TURNED FOR LENGTH OF B2X TOOLHOLDER........... 56"
MINIMUM HEIGHT UNDER CROSS SLIDE............................... 26"
ADMITS IN HEIGHT UNDER CROSS SLIDE WHEN AUTO TRIP IS FITTED.... 22 1/2"
MAXIMUM HEIGHT UNDER CROSS SLIDE............................... 48"
VERTICAL ADJUSTMENT OF CROSS SLIDE............................. 22"
MAXIMUM HEIGHT UNDER TURRET.................................... 59" (12" EXTRA TALL)
VERTICAL TRAVEL OF TURRET SLIDE................................ 38"
MAXIMUM LENGTH WHICH CAN BE BORED IS........................... 28"
WHEN DIAMETER OF BORE DOES NOT EXCEED..................... 28"
DIAMETER OF SPINDLE BORE....................................... 3 3/4"
HORIZONTAL FEED OF TURRET FROM CHUCK CENTER OUTWARDS........... 35"
DIAMETER OF TURRET HOLES....................................... 3"
FLOOR SPACE REQUIRED- FRONT.................................... 95"
FLOOR SPACE REQUIRED- SIDE..................................... 132"
DISTANCE FROM CHUCK CENTRE TO JUNCTION FACE.................... 24 1/2"
DISTANCE FROM CHUCK CENTRE TO FRONT OF CROSS SLIDE............. 17"
NUMBER OF SPEEDS............................................... 12
RANGE OF SPEEDS................................................ 4.5-100 RPM
RANGE OF FEEDS................................................. .005-.250 IPR
NUMBER OF FEEDS................................................ 12
HORSEPOWER OF MAIN MOTOR....................................... 40 HP
WEIGHT......................................................... 24,640 LBS

FEATURES AND EQUIPMENT
COOLANT PAN
SONY 2-AXIS DIGITAL READOUTS
TRACER ATTACHMENT

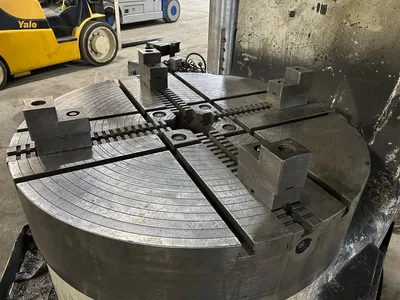

4 CHUCK JAW & 4 CHUCK JAW EXTENSION
1 BORING BAR

(AS IS, LOADED ON TRUCK)
