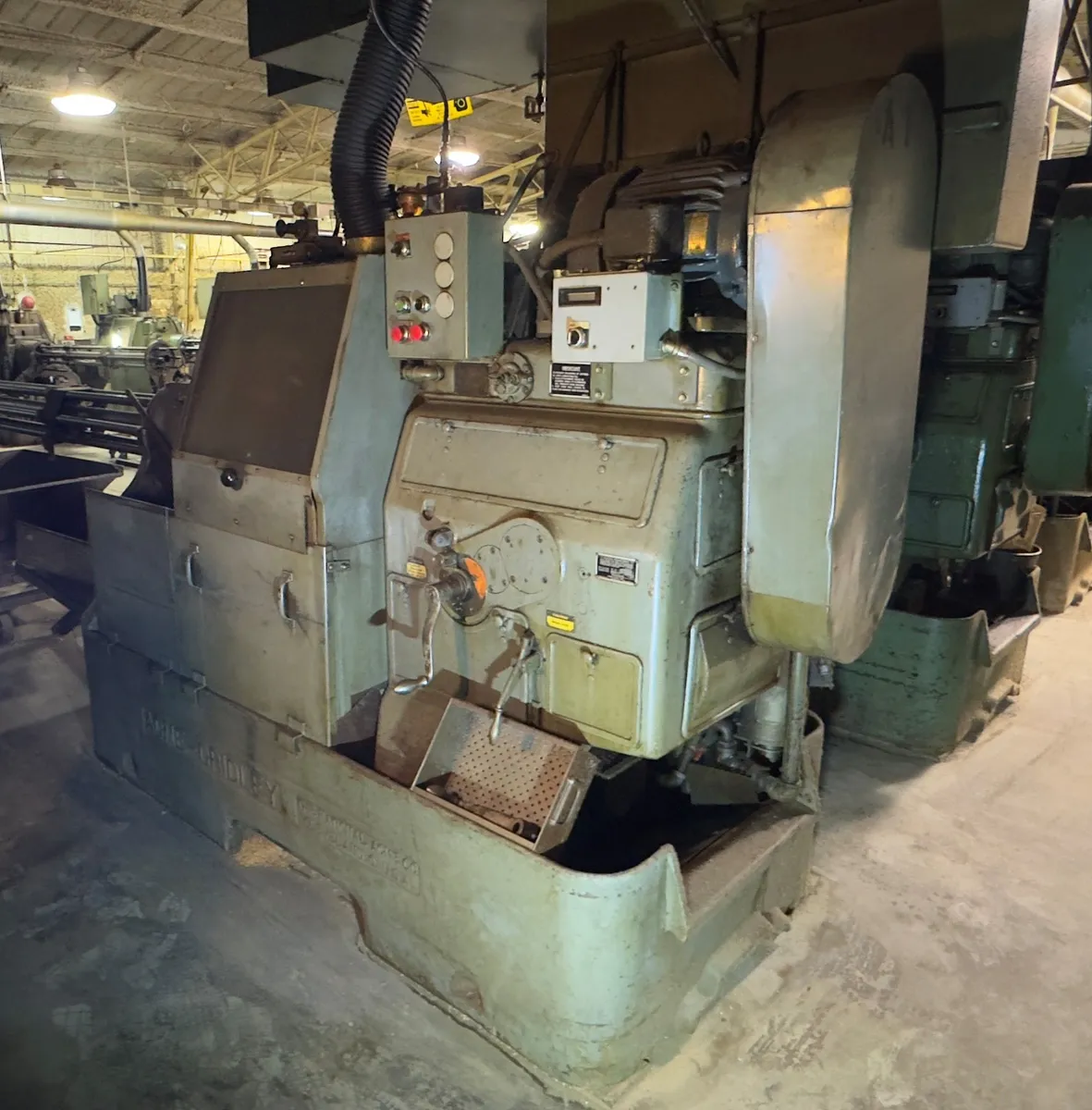

ACME Gridley 1" RA 6 Back Finishing & High Speed Drilling

SPECIFICATIONS:

MAXIMUM COLLET CAPACITY:
ROUND......................................................... 1"
SQUARE........................................................ 45/64"
HEXAGON....................................................... 55/64"
MAXIMUM LENGTH STANDARD:
STOCK FEED.................................................... 5
TURNING....................................................... 5
RANGE OF SPINDLE SPEEDS:
MINIMUM RPM................................................... 239
MAXIMUM RPM................................................... 2383
MOTOR HORSEPOWER.............................................. 15
RPM OF DRIVE PULLEY........................................... 1750
STANDARD THREADING SPEEDS COMPARED WITH WORK SPINDLE SPEEDS:
FAST RIGHT HAND (SLOWER THAN SPINDLE).........................
SLOW RIGHT HAND (SLOWER THAN SPINDLE)......................... .218
LEFT HAND OR BACK OFF (FASTER THAN SPINDLE)................... .543
REAMING AND DIE SLIDE LEVER THROW RATIOS:
BOTTOM HOLE................................................... 2.85 TO 1
TOP HOLE...................................................... 1 TO 1
NET WEIGHT.................................................... 11,300
DIMENSIONS.................................................... 19' 2 1/2" L X 3'7" W

Equipped with:
6 Position Gatlin Gun Bar Feeder
Voltage: 230/460
Chip Auger
External Pump

Sold: "As Is, Where Is"
