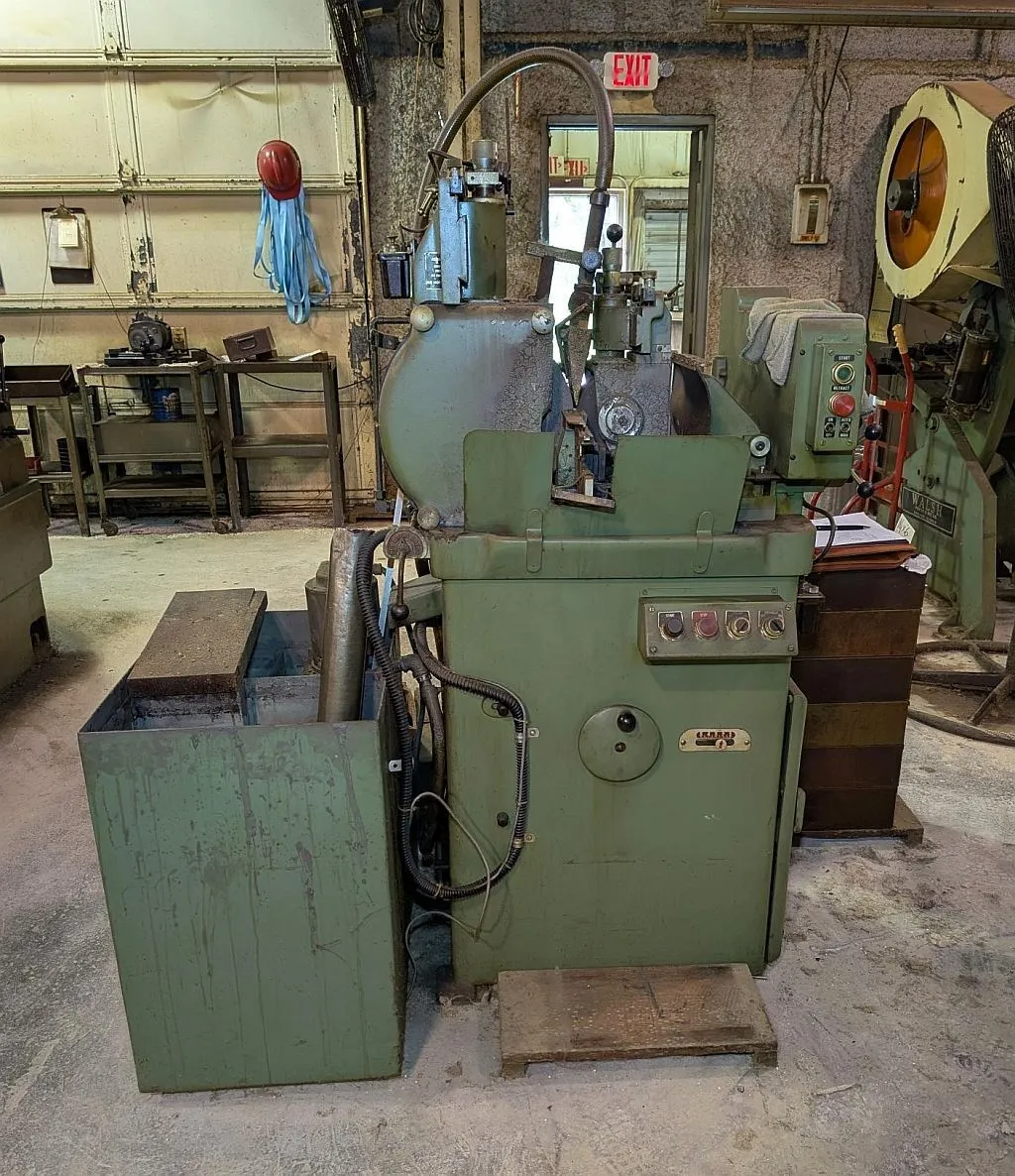

Royal Master TG 12-4 Precision Centerless Grinding Machine
Have one to sell?
ConditionUsed
1 available
Grinding Wheel Diameter: 12 inches (305 mm)
Regulating Wheel Diameter: 4 inches (102 mm)
Grinding Wheel Width: Up to 3 inches (76 mm)
Regulating Wheel Width: Up to 3 inches (76 mm)
Grinding Wheel Speed: Up to 8,500 SFPM (Surface Feet Per Minute)
Regulating Wheel Speed: Variable, typically up to 300 RPM
Work Diameter Range: 0.004 inches (0.1 mm) to 1.5 inches (38 mm)
Grinding Wheel Motor: Up to 7.5 HP (5.6 kW)
Regulating Wheel Motor: Up to 1 HP (0.75 kW)
Machine Weight: Approximately 2,500 lbs (1,134 kg)
18 x 24 x 28 Cool Tank with Pump
Hydraulic over the wheel dresser - Dual
Model TG 12 X 4
Grinding Wheel Diameter: 12 inches (305 mm)
Regulating Wheel Diameter: 4 inches (102 mm)
Grinding Wheel Width: Up to 3 inches (76 mm)
Regulating Wheel Width: Up to 3 inches (76 mm)
Grinding Wheel Speed: Up to 8,500 SFPM (Surface Feet Per Minute)
Regulating Wheel Speed: Variable, typically up to 300 RPM
Work Diameter Range: 0.004 inches (0.1 mm) to 1.5 inches (38 mm)
Grinding Wheel Motor: Up to 7.5 HP (5.6 kW)
Regulating Wheel Motor: Up to 1 HP (0.75 kW)
Machine Weight: Approximately 2,500 lbs (1,134 kg)
Equipped With:
18" x 24" x 28" Coolant Tank w/ Pump
Dual Hydralic Over the Wheel Dressers
Bijur Lubrication
"As is, Where is"
