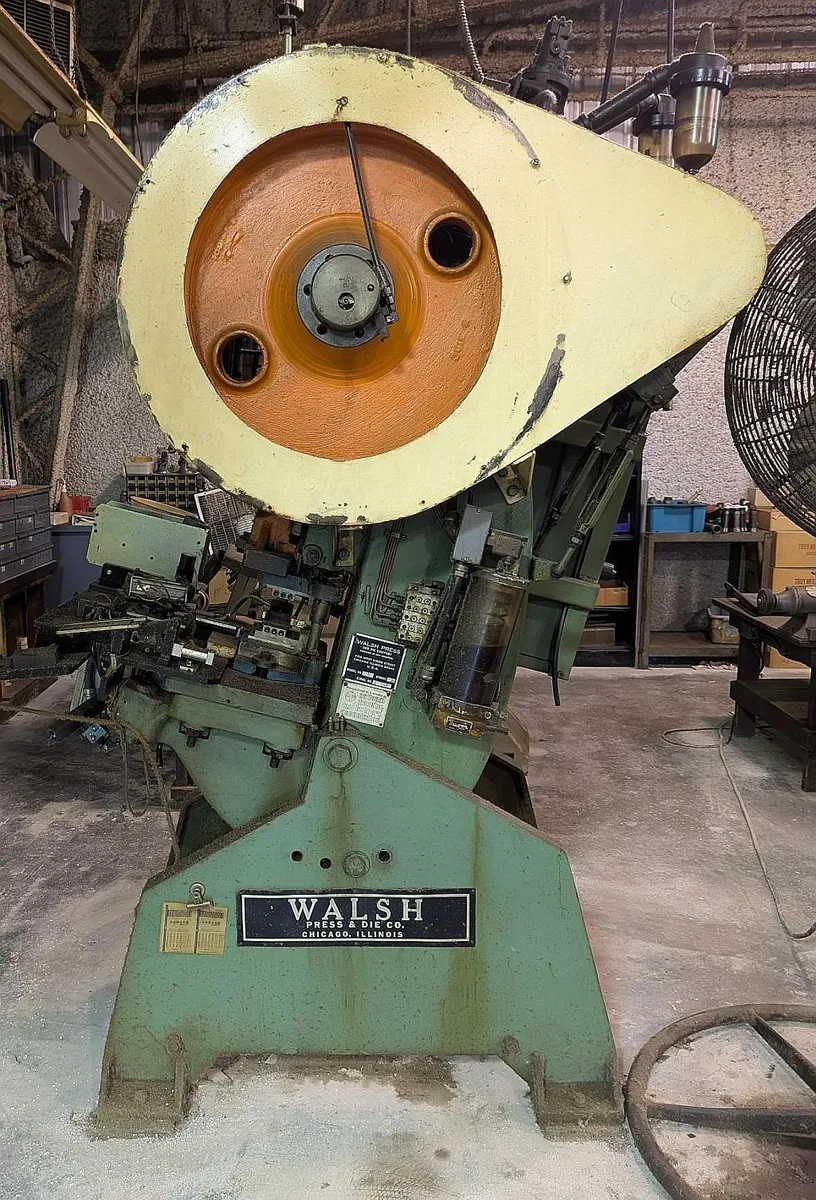

WALSH 28 OBI Punch Press
Have one to sell?
ConditionUsed
1 available
Capacity: 28 tons
Stroke: 2.5 inches (some variants may have 3 inches)
Shut Height (SDAU): 9.5 inches to top of bed
Slide Adjustment: 2 inches
Bed Area: 21.75 inches (Left-Right) × 12 inches (Front-Back)
Slide Area: 10 inches (Left-Right) × 9 inches (Front-Back)
Throat Depth: 6 inches
Opening Through Back: 9.5 inches
Floor to Top of Bed: 32 inches
Strokes Per Minute (SPM): Approximately 135
Bolster Plate: 23" x 12" x 1 1/2" Thick
RAM: 12 1/2" x 4"
Clutch Type: Mechanical flywheel
Dimensions: Length: 48 inches x Width: 36 inches x Height: 64 inches
Weight: Approximately 2,500 lbs
Capacity: 28 tons
Stroke: 2.5 inches (some variants may have 3 inches)
Shut Height (SDAU): 9.5 inches to top of bed
Slide Adjustment: 2 inches
Bed Area: 21.75 inches (Left-Right) × 12 inches (Front-Back)
Slide Area: 10 inches (Left-Right) × 9 inches (Front-Back)
Throat Depth: 6 inches
Opening Through Back: 9.5 inches
Floor to Top of Bed: 32 inches
Strokes Per Minute (SPM): Approximately 135
Clutch Type: Mechanical flywheel
Dimensions: Length: 48 inches x Width: 36 inches x Height: 64 inches
Weight: Approximately 2,500 lbs
Equipped with:
RAM 12 1/2" x 4"
23 1/2" x 12" x 1 1/2" thick Bolster Plate
Air Operate Clutch
Open Back
Inclinable
Automatic Full Lubrication System
