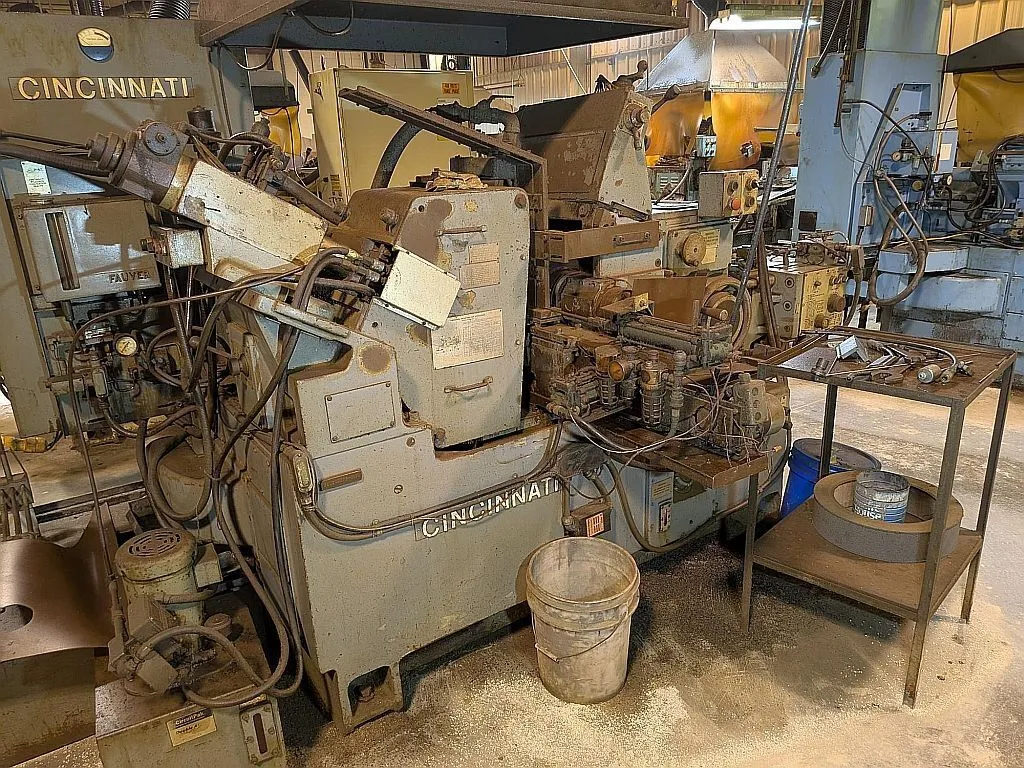

Cincinnati Milacron 220-8 DR

Description

Work Diameter Capacity:
Standard work rest: 0.063″ to 3″
With low work rest: up to 4.75″

Grinding Wheel:
Diameter: 24″ maximum, 17″ minimum
Width: 1″ to 8″
Hole Diameter: 12″
Speed: Up to 6,500 SFPM
Motor: 20 HP, 3-phase, 230/460V

Regulating Wheel:
Diameter: 13″ maximum, 9.75″ minimum
Width: 1″ to 8″
Hole Diameter: 5″
Speed Range: 11 to 300 RPM
Motor: 1.5 HP, 1200 RPM, 3-phase, 230/460V

Wheel Spindles:
Both grinding and regulating wheel spindles are made of high-grade alloy steel, heat-treated, and mounted on Filmatic bearings that self-adjust for load variations.

Truing Units:
Independent hydraulic profile diamond truing units for both grinding and regulating wheels.

Cutting Fluid System:
Pump Capacity: 30 GPM
Tank Capacity: 75 gallons

AC Volt: 230
3 Phase
HZ: 60

Dimensions & Weight
Floor Space: Approximately 95″ x 127.5″
Overall: 132" L x 72" W x 60" H
Approximate Weight: 12,000 to 13,500 lbs

Equipped with:
Crushing Truing Unit
Diamond Crush Dresser
