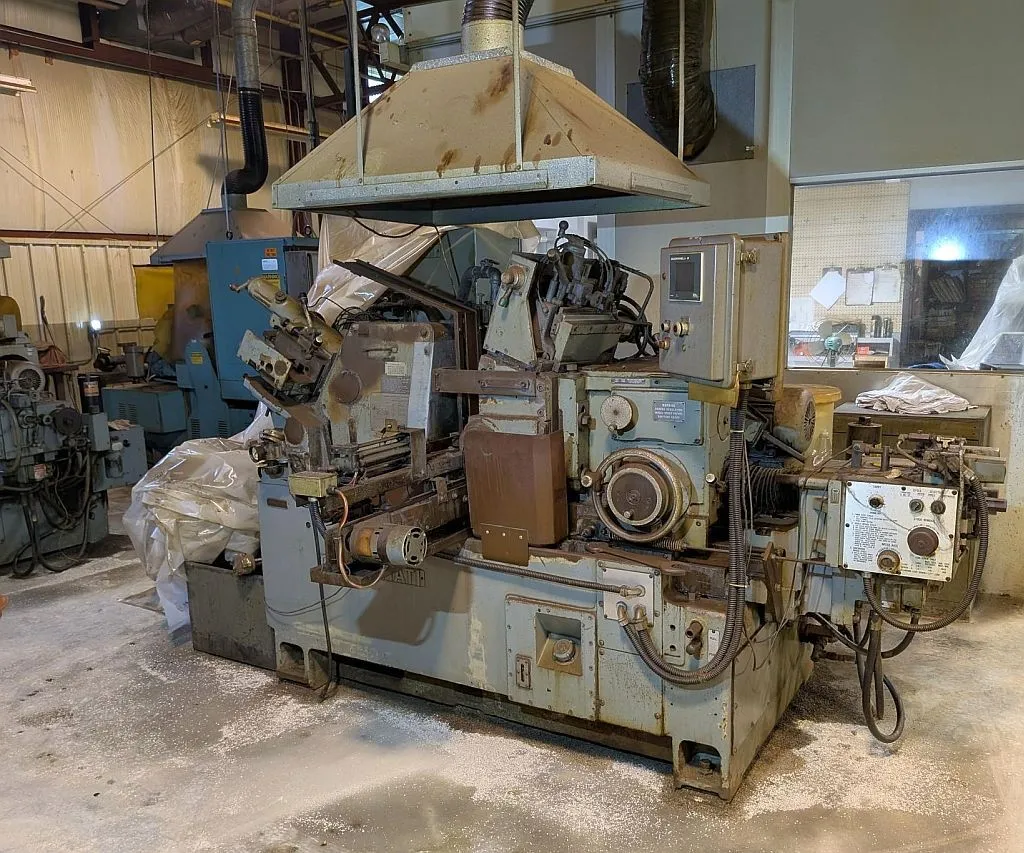

Cincinnati Milacron 220-8 DR Centerless Grinder

Description

Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″

Grinding Wheel:
Diameter: 24″ maximum, 15″ minimum
Width: 1″ to 8″
Hole Diameter: 12″

Regulating Wheel:
Diameter: 12″ maximum, 9.75″ minimum
Width: 1″ to 8″
Hole Diameter: 5″
Speed Range: 11 to 300 RPM

Grinding Wheel Drive:
Motor: 20 HP, 3-phase, 230/460V
Power Transmission: 6 V-Belts

Regulating Wheel Drive:
Motor: 1.5 HP, 1200 RPM, 3-phase, 230/460V
Power Transmission: V-Belt and chain
Speed Changes: Variable pitch sheaves gear shift

Cutting Fluid System:
Pump Capacity: 30 GPM
Tank Capacity: 75 gallons

Wheel Truing:
Independent hydraulic profile diamond truing units for both grinding and regulating wheels

Dimensions & Weight
Floor Space: Approximately 95″ x 127.5″
Overall: 132" L x 72" W x 60" H
Approximate Weight: 13,500 lbs
