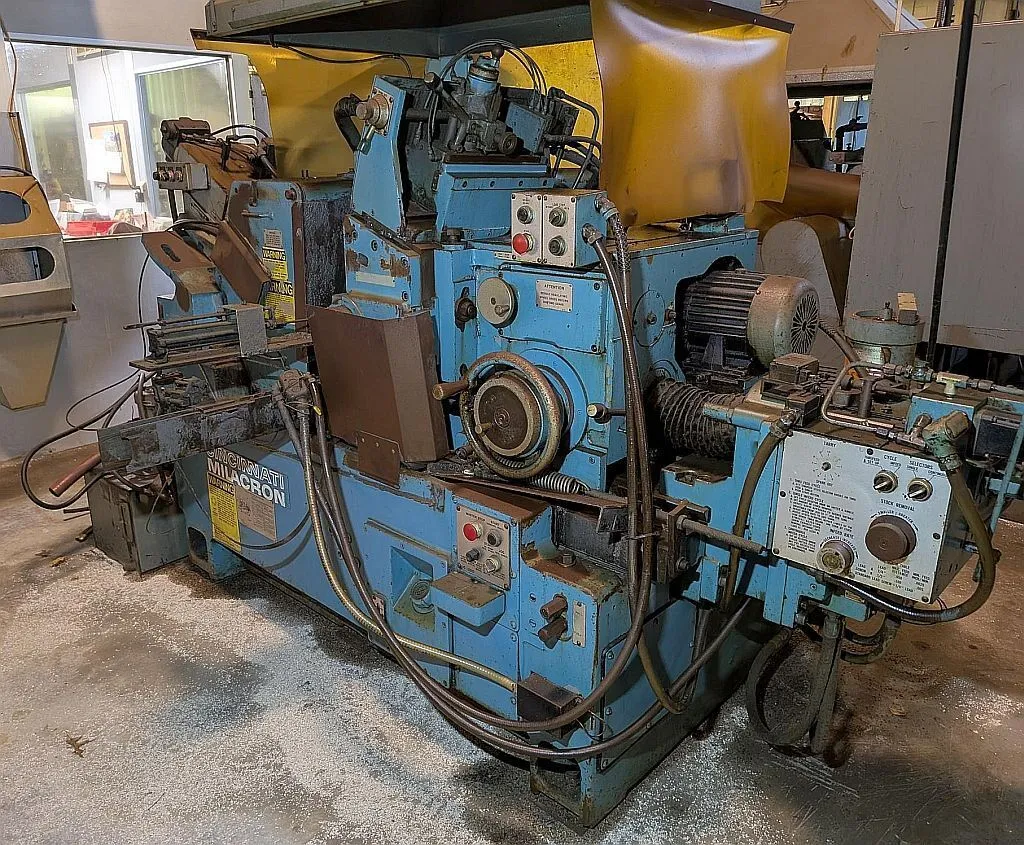

Cincinnati Milacron 220-8 DR Centerless Grinding Machine

Cincinnati Milacron 220-8 DR Centerless Grinding Machine

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
GRINDERS, CENTERLESS
Manufacturer:
CINCINNATI MILACRON
Model:
220-8
Year:
1977
Stock #:
12214
Status:
For Sale

Description

Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″

Grinding Wheel:
Diameter: 15" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP

Regulating Wheel:
Diameter: 9.75" to 13"
Width: 1" to 8"
Hole Diameter: 5"
Speeds: Variable, 15 to 300 RPM
Motor Power: 1.5 HP

Hydraulic System:
Motor Power: 2 HP
Electrical System:
Voltage: 220-440V
Phase: 3-phase
Frequency: 60 Hz

Dimensions:
Floor Space: 95" x 127.5"
Overall: 132" x 72" x 60"
Weight: 13,500

Equipped with:
Crush Truing Unit
Diamond Crush Dresser

Capacity3"76.2 mm
Grinding Wheel Dia.24"609.6 mm
GW Power20 hp14.9 kW
GW RPM1,034 RPM1,034 RPM
Regulating Wheel Dia13"330.2 mm
RW Power1.5 hp1.1 kW
RW RPM15 RPM15 RPM
Dimensions132" x 72" x 60"132" x 72" x 60"
Weight1350013500

Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″

Grinding Wheel:
Diameter: 15" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP

Regulating Wheel:
Diameter: 9.75" to 13"
Width: 1" to 8"
Hole Diameter: 5"
Speeds: Variable, 15 to 300 RPM
Motor Power: 1.5 HP

Hydraulic System:
Motor Power: 2 HP
Electrical System:
Voltage: 220-440V
Phase: 3-phase
Frequency: 60 Hz

Dimensions:
Floor Space: 95" x 127.5"
Overall: 132" x 72" x 60"
Weight: 13,500

Equipped with:
Crush Truing Unit
Diamond Crush Dresser
