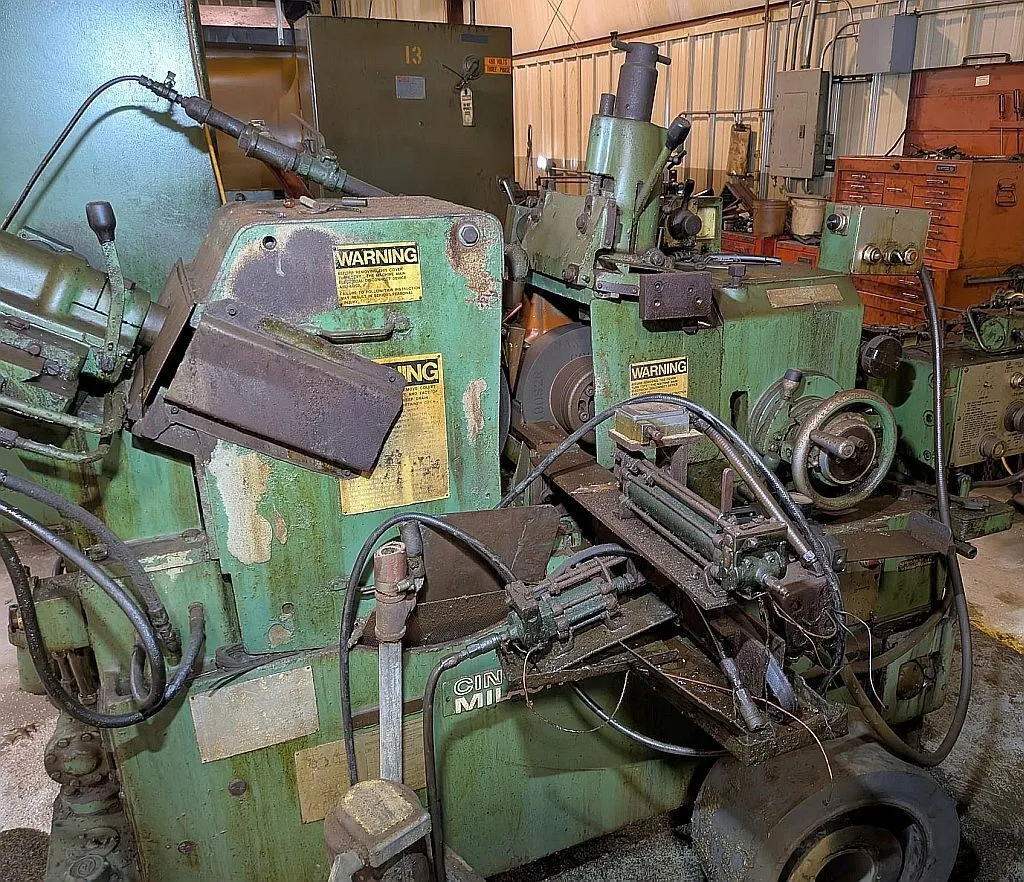

Cincinnati Milacron Cinco-15 DR Centerless Grinder
Have one to sell?
ConditionUsed
1 available
Workpiece Capacity:
Standard thru-feed/infeed workrests: up to 3" diameter
Maximum work diameter (depending on workrest): up to 4¾"
Grinding Wheel:
Diameter: 24" (maximum), 15" (minimum)
Width: up to 8"
Bore: 12"
Regulating Wheel:
Diameter: 12" (maximum), 9¾" (minimum)
Width: up to 8"
Bore: 5"
Wheel Speeds:
Regulating wheel speed: 15 to 300 RPM, infinitely variable
Motors:
Grinding wheel drive: 15 HP
Regulating wheel drive: 1 HP
Hydraulic pump: 1 HP
Cutting fluid pump: ¼ HP
Coolant System:
Pump capacity: 30 gallons per minute
Tank capacity: 65 gallons
Sizing Adjustment:
Infeed adjustment via handwheel, graduated in 0.001"
Machine Dimensions & Weight
Overall Dimensions: 90" x 50" x 64"
Weight: Approximately 8,100 lbs
Workpiece Capacity:
Standard thru-feed/infeed workrests: up to 3" diameter
Maximum work diameter (depending on workrest): up to 4¾"
Grinding Wheel:
Diameter: 24" (maximum), 15" (minimum)
Width: up to 8"
Bore: 12"
Regulating Wheel:
Diameter: 12" (maximum), 9¾" (minimum)
Width: up to 8"
Bore: 5"
Wheel Speeds:
Regulating wheel speed: 15 to 300 RPM, infinitely variable
Motors:
Grinding wheel drive: 15 HP
Regulating wheel drive: 1 HP
Hydraulic pump: 1 HP
Cutting fluid pump: ¼ HP
Coolant System:
Pump capacity: 30 gallons per minute
Tank capacity: 65 gallons
Sizing Adjustment:
Infeed adjustment via handwheel, graduated in 0.001"
Machine Dimensions & Weight
Overall Dimensions: 90" x 50" x 64"
Weight: Approximately 8,100 lbs
