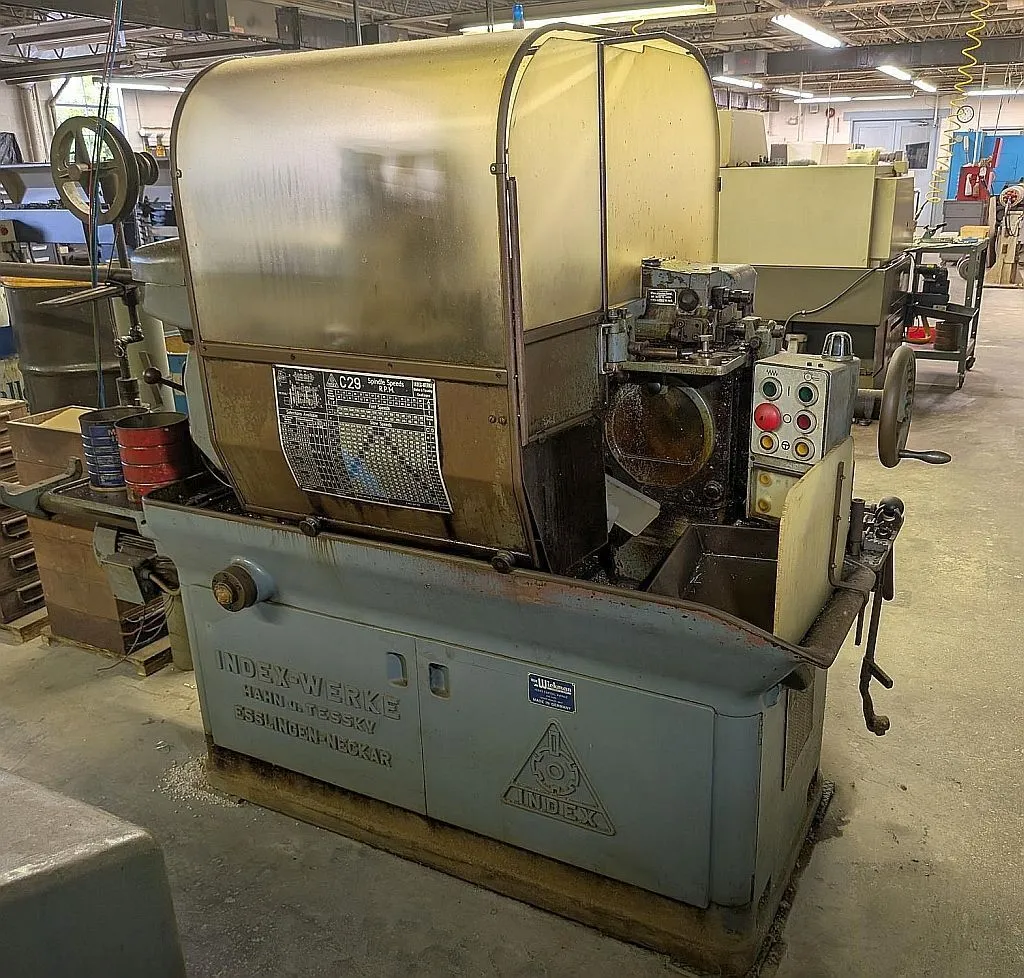

Index-Werke C29 Automatic Bar Machine
Have one to sell?
ConditionUsed
1 available
Max Turning Diameter: 11.8 inches (300 mm)
Max Turning Length: 33.5 inches (850 mm)
Bar Stock Capacity: 1.25 inches (32 mm) diameter (varies depending on the configuration)
Spindle Speed Range: 40 - 3,000 RPM
Spindle Bore: 2.2 inches (56 mm)
Main Motor Power: 10 HP (7.5 kW)
Turret: Typically 6 to 12 tool stations, depending on the model configuration
Tool Type: VDI, with options for turning, drilling, and threading operations
Number of Axis: 1 (primary turning axis)
Type of Control: Mechanical cam-based control (no CNC)
Dimensions:
104.3" x 59" x 59
Weight: Approximately 6,600 lbs (3,000 kg)
Max Turning Diameter: 11.8 inches (300 mm)
Max Turning Length: 33.5 inches (850 mm)
Bar Stock Capacity: 1.25 inches (32 mm) diameter (varies depending on the configuration)
Spindle Speed Range: 40 - 3,000 RPM
Spindle Bore: 2.2 inches (56 mm)
Main Motor Power: 10 HP (7.5 kW)
Turret: Typically 6 to 12 tool stations, depending on the model configuration
Tool Type: VDI, with options for turning, drilling, and threading operations
Number of Axis: 1 (primary turning axis)
Type of Control: Mechanical cam-based control (no CNC)
Dimensions:
104.3" x 59" x 59
Weight: Approximately 6,600 lbs (3,000 kg)
