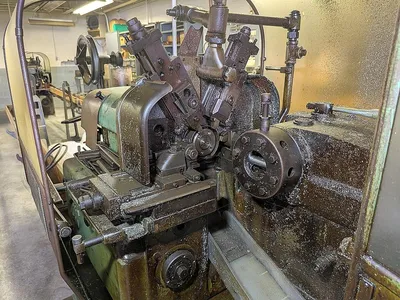

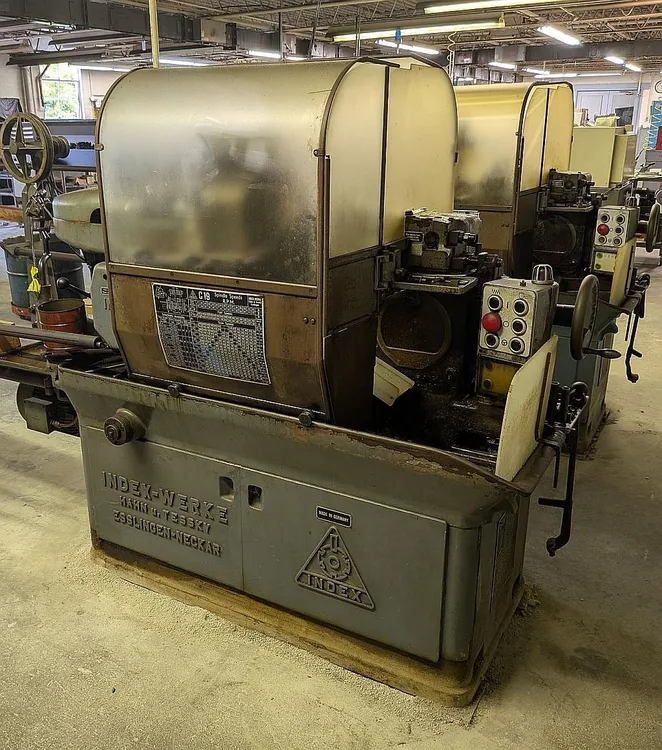

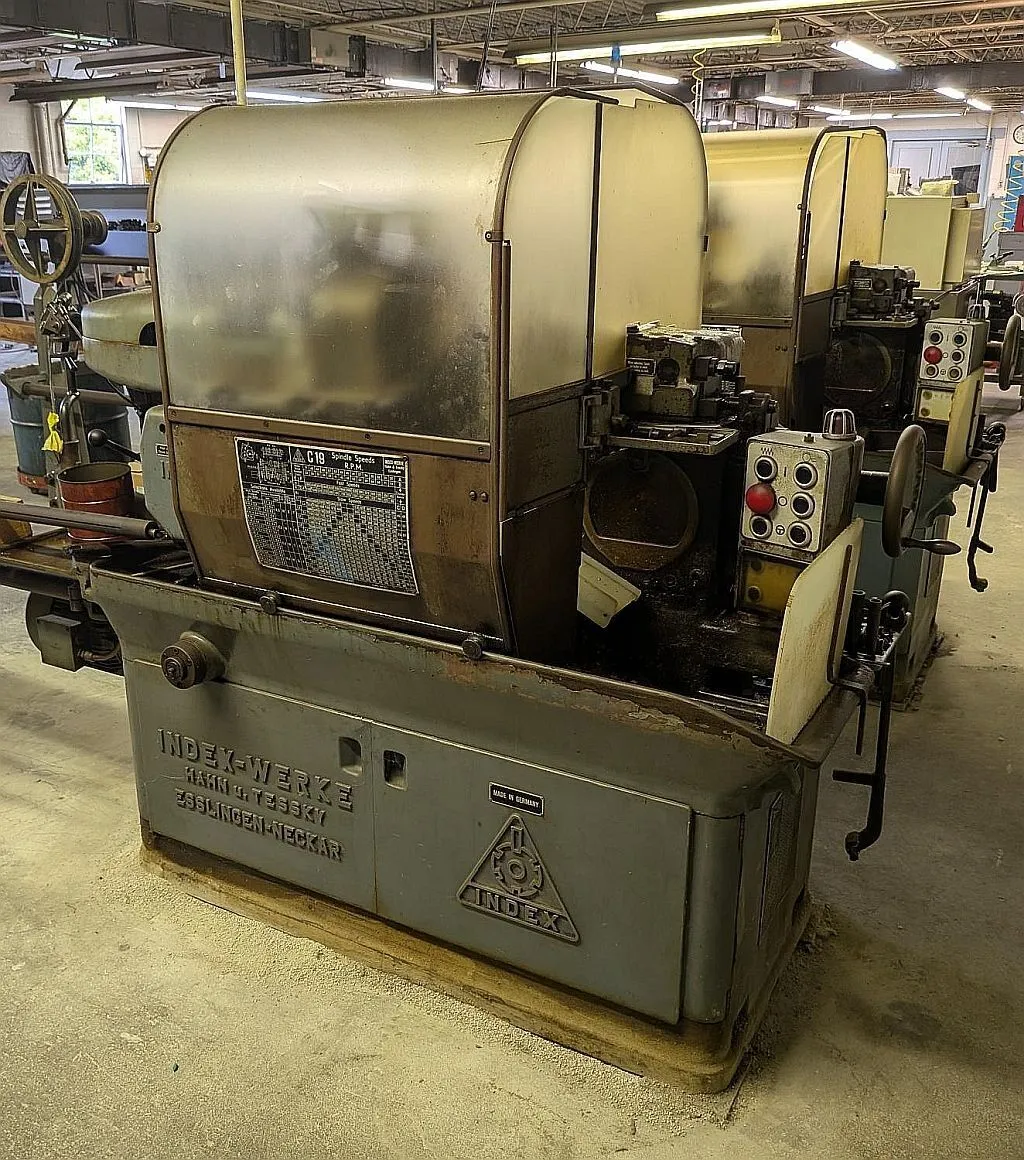

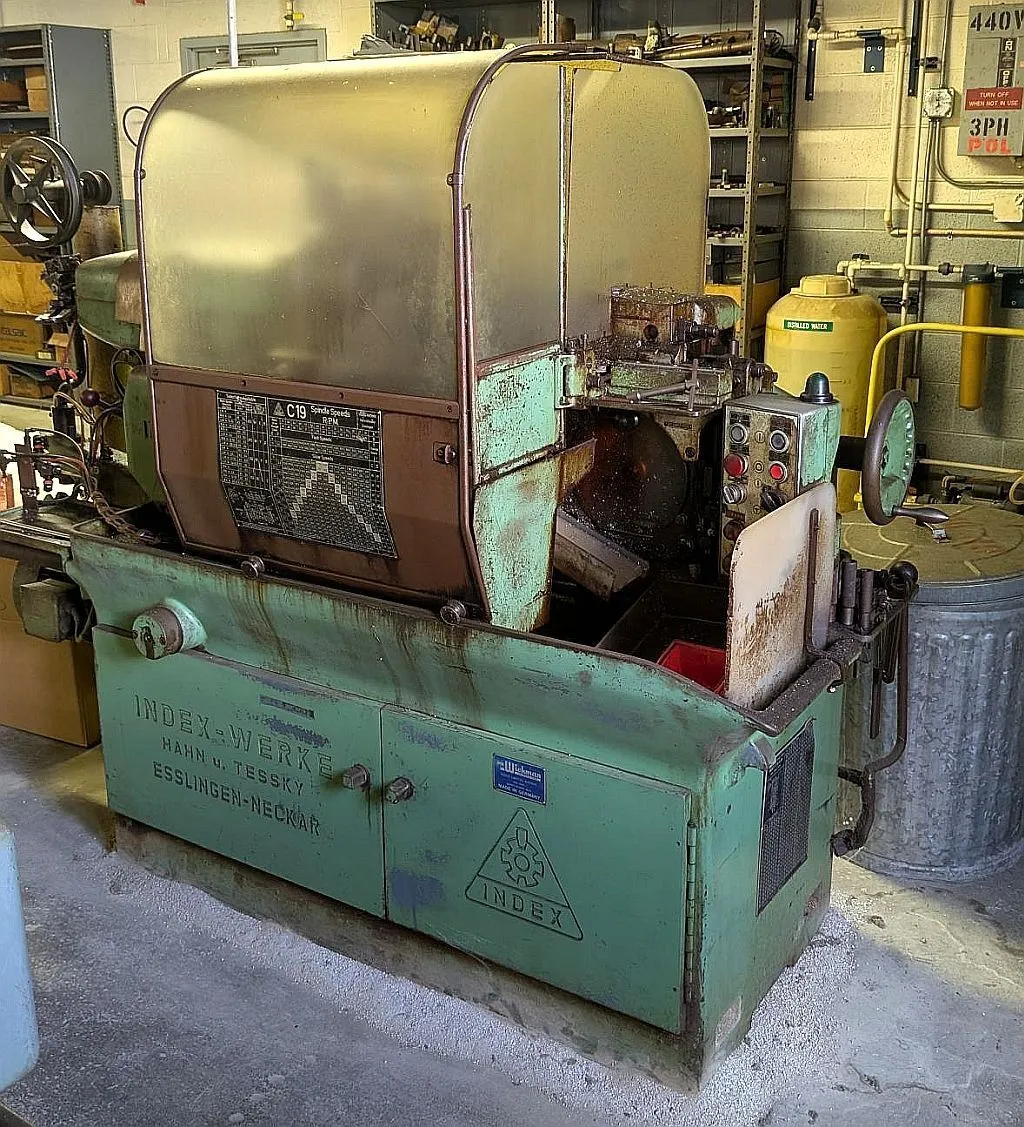

Index-Werke C19 Automatic Bar Machine
Have one to sell?
ConditionUsed
1 available
Max Turning Diameter: 7.9 inches (200 mm)
Max Turning Length: 19.7 inches (500 mm)
Bar Stock Capacity: 0.9 inches (22 mm) diameter (varies depending on the configuration)

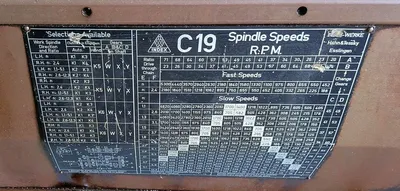

Spindle Speed Range: 40 - 4,500 RPM
Spindle Bore: 1.5 inches (38 mm)
Main Motor Power: 5 HP (3.7 kW)
Turret: Typically 6 to 8 tool stations, depending on the model configuration
Tool Type: VDI, with options for turning, drilling, and threading operations
Number of Axis: 1 (primary turning axis)
Type of Control: Mechanical cam-based control (no CNC)
Dimensions: 90.6" x 47.2" x 55.1"
Weight: Approximately 4,400 lbs (2,000 kg)
Max Turning Diameter: 7.9 inches (200 mm)
Max Turning Length: 19.7 inches (500 mm)
Bar Stock Capacity: 0.9 inches (22 mm) diameter (varies depending on the configuration)
Spindle Speed Range: 40 - 4,500 RPM
Spindle Bore: 1.5 inches (38 mm)
Main Motor Power: 5 HP (3.7 kW)
Turret: Typically 6 to 8 tool stations, depending on the model configuration
Tool Type: VDI, with options for turning, drilling, and threading operations
Number of Axis: 1 (primary turning axis)
Type of Control: Mechanical cam-based control (no CNC)
Dimensions: 90.6"x 47.2" x 55.1"
Weight: Approximately 4,400 lbs (2,000 kg)
